Flexible, Extendable and Centralized Power Distribution

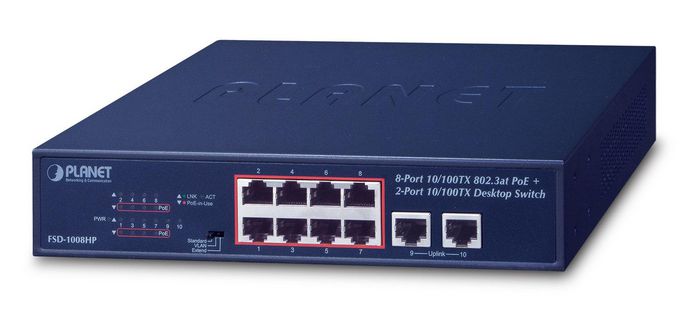

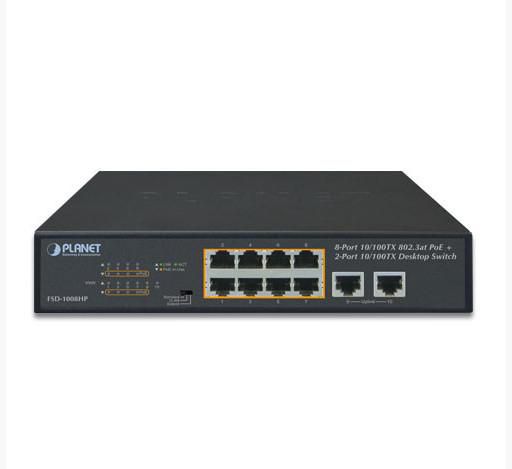

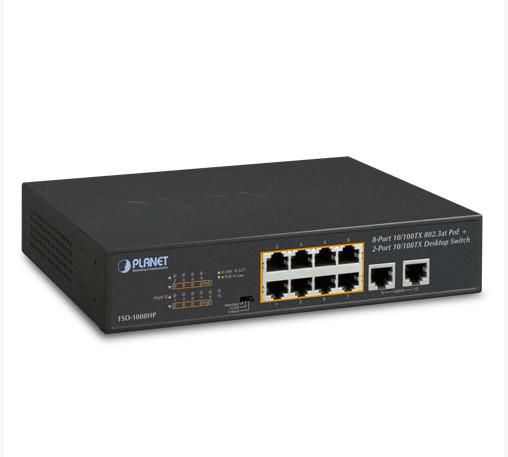

PLANET FSD-1008HP provides eight 10/100TX ports featuring 30-watt 802.3at PoE+, a total 120-watt PoE budget and extra two uplink ports to fulfill the demand of sufficient PoE power for HD IP surveillance and Wi-Fi system in a small-scale but high-performance network. With the same desktop-sized and compact metal housing, it makes the placement of the unit convenient and provides a quick and easy PoE PDs deployment with power feeding.

Ethernet Data Transmit Distance Extension
The built-in solid DIP switch provides "Standard", "VLAN" and "Extend" operation modes. The FSD-1008HP operates as a normal IEEE 802.3at PoE+ switch in the "Standard" operation mode.
The "VLAN" operation mode features with port-based VLAN function that helps to prevent the IP camera’s multicast or broadcast storm from influencing each other.
In the "Extend" operation mode, the FSD-1008HP operates on a per-port basis at 10Mbps duplex operation but supports 30-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the FSD-1008HP provides an additional solution for 802.3at PoE+ distance extension, thus saving the cost of Ethernet cable installation. Furthermore, its VLAN isolation function isolates each port so as to prevent broadcast storm and defend DHCP spoofing in the “Extend” operation mode.

Environment-friendly, Fanless Design for Silent Operation
The FSD-1008HP comes with a desktop-sized, compact metal housing, making the placement of the unit convenient. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Moreover, the FSD-1008HP is able to operate reliably and stably in any environment without affecting its performance. The deployment of PoE PDs with constant power feeding can be easily and quickly done.

Easy Cable Connection
With data and Power over Ethernet from one unit, the FSD-1008HP reduces cabling requirements and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power can lower the installation costs, simplify the installation effort and eliminate the need for electricians or extension cords. With 8 PoE interfaces, the FSD-1008HP is ideal for small businesses and workgroups requiring the deployment of the PoE facility including wireless access points, IP-based surveillance camera and IP phones in any places with ease, efficiency and cost-effectiveness.

• 10-port 10/100BASE-TX Fast Ethernet RJ45 copper
• 8-port IEEE 802.3at PoE+ Injector (Port-1 to Port-8)
• Supports PoE power up to 30.8 watts for each PoE port
• 120-watt PoE budget
• Auto detects powered device (PD)
• Hardware-based 10/100Mbps auto-negotiation and auto MDI/MDI-X
• IEEE 802.1Q VLAN transparency
• Fanless design
