Gigabit Networking with Energy Savings

In line with the energy-saving trend worldwide, PLANET has delivered a new-generation Gigabit Networking PoE PD Media Converter, GT-805A-PD. The GT-805A-PD incorporates the following advanced concepts:

- IEEE 802.3af/at/bt 48V~54V DC in-line power input
- Easy to install and use
- Compact-sized design
- Simple troubleshooting

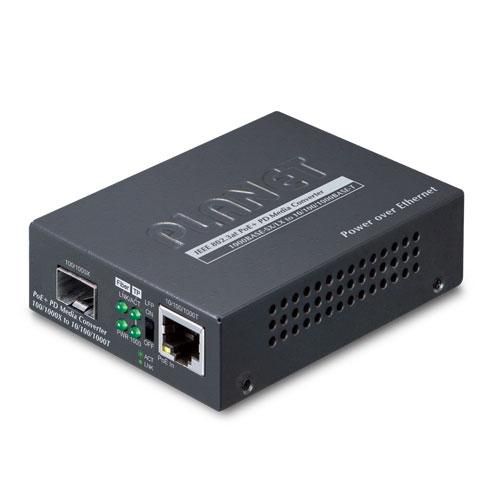

PLANET GT-805A-PD is an 802.3at PoE+ PD 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter equipped with a convenient and cost-effective 802.3af/at/bt PoE power injection solution. It is quite different from the earlier version of PLANET media converter family that needs to obtain power from DC power adapter; it can power on via various IEEE 802.3at/bt PoE PSE equipment.


Two Kinds of Power Input Designs for Flexible Installation

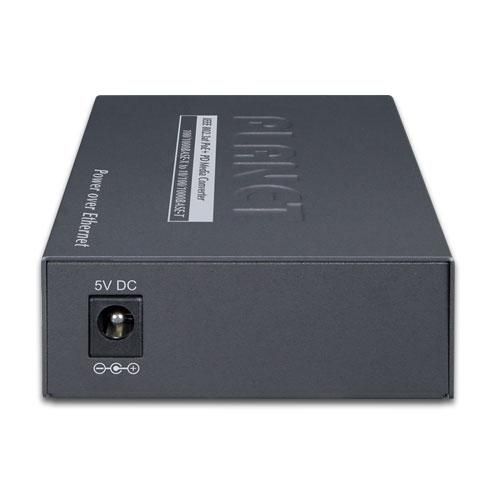

The GT-805A-PD features two kinds of power input system designs (IEEE 802.3af/at/bt 48V~54V DC in-line power and optional 5V DC input) incorporated into customer’s network to enhance system reliability and uptime. However, that has to depend on the kind of Ethernet environment that is needed, be it the GT-805A-PD operated as a PoE PD media converter or standard Gigabit media converter with optional 5V DC input.


High Performance and Steady Network Communications Guaranteed Despite Distance Extension

The GT-805A-PD extends communication distance with high Gigabit performance via SFP slot and SFP transceiver. The GT-805A-PD provides media conversion between 10/100/1000BASE-T and 1000BASE-SX/LX interfaces for various fiber optic applications. The available SFP LC fiber interfaces are shown below:


Enhanced Smart Management Features

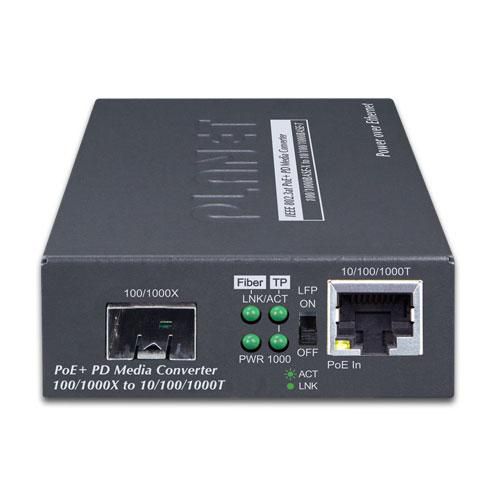

The GT-805A-PD provides auto MDI/MDI-X on its TP port and the DIP switch to configure the Link Fault Passthrough function (LFP). The LFP function includes the Link Loss Carry Forward (LLCF)/Link Loss Return (LLR). LLCF/LLR can immediately alert administrators of the problem of the link media and provide efficient solution to monitoring the network. The DIP switch can disable or enable the LFP function.

- LLCF means when a device connected to the converter and the TP line loses the link, the converter’s fiber will disconnect the link of transmission.
- LLR (Link Loss Return) means when a device connected to the converter and the fiber line loses the link, the converter’s fiber will disconnect the link of transmission.

Both can immediately alert administrators of the problem of the link media and provide efficient solution to monitoring the network.


Can be Easily Deployed as Standalone Unit or with Chassis

The GT-805A-PD allows two types of the segment to connect easily. The GT-805A-PD can be used as a standalone unit when powered by its DC adapter or used as a slide-in module to PLANET 19-inch 7-/15-slot media converter chassis (MC-700/MC-1500/MC-1500R/MC-1500R48). These media chassis can assist in producing the power for the GT-805A-PD to maintain the fiber-optic network at one location. As the Gigabit media converter fully complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T and IEEE 802.3z 1000BASE-LX/SX, the Gigabit media converter installation is quite quick and easy with its Plug and Play feature. The GT-805A-PD also supports flow control and back pressure in half-duplex mode to eliminate packet loss.

Website: .tw/en/product/gt-805a-pd

• Physical Port
• Media conversion between 10/100/1000BASE-T and 100BASE-FX/1000BASE-SX/LX
• TP Port supports 802.3af/at/bt PoE 48V-54V DC in-line-power
• TP port supports 10/100/1000BASE-T auto-negotiation and auto-MDI/MDI-X
• Fiber media allows
• Multi-mode fiber using LC connector
• Single-mode fiber using LC connector
• 100BASE-FX/1000BASE-SX/LX: 50/125μm/62.5/125μm multi-mode fiber cable or 9/125μm single-mode cable provides a distance depending on SFP module
• 1000BASE-T: 2-pair Cat. 5/5e/6 UTP cable, up to 100 meters
• Power over Ethernet
• Compatible with IEEE 802.3bt Power over Ethernet plus plus end-span + mid-span PSE
• Compatible with IEEE 802.3at Power over Ethernet plus end-span/mid-span PSE
• Backward compatible with IEEE 802.3af Power over Ethernet
• Standard
• Complies with IEEE 802.3 10BASE-T
• Complies with IEEE 802.3u 100BASE-TX/100BASE-FX
• Complies with IEEE 802.3ab 1000BASE-T
• Complies with IEEE 802.3z 1000BASE-SX/LX
• IEEE 802.3x full-duplex and half-duplex back pressure flow control to eliminate packet loss
• IEEE 802.3af Power over Ethernet
• IEEE 802.3at Power over Ethernet Plus
• IEEE 802.3bt 4-pair Power over Ethernet Plus Plus (Type 3)
• IEEE 802.3bt 4-pair Power over Ethernet Plus Plus (Type 4)
• Layer 2 Features
• Store-and-Forward mechanism
• Non-blocking full wire-speed forwarding rate
• IEEE 802.1Q Tag VLAN transparent, multicast pass through
• 9K jumbo frame
• IEEE 802.3x full-duplex and half-duplex back pressure flow control to eliminate the loss of packets
• Mechanical
• DIP switch for LFP function (Disable/Enable) setting
• LED indicators for easy network diagnostics
• Wall mounting or DIN-rail installation
• Compact in size, easy installation
• Two power input designs (IEEE 802.3af/at/bt 48V~54V DC in-line power or optional 5V DC input)
• Compact size for working with PLANET MC family media chassis (MC-700/MC-1500/MC-1500R/MC-1500R48)
