Supreme Managed Media Converter for Robust Environment

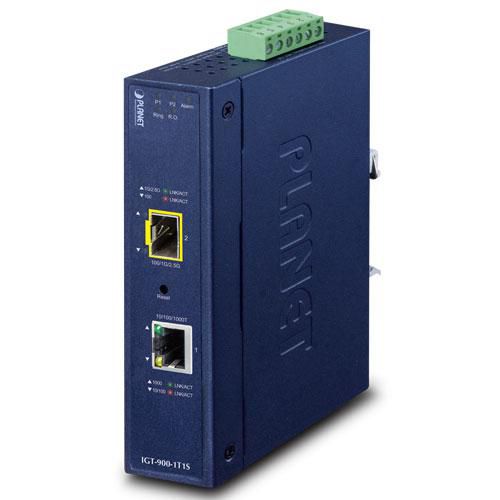

PLANET IGT-900-1T1S, a fully-managed Gigabit Media Converter for harsh environments, features one 10/100/1000Mbps copper port, one 100/1000/2500X SFP port and redundant power system in an IP30 rugged but compact-sized case. The IGT-900-1T1S can be installed in any difficult environment as it can operate stably under the temperature range from -40 to 75 degrees C. With such a slim enclosure, it does not need a big space to install. The switch features user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions and Layer 3 static routing capability. It allows either DIN-rail or wall mounting for efficient use of cabinet space. With SFP fiber slot, it can be flexibly applied to extend the connection distance.


Enhanced Smart Management Features

The IGT-900-1T1S provides auto MDI/MDI-X on its TP port and built-in Link Fault Pass-through function (LFP). The LFP function includes Link Loss Carry Forward (LLCF) and Link Loss Return (LLR), both of which can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the net.

- LLCF means when a device connected to the converter and the TP line loses the link, the converter’s fiber port will disconnect the link of transmission.
- LLR means when a device connected to the converter and the fiber line loses the link, the converter’s fiber port will disconnect the link of transmission.
Therefore, the IGT-900-1T1S greatly supports the administrators to manage the network efficiently.


Network with Cybersecurity Helps Minimize Security Risks

The IGT-900-Series comes with enhanced cybersecurity to fend off cyberthreats and cyberattacks. It supports SSHv2, TLSv1.2 and SNMPv3 protocols to provide strong protection against advanced threats. Served as a key point to transmit data to customer's critical equipment in a business network, the cybersecurity feature of the IGT-900-Series protects the management and enhances the security of the mission-critical network without any extra deployment cost and effort.


Redundant Ring, Fast Recovery for Critical Network Applications

The IGT-900-Series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network, the recovery time of data link can be as fast as 10ms.


SMTP/SNMP Trap Event Alert

The IGT-900-Series provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.


Effective Alarm Alert for Better Protection

The IGT-900-Series supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource.


Robust Layer 2 Features

The IGT-900-Series can be programmed for advanced Layer 2 switch management functions such as dynamic port link aggregation, 802.1Q tagged VLAN, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control, IGMP snooping and MLD snooping. Via the aggregation of supporting ports, the IGT-900-Series allows the operation of a high-speed trunk group that comes with multiple ports and supports fail-over as well.


Efficient Management

For efficient management, the IGT-900-Series is equipped with CLI, Web GUI and SNMP management interfaces.

　With the built-in Web-based management interface, it offers an easy-to-use, platform-independent management and configuration facility.

　For text-based management, it can be accessed via Telnet/SSH.

　For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.


Powerful Network Security

The IGT-900-Series offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.


Advanced IP Network Protection

• Physical Port
• 1 10/100/1000BASE-T Gigabit Ethernet RJ45 port
• 1 100/1000/2500BASE-X SFP port for SFP type auto detection
• Industrial Protocol
• Modbus TCP for real-time monitoring in the SCADA system
• IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode
• Industrial Case and Installation
• IP30 metal case
• DIN-rail or wall-mount design
• 24V AC, 9~48V DC, redundant power with reverse polarity protection
• Supports 6KV DC Ethernet ESD protection
• Supports -40 to 75 degrees C operating temperature
• Layer 3 IP Routing Features
• Supports maximum 32 static routes and route summarization
• Routing interface provides per VLAN routing mode
• Layer 2 Features
• Storm Control support
• Broadcast/Multicast/Unicast
• Supports VLAN
• IEEE 802.1Q tagged VLAN
• Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
• Private VLAN Edge (PVE)
• Port Isolation
• MAC-based VLAN
• IP Subnet-based VLAN
• Protocol-based VLAN
• VLAN Translation
• Voice VLAN
• GVRP
• Supports Spanning Tree Protocol
• IEEE 802.1D Spanning Tree Protocol (STP)
• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
• BPDU Filtering/BPDU Guard
• Provides port mirror (many-to-1)
• Port mirroring to monitor the incoming or outgoing traffic on a particular port
• Loop protection to avoid broadcast loops
• Supports ERPS (Ethernet Ring Protection Switching)
• Compatible with Cisco Uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
• Link Layer Discovery Protocol (LLDP)
• IEEE 802.3ah OAM
• Link Fault Passthrough (LFP)
• The IGT-900-1T1S supports one group (TP Port 1 and SFP Port 2) LFP function.
• The IGT-900-2T2S supports two groups (TP Port 1 and SFP Port 3, TP Port 2 and SFP Port 4) LFP function.
• Quality of Service
• Ingress Shaper and Egress Rate Limit per port bandwidth control
• 8 priority queues on all switch ports
• Traffic classification
• IEEE 802.1p CoS
• IP TOS/DSCP/IP precedence
• IP TCP/UDP port number
• Typical network application
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Supports QoS and In/Out bandwidth control on each port
• Traffic-policing on the switch port
• DSCP remarking
• Security
• Authentication
• IEEE 802.1x port-based/MAC-based network access authentication
• Built-in RADIUS client to co-operate with the RADIUS servers
• TACACS+ login users access authentication
• RADIUS / TACACS+ users access authentication
• Guest VLAN assigns clients to a restricted VLAN with limited services
• Access Control List
• IP-based Access Control List (ACL)
• MAC-based Access Control List
• Source MAC/IP address binding
• DHCP Snooping to filter un-trusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• IP address access management to prevent unauthorized intruder
