PoE Solution for Breaking RJ45 100m Limitation

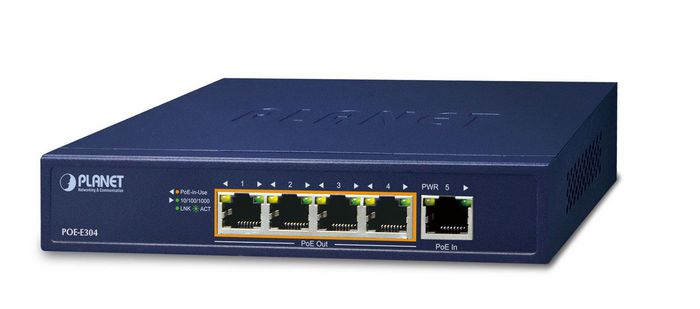

PLANET POE-E304 is a 1-port 95W 802.3bt PoE++ to 4-port 802.3af/at Gigabit PoE Extender designed especially for point to multipoint PoE applications. The POE-E304 can obtain a maximum of 95-watt PoE power from IEEE 802.3bt PoE input port and supplies a maximum of 65-watt PoE power budget to four PoE output ports, extending the simultaneous transmission distance of both the Gigabit Ethernet Data and IEEE 802.3at/802.3af Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to up to 200 meters. Thus, the POE-E304 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.





Plug and Play Installation

The POE-E304 is quite easy to be installed by simple Plug and Play. It is used between a power source equipment (PSE) and a powered device (PD). The POE-E304 injects power to the PD without affecting the data transmission performance. The POE-E304 offers a cost-effective and quick solution to doubling the standard range of PoE from 100 to 200 meters. The POE-304 is designed in a compact box containing five RJ45 ports, of which one "PoE IN" port functions as PoE (Data and Power) input and the other four "PoE OUT" ports function as PoE output. The "PoE OUT" port is also the power injector that transmits DC voltage over the Cat5/5e/6 cable and transfers data and power simultaneously between the PSE and PD.

• Physical Port
• 5 10/100/1000BASE-T Gigabit RJ45 ports
• 1-port data + power input
• 4-port data + power output
• Power over Ethernet
• Complies with IEEE 802.3bt PoE++ PD
• Supports PoE input power up to 95 watts
• Complies with IEEE 802.3af/IEEE 802.3at PoE+/end-span PSE
• Up to 4 IEEE 802.3af/802.3at devices powered
• Supports PoE power up to 32 watts for each PoE port
• Auto detects powered device (PD)
• Extends the range of PoE to an additional 100 meters (328ft.)
• Forwards both Ethernet data and PoE power to remote device
• Layer 2 Features
• Hardware-based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
• Integrates address look-up engine, supporting 2K absolute MAC addresses
• 9K jumbo packet support
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• IEEE 802.3x flow control for full duplex operation and backpressure for half duplex operation
• Automatic address learning and address aging
• Case and Installation
• No external power cable installation required
• Made of metal, desktop size design
• Wall-mountable, Plug-and-Play installation
• 0 ~ 50 degrees C operating temperature
