Powerful 5G NR Industrial Outdoor Network Solution

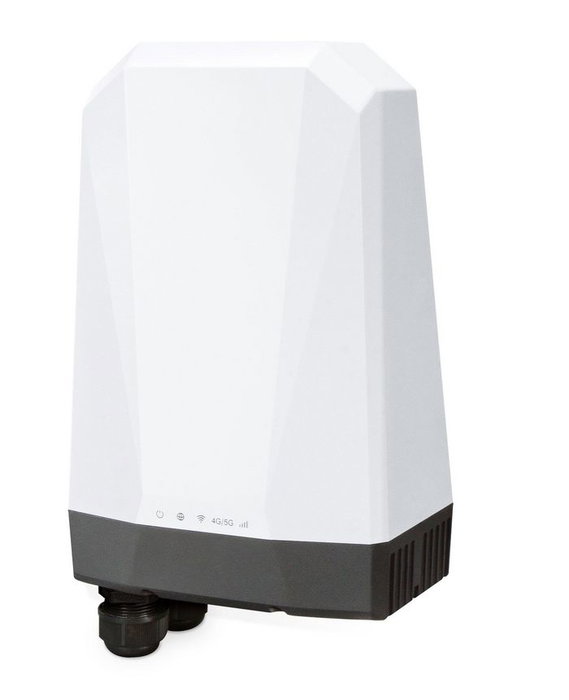

PLANET has launched the FWA-2100-NR Outdoor Gateway, a groundbreaking connectivity solution. Harnessing advanced 5G NR technology and a unique dual-cellular WAN, it delivers lightning-fast and stable network access in any environment. Dual Nano SIM slots offer carrier flexibility, and with an IP68 rating, it excels in durability for diverse settings, including outdoor use. Whether in remote rural areas, bustling construction sites, or suburban homes, the WAW Gateway shines. Its high-speed Gigabit Ethernet LAN port ensures superior network performance. Embrace a new era of connectivity with WAW Gateway that brings to you stability, speed, and flexibility at your fingertips, especially tailored for outdoor environments.


Automatic Failover between 5G NR and Dual WAN

The FWA-2100-NR, featuring a dual nano SIM slot for 5G NR, ensures continuous Internet access through failover capabilities between two distinct 5G signals. With the flexibility to define priority for the dual 5G SIM connections, the FWA-2100-NR provides flexible connectivity options. In case of a primary WAN interface failure, the secondary interface promptly restores the connection, ensuring seamless and uninterrupted connectivity.


Ultra-Fast 4G/5G Network*

The FWA-2100-NR supports 5G NR DL speed of 2.4 Gbps higher than 4G LTE DL speed of 1 Gbps. The wide spectrum bandwidth accelerates internet speeds and reduces network latency for premium and time-sensitive connectivity services. The FWA-2100-NR also supports multi-band connectivity including LTE FDD/TDD, WCDMA and GSM for a wide range of applications.

*The real 5G NR/4G LTE data rate is dependent on local service provider.


Dual SIM Design

To enhance reliability, the FWA-2100-NR is equipped with dual nano SIM slots that support failover and roaming over to ensure uninterrupted connectivity for mission-critical cellular communications. It provides a more flexible and easier way for users to create an instant network sharing service via 5G-NR in public places like transportations, outdoor events, etc.


GPS Included

The FWA-2100-NR is equipped with global positioning system feature. It adopts 5G-NR technology to incorporate multiple global navigation systems (GPS/GLONASS/BeiDou/Galileo/QZSS). It helps to position location of cellular gateway based on a network of satellites that continuously transmits necessary data. More signals transmitted from more satellites can triangulate its location on the ground, meaning any location can be easily tracked.


Ideal High-Availability VPN Security Router Solution for Industrial Environment

The FWA-2100-NR provides complete data security and privacy for accessing and exchanging the most sensitive data, built-in IPSec VPN function with DES/3DES/AES encryption and MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication, and GRE, SSL, PPTP and L2TP server mechanism. The full VPN capability in the FWA-2100-NR makes the connection secure, more flexible, and more capable.


Wi-Fi Deployments and Authentication with Simplified Management

The FWA-2100-NR also provides a built-in AP Controller, Captive Portal, RADIUS and a DHCP server to facilitate small and medium businesses to deploy secure employee and guest access services without any additional server. The FWA-2100-NR can offer a secure Wi-Fi network with easy installation for your business.


Centralized Remote Control of Managed APs

The FWA-2100-NR provides centralized management of PLANET Smart AP series via a user-friendly Web GUI. It's easy to configure AP for the wireless SSID, radio band and security settings. With a four-step configuration process, wireless profiles for different purposes can be simultaneously delivered to multiple APs or AP groups to minimize deployment time, effort and cost.

For example, to configure multiple Smart APs of the same model, the FWA-2100-NR allows clustering them to a managed group for unified management. According to requirements, wireless APs can be flexibly expanded or removed from a wireless AP group at any time. The AP cluster benefits bulk provision and bulk firmware upgrade through single entry point instead of having to configure settings in each of them separately.


Excellent Ability in Threat Defense

The FWA-2100-NR has built-in SPI (stateful packet inspection) firewall and DoS/DDoS attack mitigation functions to provide high efficiency and extensive protection for your network. Thus, virtual server and DMZ functions can let you set up servers in the Intranet and still provide services to the Internet users.


Cybersecurity Network Solution to Minimize Security Risks

• Highlights
• ．Global 5G NR (NSA/SA)/4G LTE network with dual Nano SIM design for cellular network redundancy
• ．Complies with IEEE 802.11n and IEEE 802.11b/g/n standards (for configuration)
• ．One 1000BASE-T Ethernet for LAN interface
• ．SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
• ．Stateful packet inspection (SPI) firewall and content filtering
• ．Blocks DoS/DDOS attack, port range forwarding
• ．High Availability, AP Controller, Captive Portal and RADIUS
• ．Planet NMS controller system and CloudViewer app supported
• ．-20 to 60 degrees C operating temperature
• Hardware
• ．1 x 10/100/1000BASE-T RJ45 LAN port, auto-negotiation, auto MDI/MDI-X
• ．2 x Nano SIM card slots
• ．1 x reset button
• Cellular Interface
• ．Supports multi-band connectivity with 5G NR (NSA/SA), LTE-FDD, LTE-TDD, and WCDMA
• ．LED indicators for connection status
• RF Interface Characteristics
• ．Features 2.4GHz (802.11b/g/n) band for configuration
• ．1T1R MIMO technology for simple wireless connection
• IP Routing Feature
• ．Static Route
• ．Dynamic Route
• ．OSPF
• Firewall Security
• ．Cybersecurity
• ．Stateful Packet Inspection (SPI) firewall
• ．Blocks DoS/DDoS attack
• ．Content Filtering
• ．MAC Filtering and IP Filtering
• ．NAT ALGs (Application Layer Gateway)
• ．Blocks SYN/ICMP Flooding
• VPN Features
• ．IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN)
• ．Max. Connection Tunnel Entries: 60 VPN tunnels
• ．Encryption methods: DES, 3DES, AES, AES-128/192/256
• ．Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512
• Networking
• ．Outbound load balancing for Ethernet WANs
• ．Auto-failover between Ethernet WANs and cellular network
• ．High Availability
• ．Captive Portal
• ．RADIUS Server/Client
• ．Static IP/PPPoE/DHCP client for WAN
• ．DHCP server/NTP client for LAN
• ．Protocols: TCP/IP, UDP, ARP, IPv4, IPv6
• ．Port forwarding, QoS, DMZ, IGMP, UPnP, SNMPv1,v2c, v3
• ．MAC address clone
• ．DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP
• Others
• ．Setup wizard
• ．Dashboard for real-time system overview
• ．Supported access by HTTP or HTTPS
• ．Auto reboot
• ．PLANET NMS System and Smart Discovery Utility for deployment management
• ．PLANET CloudViewer App for real-time monitoring
