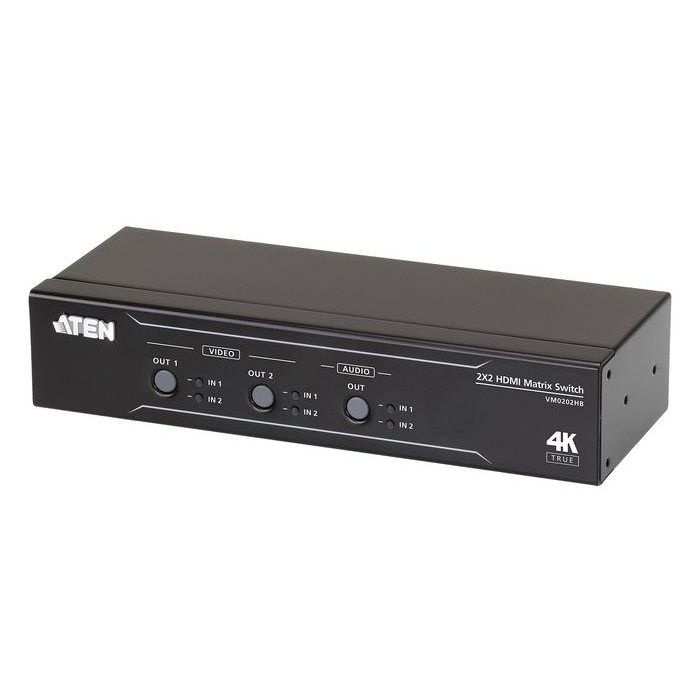

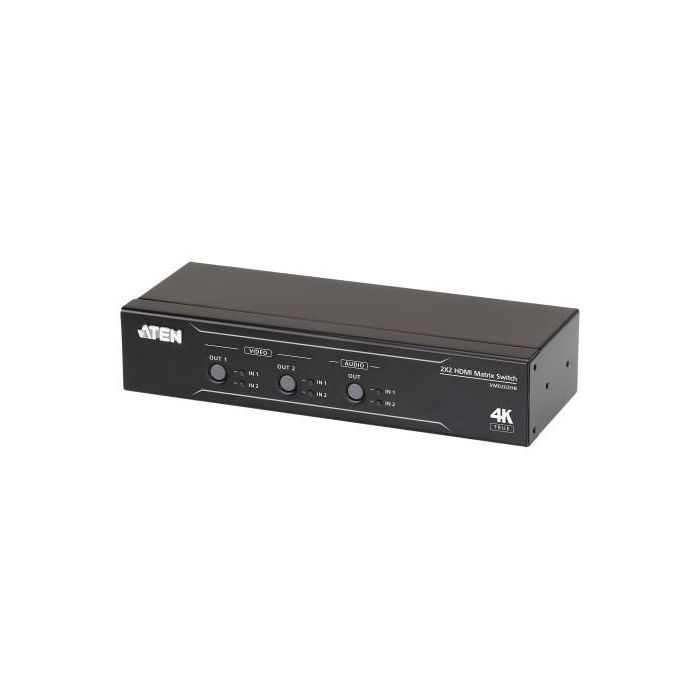

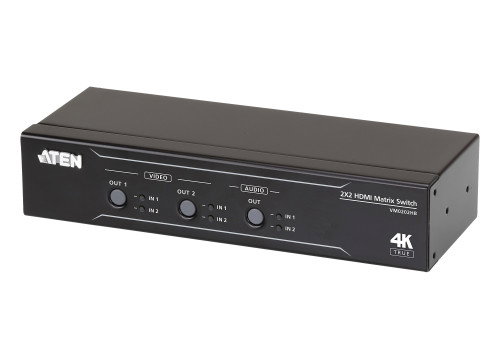

The VM0202HB is a 2 x 2 True 4K HDMI Matrix Switch featuring audio de-embedding. The VM0202HB offers an easy and affordable way to route True 4K high-definition HDMI video and audio. Supporting video resolutions up to 4096 x 2160 @ 60Hz (4:4:4), HDR, audio de-embedder, and data rates up to 18 Gbps, the VM0202HB delivers robust signal routing and swift digital video/audio switching that is perfect for most AV applications.
1x VM0202HB 2 x 2 True 4K HDMI Matrix Switch with Audio De-Embedder
1x JCNT-3301-103G 3-pole Terminal Block
1x 0AD8-1005-26M1 Power Adapter
1x 2XRT-0106G IR Remote Control
1x 2XRT-0003G IR Receiver
1x Rack Mount Kit
1x User Instructions

• Connects 2 HDMI sources to any 2 HDMI displays
• Max. Data Rate 18.0 Gbps (6.0 Gbps Per Lane)
• Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and HDR

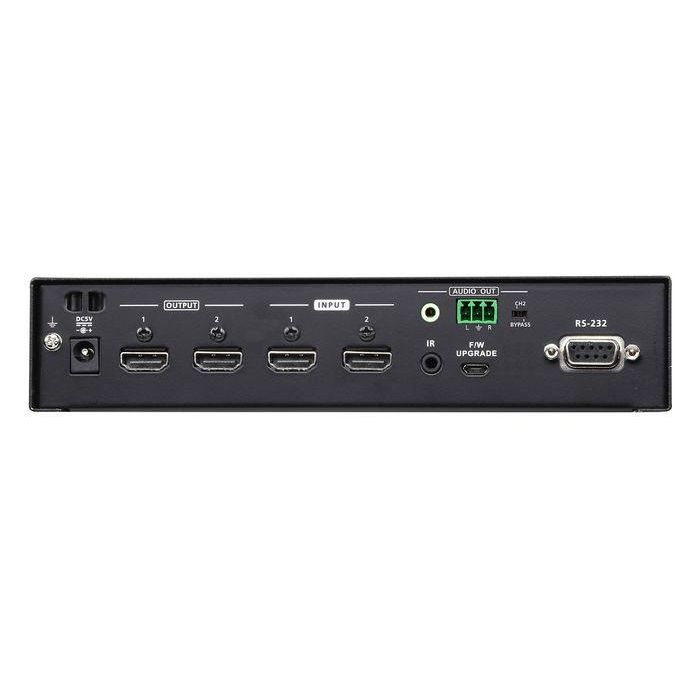

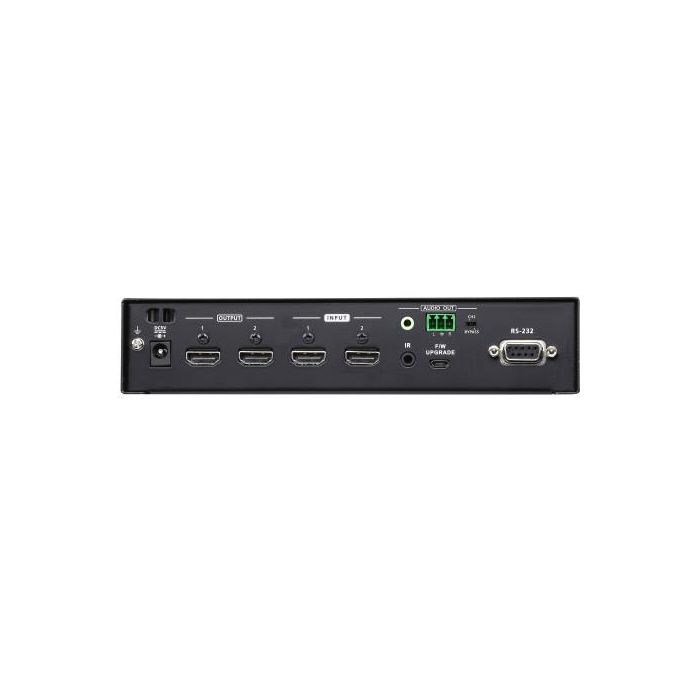

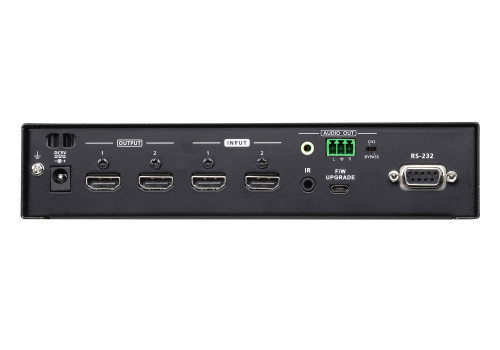

• Audio de-embedder – HDMI audio can be extracted to stereo or Lineout audio
• Supports Dolby True HD and DTS HD Master Audio
• Auto switching – automatically detects and switches to a new source once connected (Default: off)

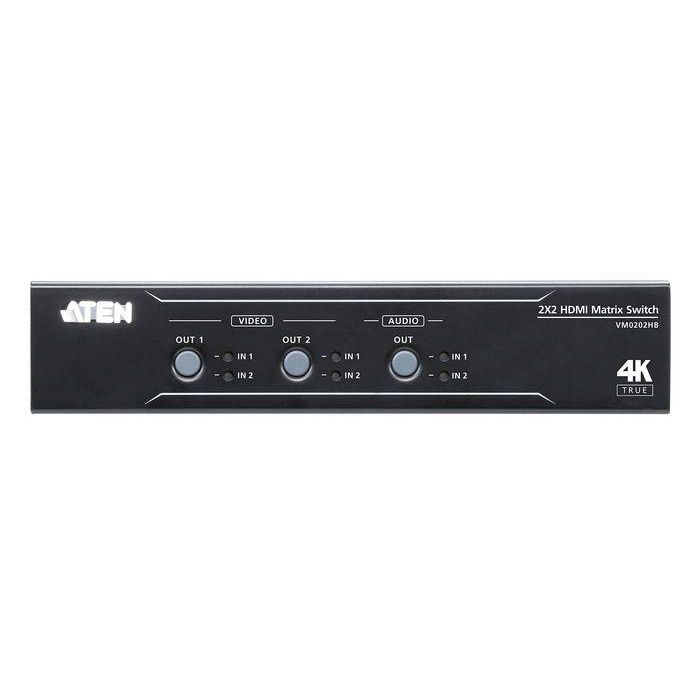

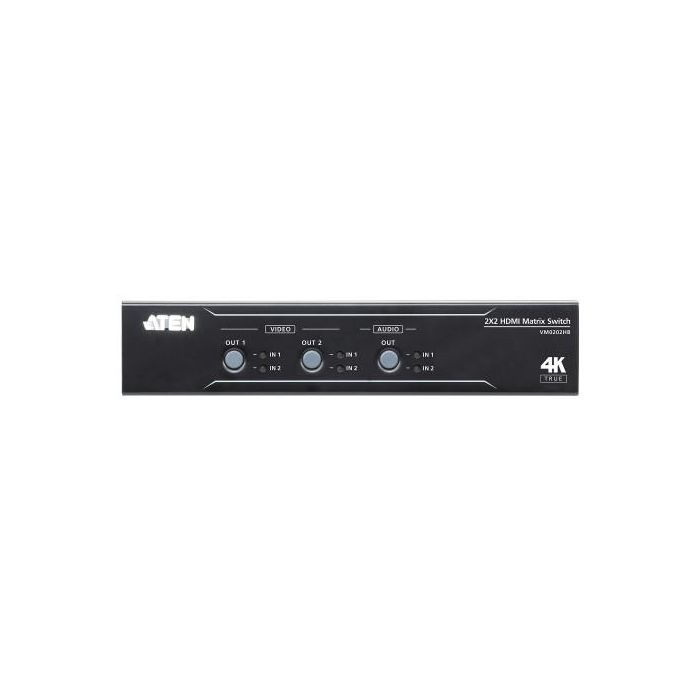

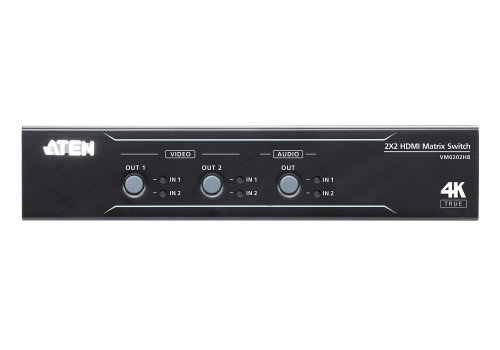

• Multiple Control Methods – system management via front-panel pushbuttons, IR remote, and RS-232 serial control
• Long-distance transmission up to 5 meters
• HDMI (3D, 4K, Deep Color); HDCP 2.2 Compatible
• Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
• EDID Expert – selects optimum EDID settings for smooth power-up,high-quality display and use of the best video resolution across different screens
• Supports ATEN’s Lock Pro HDMI cable lock for secure HDMI cable connections
• All metal casing
• Firmware upgradable
• Rack mountable
