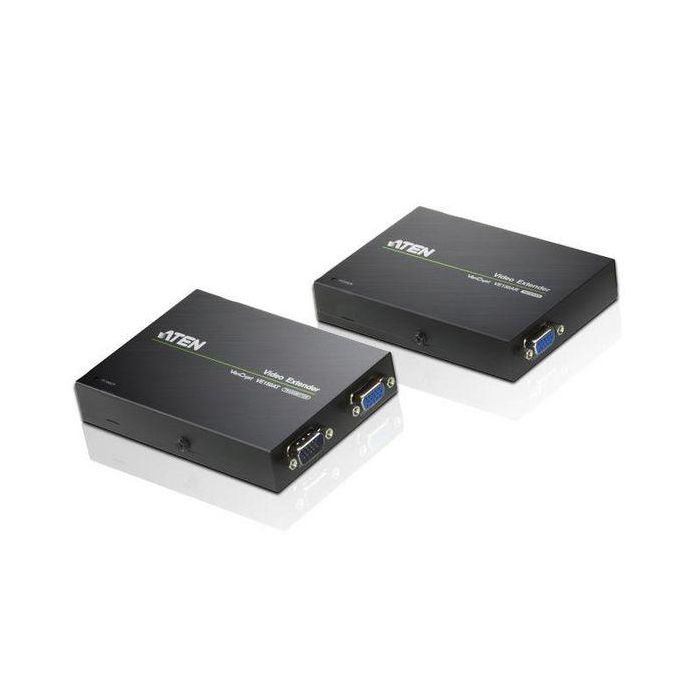

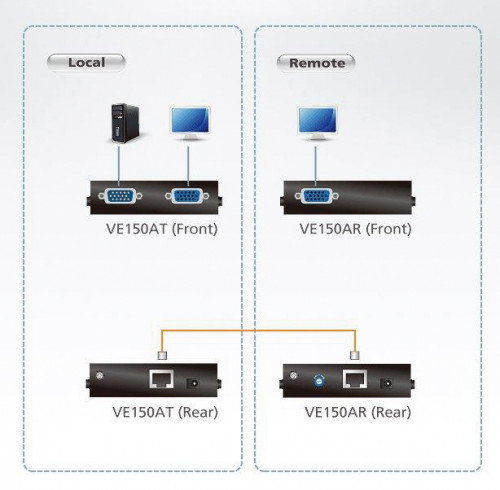

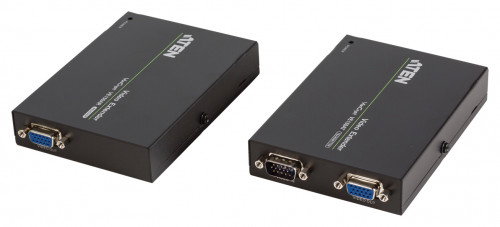

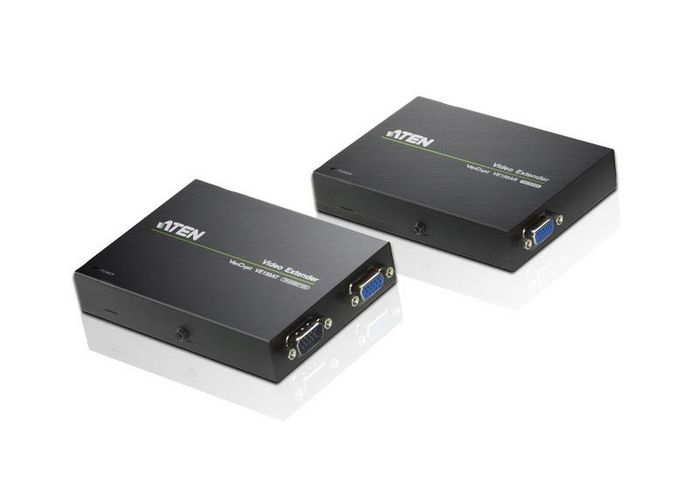

This video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5 cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location. • Uses Cat 5e cable to connect the local and remote units.
• Supports a local and a remote display.

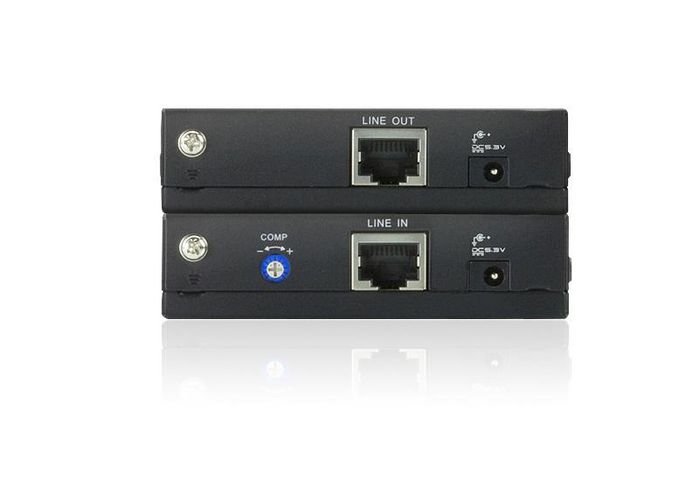

• Adjustable gain control – manually adjust signal strength to compensate for distance
• Superior video quality – up to 1920x1200 (30 m);1600x1200 (100 m); 1280x1024 (150 m)
• Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
• Supports wide screen formats
• Supports hot-plugging
• Built-in 8KV/15KV ESD protection
• Supports DDC for the local monitor
• Easy installation
• Rack Mountable

• Núm. artículo: VE150A-AT-G

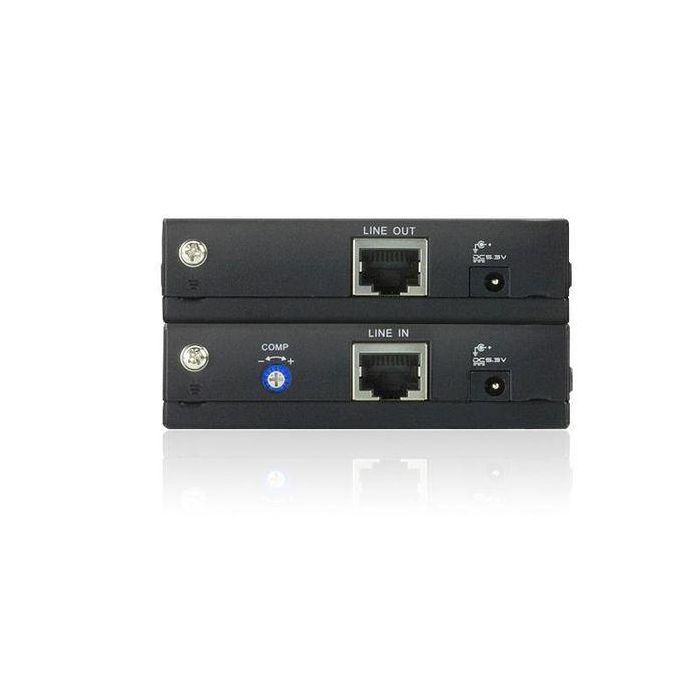

• Puertos de entrada RJ-45: 1

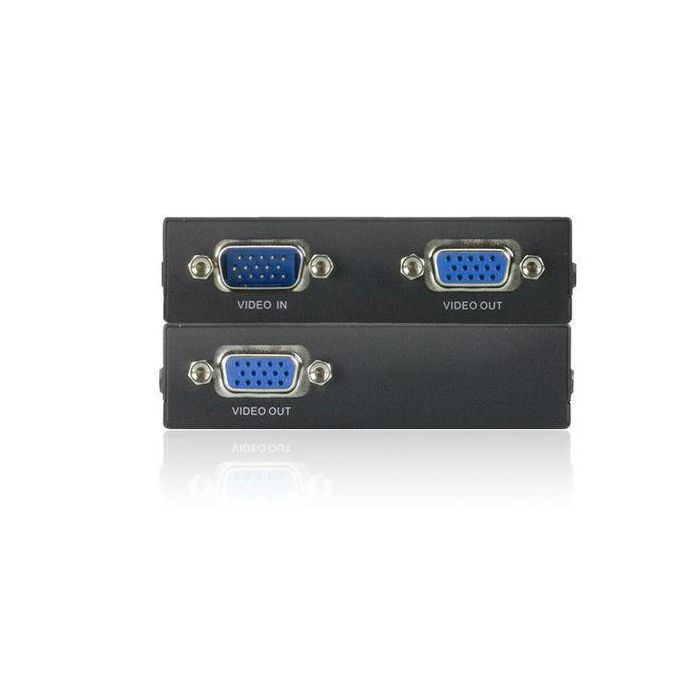

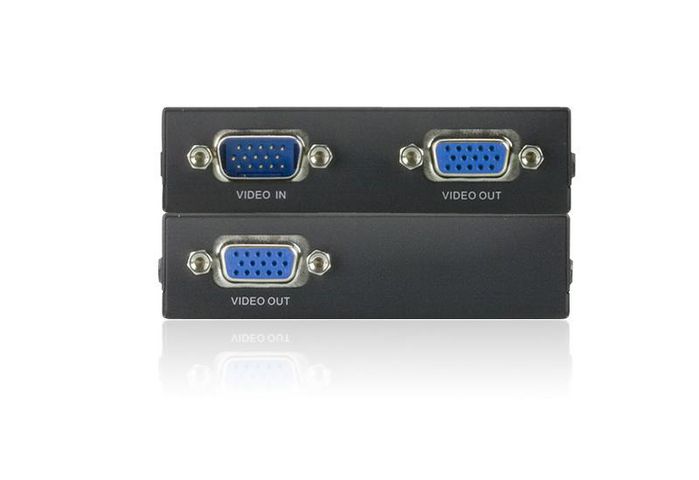

• Puertos de entrada VGA (D-Sub): 1
• DC-in jack: Si
• Puertos de salida VGA (D-Sub): 1
• Dimensiones (Ancho x Profundidad x Altura): 86 x 119 x 23 mm
• Peso: 250 g
• Voltaje de operación: 5,3 V
• Requisitos de energía: 1.2W
• Intervalo de temperatura operativa: 0 ~ 50 °C
• Humedad relativa de funcionamiento: 0 ~ 80%
• Intervalo de temperatura de almacenaje: -20 ~ 60 °C
• Tipo: Transmisor y receptor de señales AV
• Tipos de cable soportados: Cat5e
• Color del producto: Negro
• Máxima resolución: 1280 x 1024 Pixeles
• Formatos gráficos soportados: 1280 x 1024 (SXGA)
• Longitud de cable: 150 m
