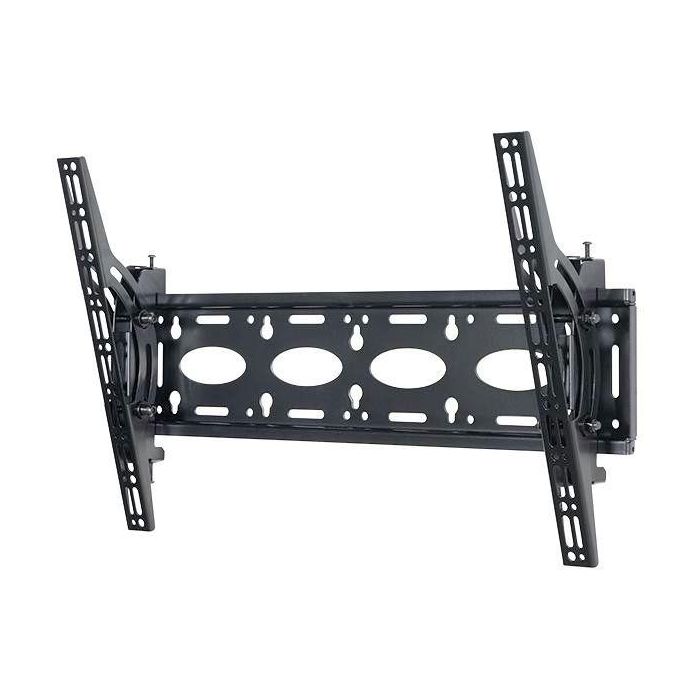

Designed to mount large to extra-large sized screens, the BT8432 is a flat screen wall mount that features a unique ‘Torsion-Tilt’ mechanism which allows easy tilt adjustment of the screen up to +/-15°. Also suitable for pole mounting using B-Tech’s Accessory Collars, the BT8432 features levelling screws to adjust the screen level post installation as well as locking screws which help prevent unauthorised removal of the screen.

Recommended screen size: up to 80" (203cm)

Max load: 70kg* (154lbs)

VESA® compatibility: up to 600 x 400

Universal fixings: up to 677 x 400mm

Tilt: +/-15°

Distance from wall (flat): 81mm (3.2")

Distance from wall (full tilt): 148mm (5.8")

*Please note the maximum load is reduced to 50kg when pole mounted

• Unique ‘Torsion-tilt’ mechanism for easy tilt adjustment
• Lateral adjustment of screen once mounted

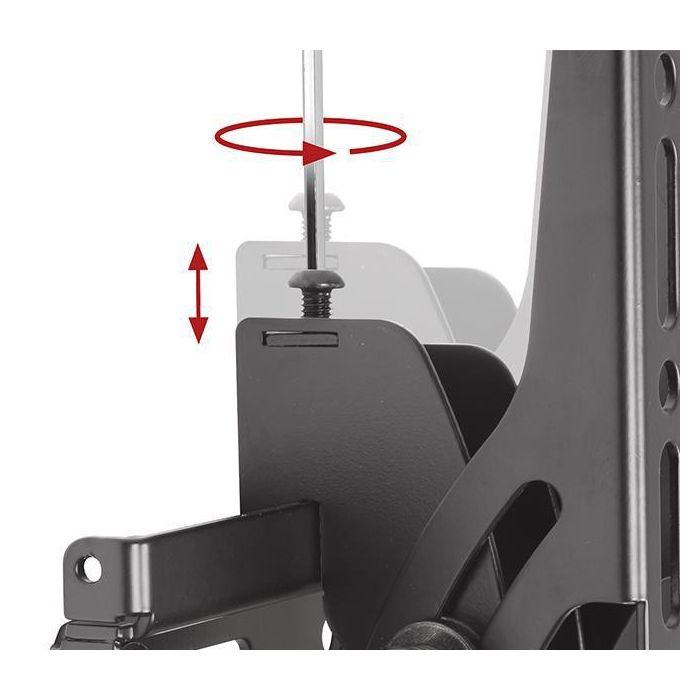

• Levelling screws allow adjustment of screen height
• Security locking screws and Allen key to prevent unauthorised screen removal
• Collar compatible ideal for pole mounting
• Simple ‘hook-on’ installation with all mounting hardware included
