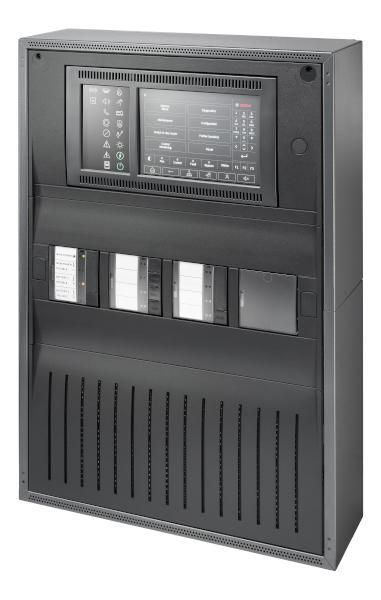

The fire panel allows mixed operation of analog addressable and conventional technology. It supports connecting periphery in either stub or loop topologies. Analog addressable fire detectors, manual call points, signaling devices, inputs and outputs are identified and managed by the fire panel as single elements. As required by the building structure the peripherals are grouped software wise in logical zones. The compact modular fire panel comes as a kit in a housing. The functional modules can be plugged onto the rail inside the housing. The rail provides power and internal communication to the functional modules.
A wide range of functional modules is available providing different connections and functions: addressable loops, conventional zones, inputs and outputs as well as interfaces to various devices. The fire alarm panel can be equipped with six functional modules of which a maximum of four can be analog addressable loop modules. This makes the fire panel suitable for small to medium size applications.

• Integrated Ethernet switch for networking and interfaces to remote services, building management and voice alarm systems
• Variety of topologies based on high-performance CAN as well as Ethernet bus
• Panel controller with high resolution 7’’ display, user-friendly interface and short user guide in 24 national languages
• Evacuation button and evacuation zone monitoring
• Installation and auto-detection of functional modules by simply plugging them into the panel rail
