Quick and safe wire terminations without any special tool

- 360° shield contact
- Suitable for field installation (tool free assembly)
- Multi-design - suitable for distribution panel and junction box mounting
- Cat. 6A with LSA insulation-displacement connector

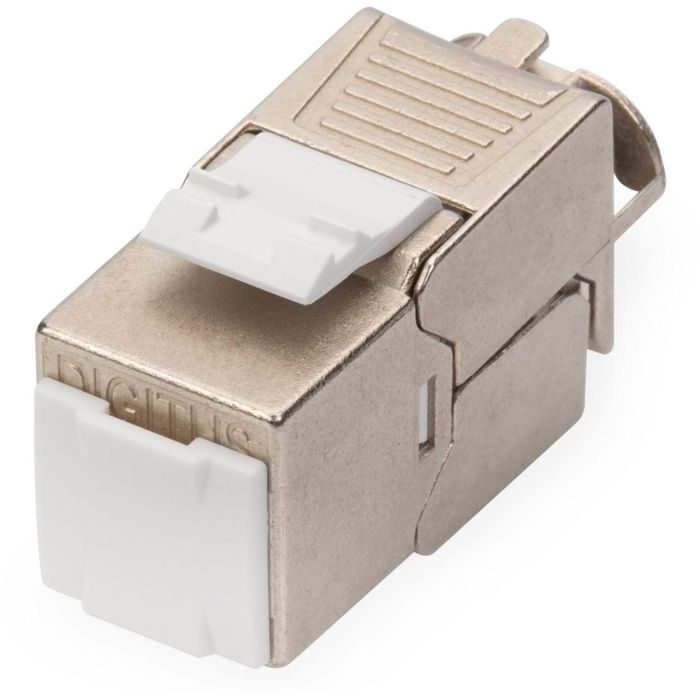

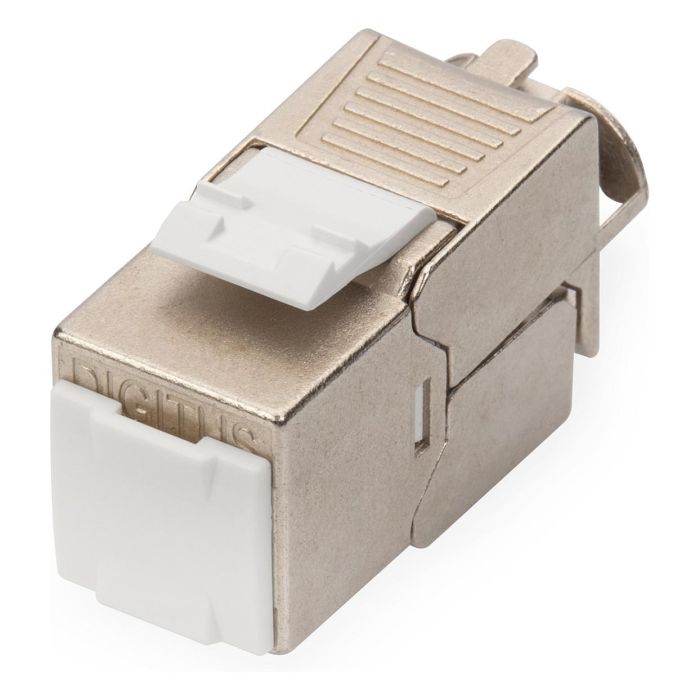

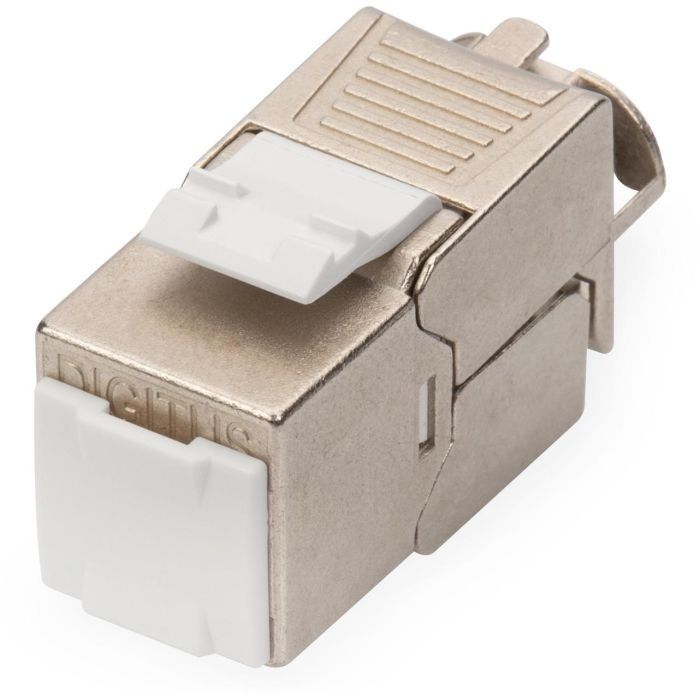

- Dust protection cap for RJ45 jack
- GHMT certified
- Supported PoE-Standards: IEEE 802.3 af/at/bt (PoE, PoE+ & 4PPoE)

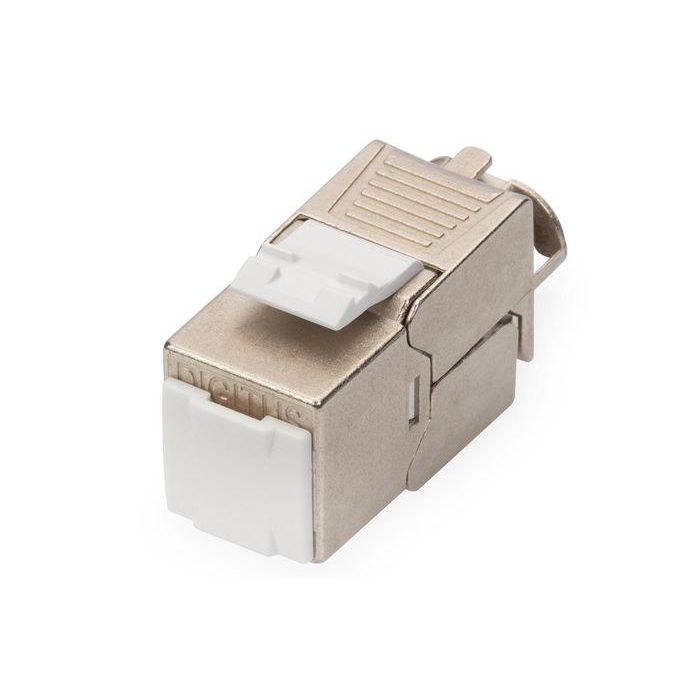

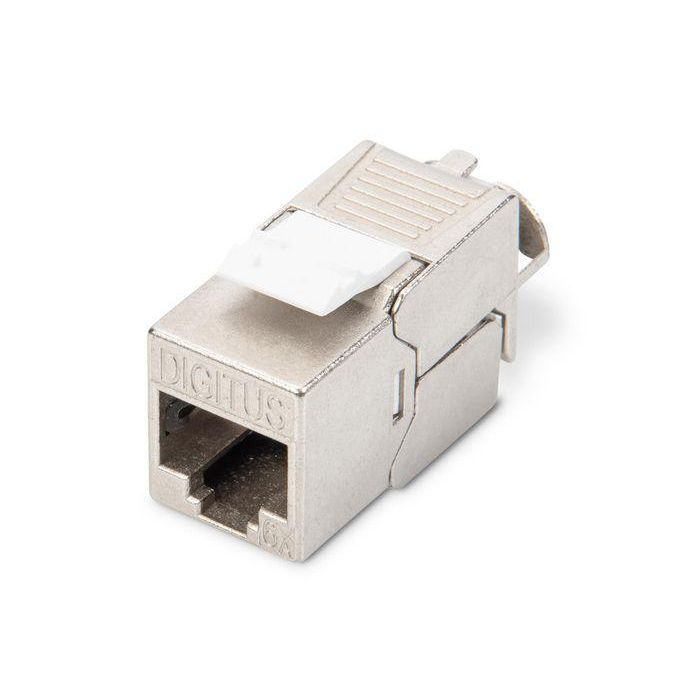

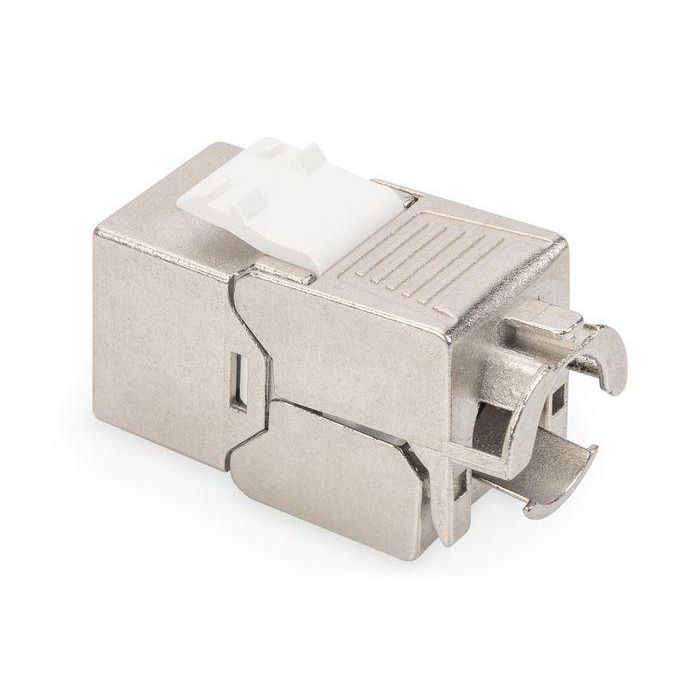

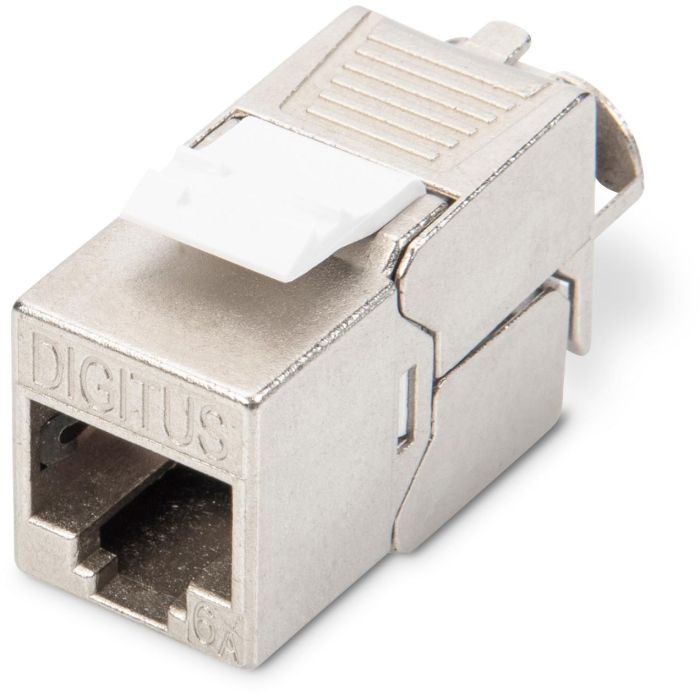

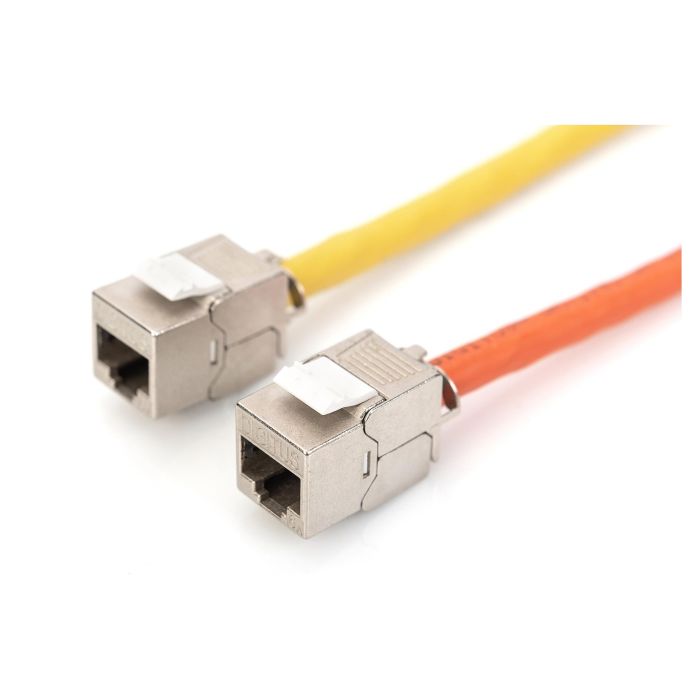

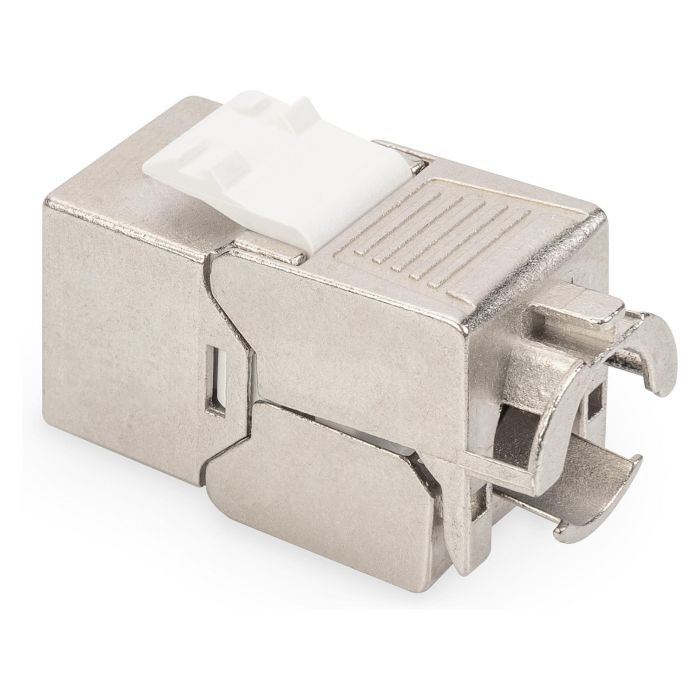

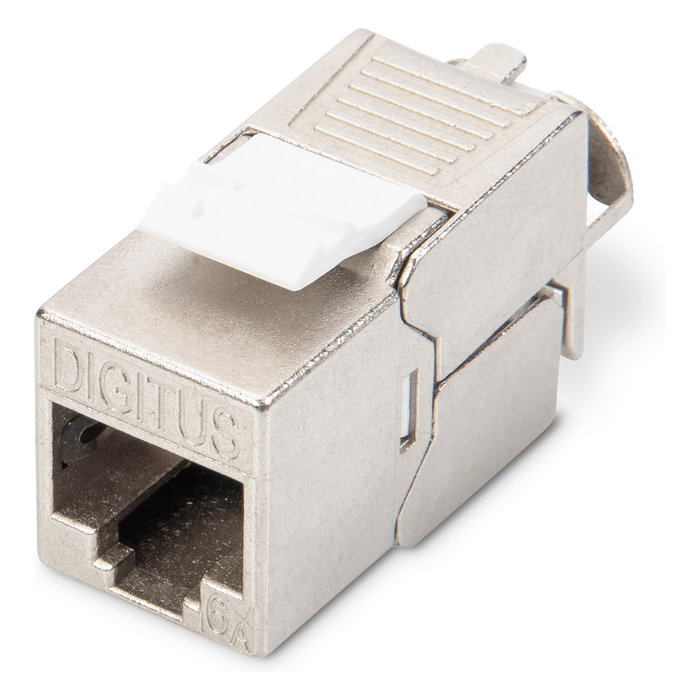

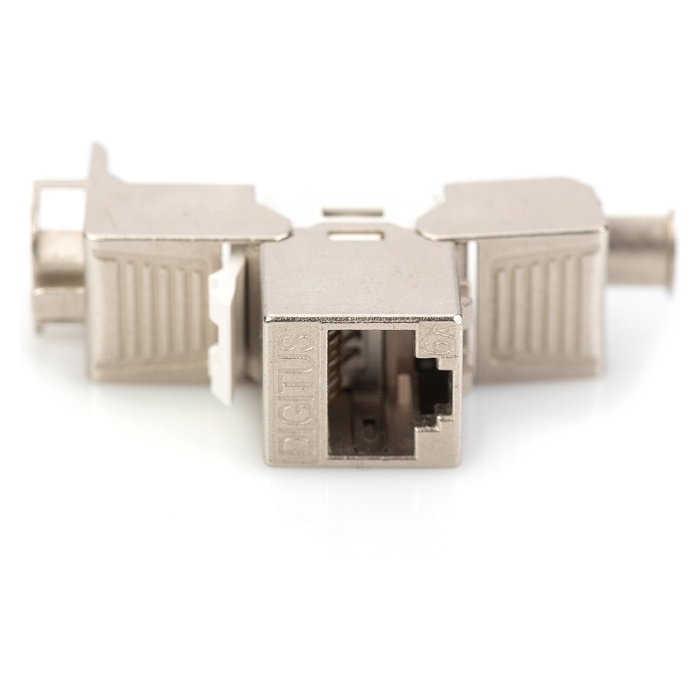

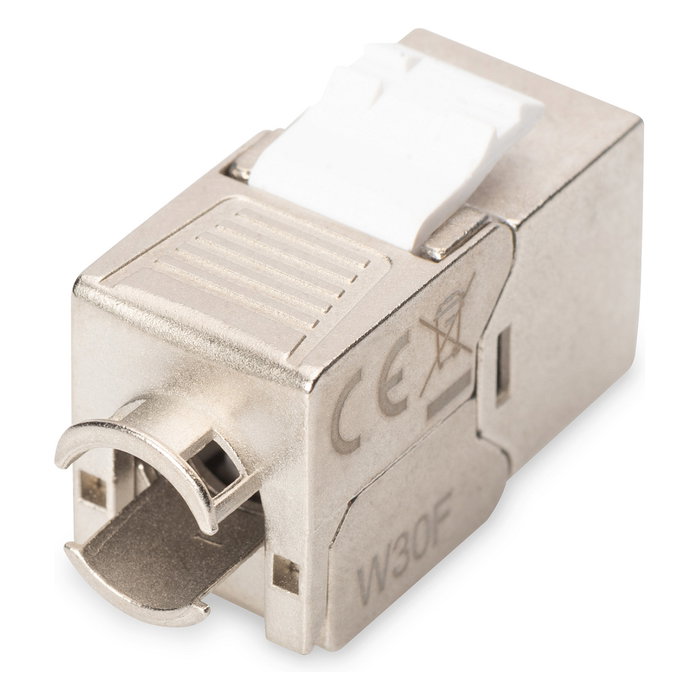

The shielded cat. 6A keystone module set DN-93615 from DIGITUS® impresses with future-oriented standards and high-end quality for your network. The compact design makes series installation possible in a 483 mm (19”) 1U panel. Tool-free installation uses LSA rails color-coded in accordance with EIA/TIA 568 A&B. Its compact design also means that the module fits in design-compatible modular junction boxes.

• Category 6A 10GBase-T, 500 MHz
• ISO/IEC 11801 3rd Edition, EN 50173-1
• Suitable for PoE/PoE+/4PPoE (IEEE 802.3af, 802.3at, 802.3bt)
• Suitable for modular patch panel and modular wall outlet installation.

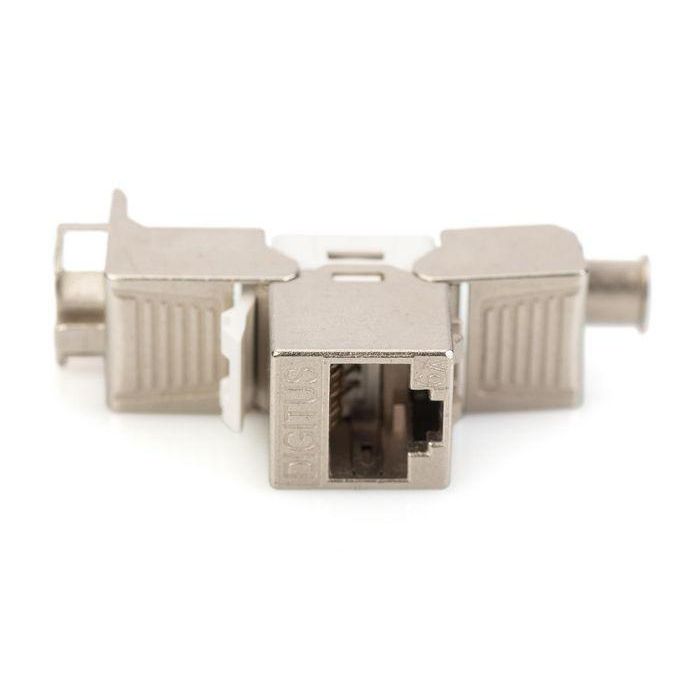

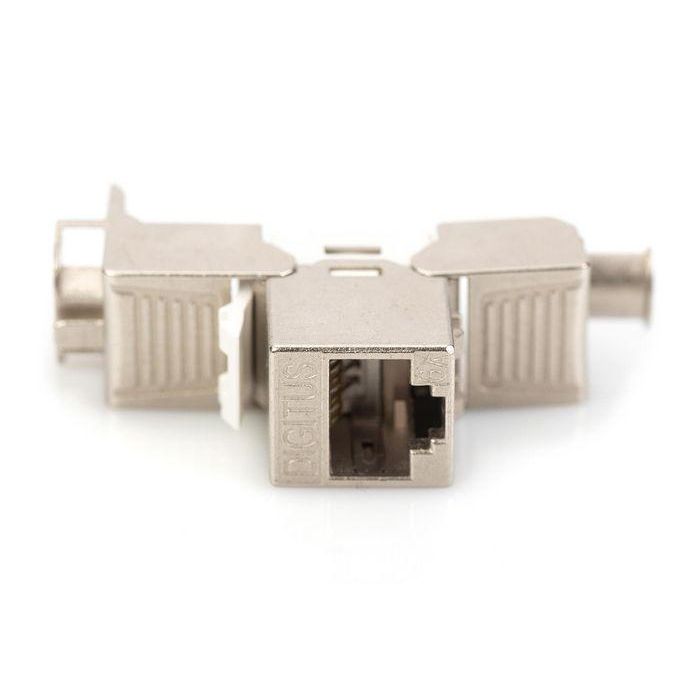

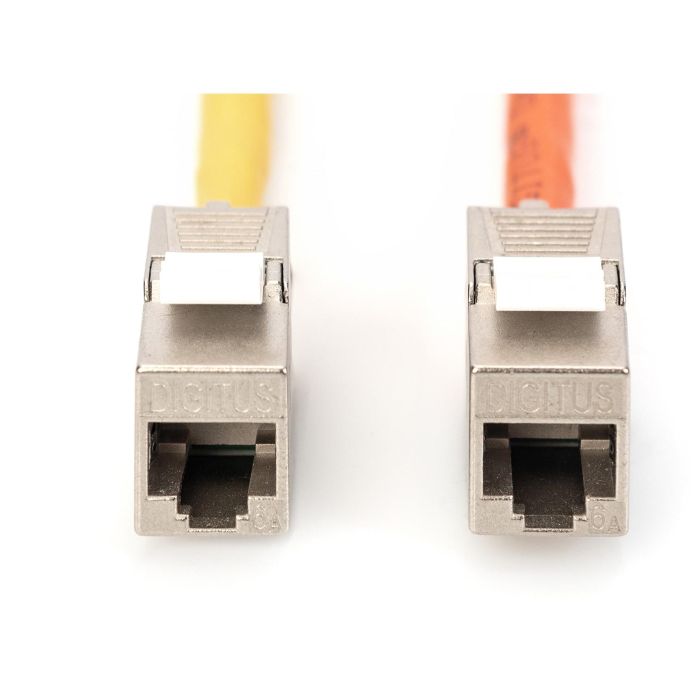

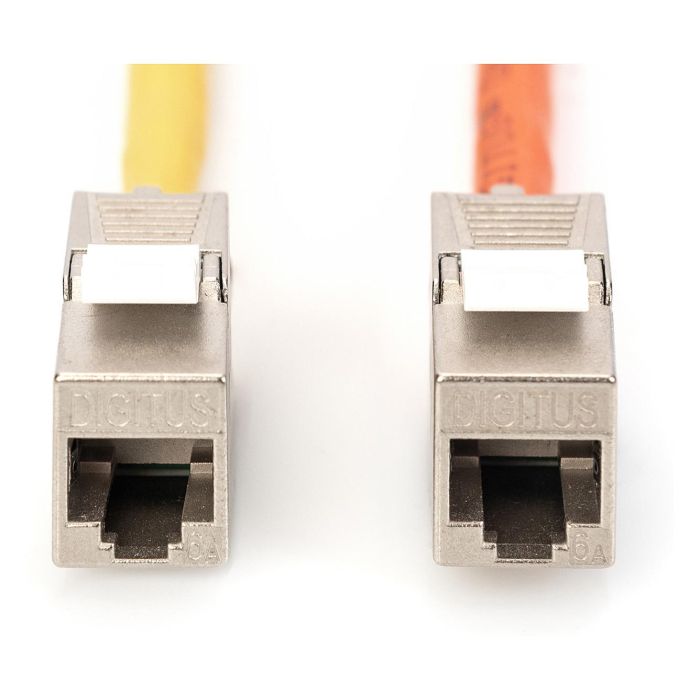

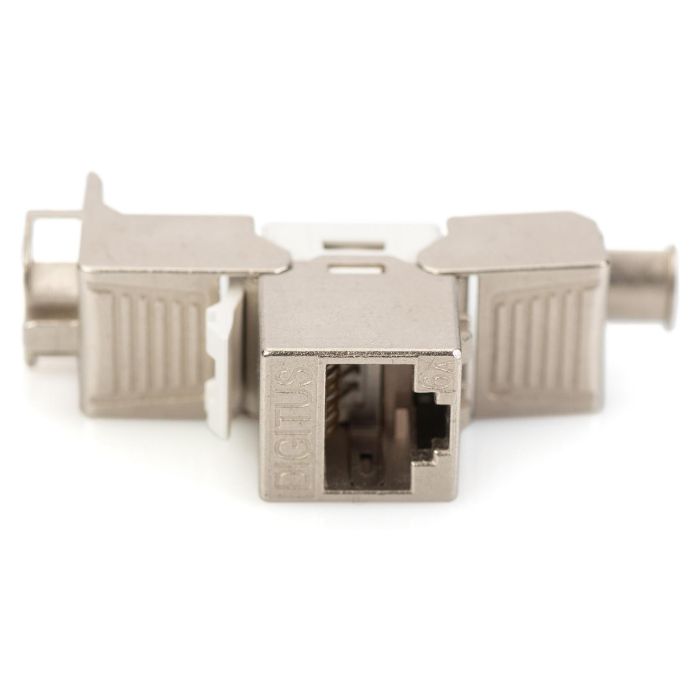

• RJ45-Jack, 8P8C

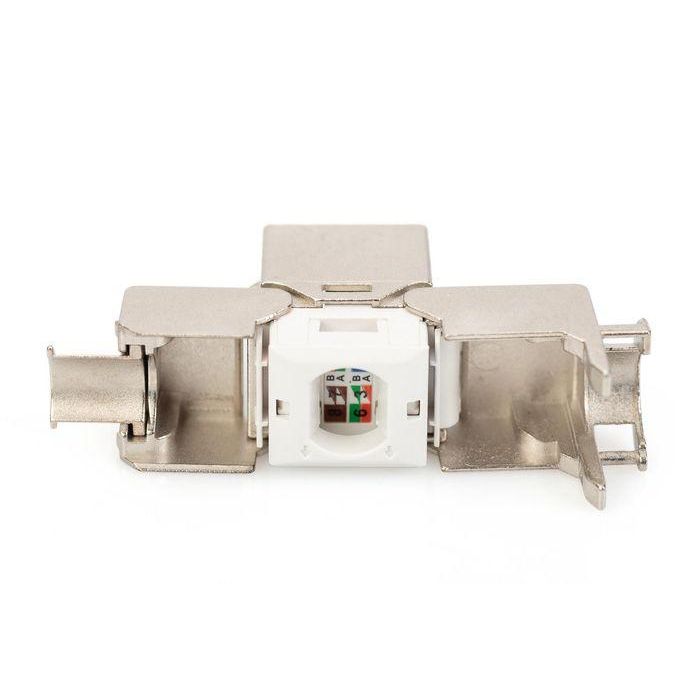

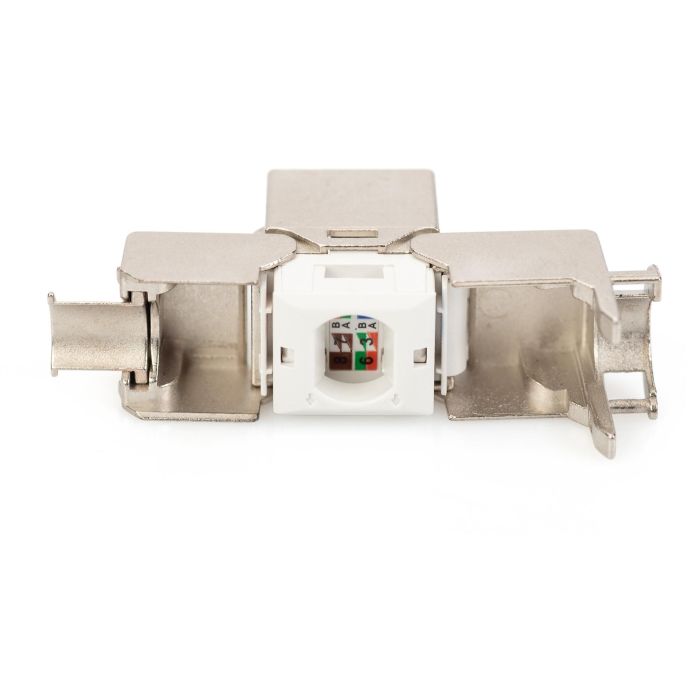

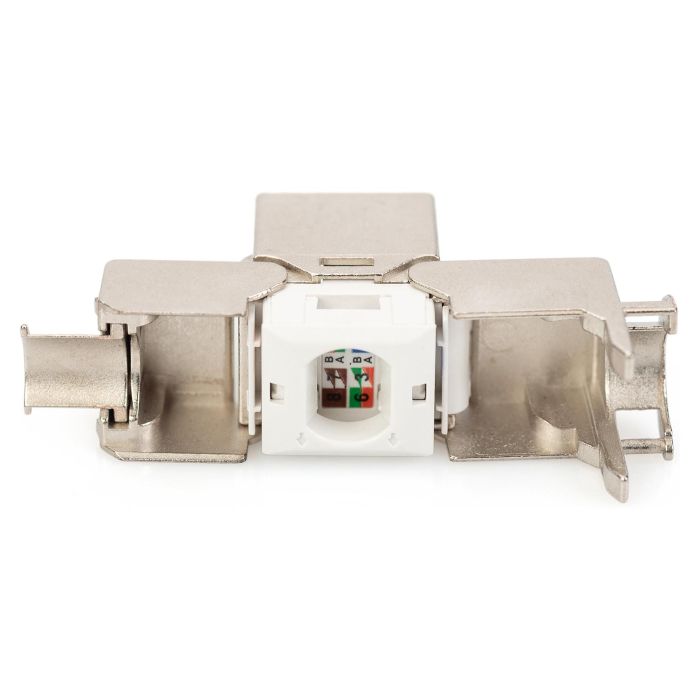

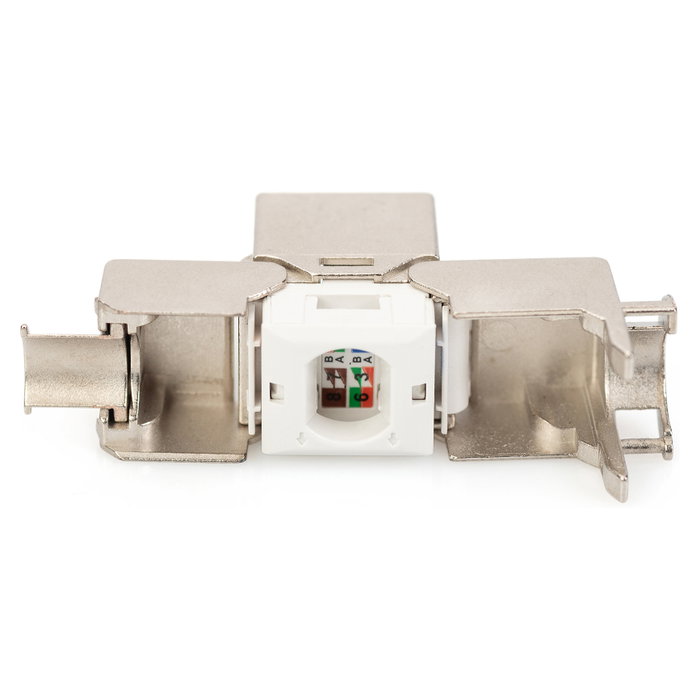

• Cable installation via insulation-displacement connectors, color coded in accordance with EIA/TIA 568 A & B

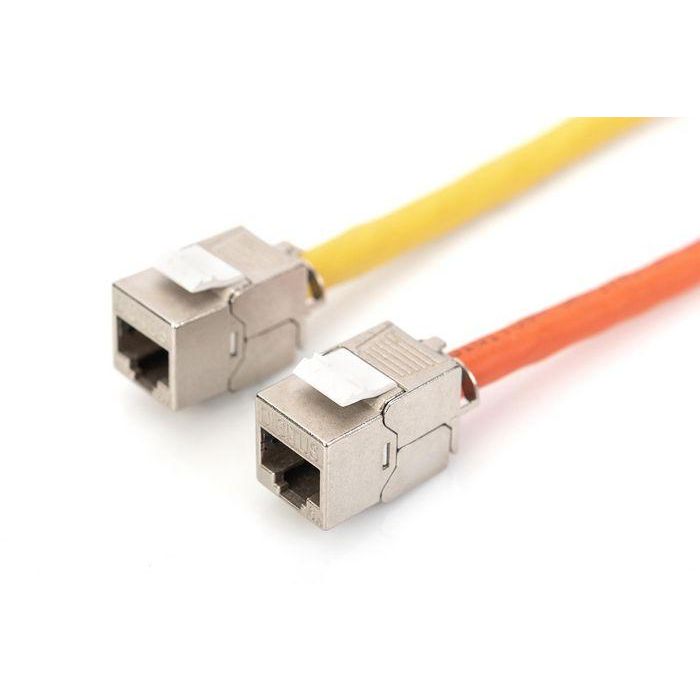

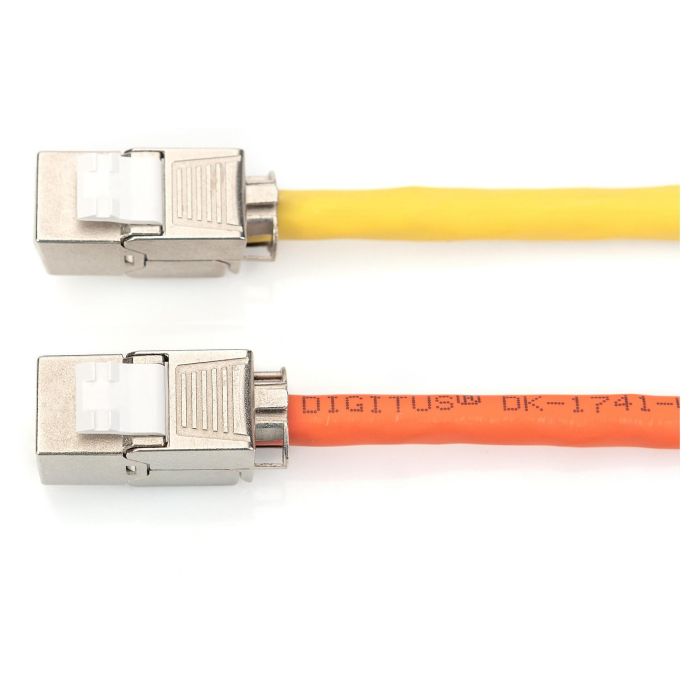

• Cable grip and cable fixation using intelligent cable manager
• Tool-free mounting connection

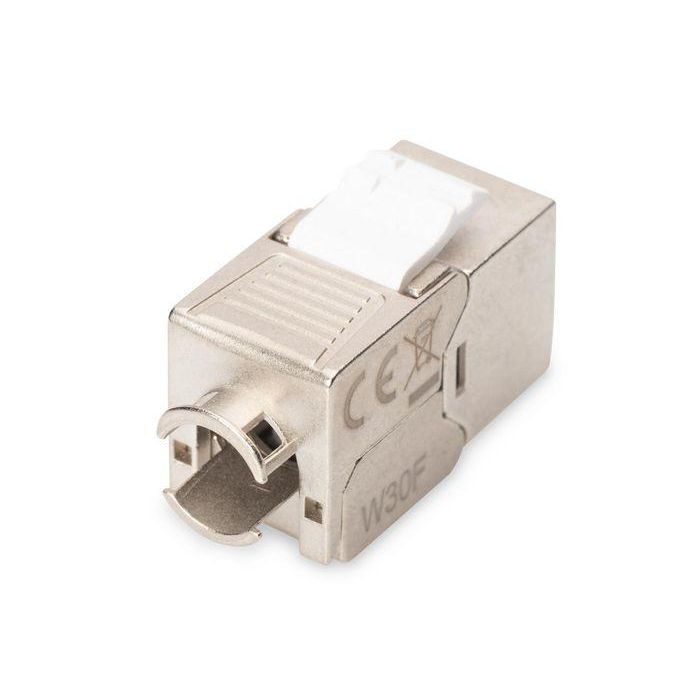

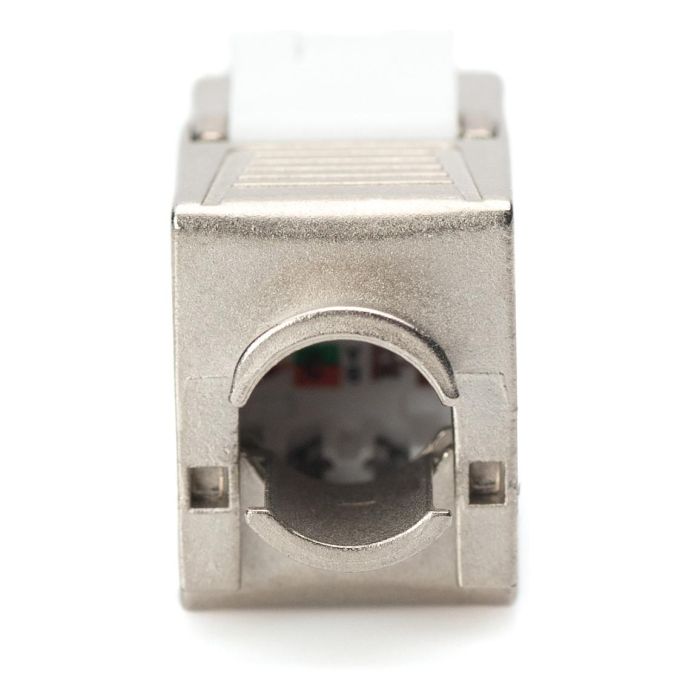

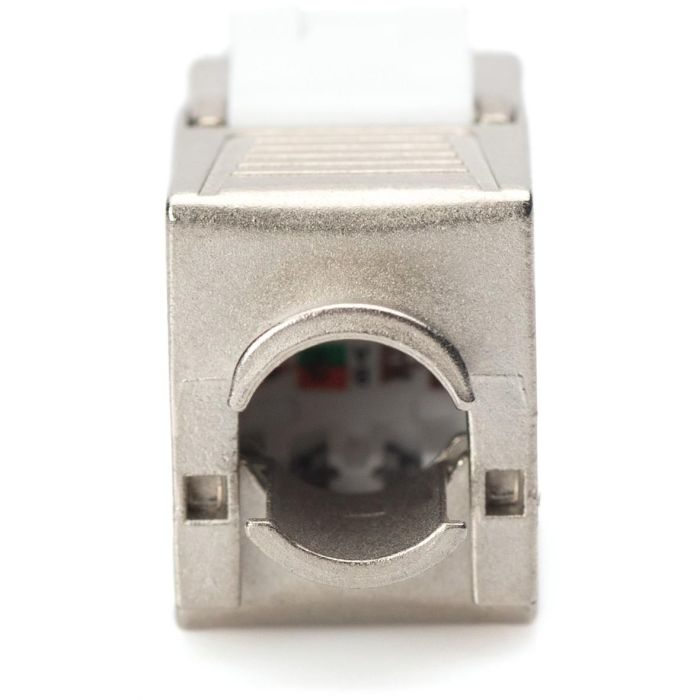

• 360° shield contact
• Case material: Zinc die-cast – nickel-plated
• Contact material: Phosphor bronze
• Contact coating: Nickel, gold-plated 0.5 µ
• Insertion force: Max. 30N (as per IEC 60603-7-51)
• Holding force: 7.7 kg between jack and plug
• Operating temperature range: -20 °C to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
• Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)

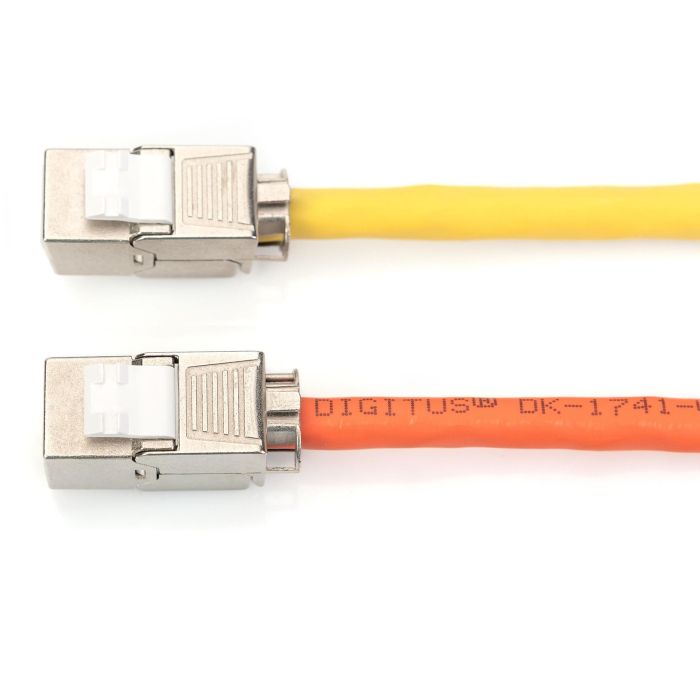

• Copper cable diameter: AWG (26/7 – 22/1), stranded and solid wire

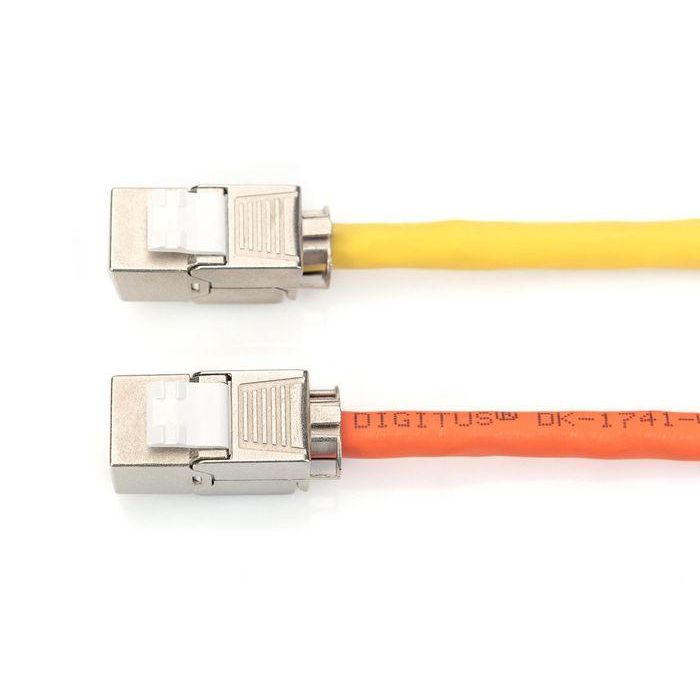

• Tested with AWG 22/1 solid installation cable
• (DIGITUS® DK-174X-A-VH-X; AWG 22/1 cat. 7A installation cable)
• Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
• Tool-free installation using LSA insulation-displacement connectors color coded in accordance with EIA/TIA 568 A & B
• Intelligent cable manager (resealable)
• Dimensions (HxWxD): 21.0 x 14.5 x 34.5 mm
• Weight: 19.5 g
