Minimization of the cabling costs for PoE-capable devices

- 16 gigabit ports with PoE+ support
- 250 watt performance with up to 30 watts per port
- Compatible with the IEEE802.3af and IEEE802.3at standards
- Automatic surge protection
- Supports bandwidth up to 10Gbps

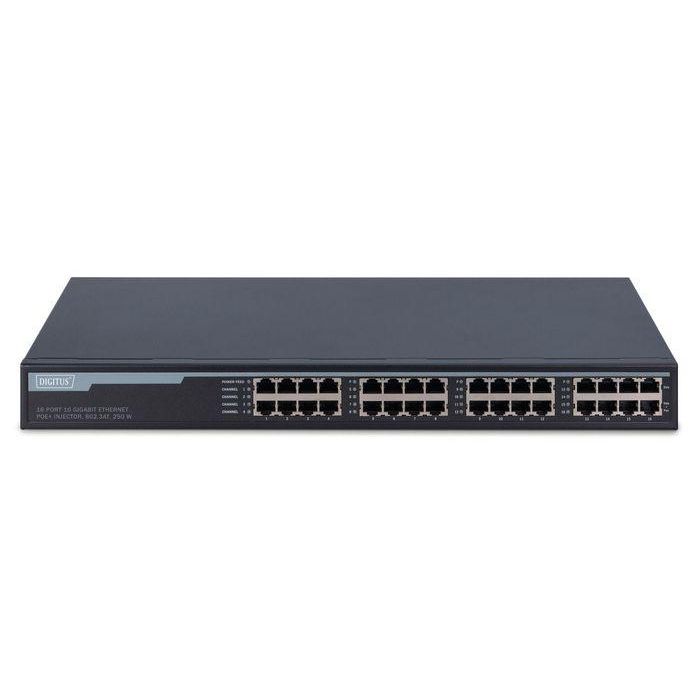

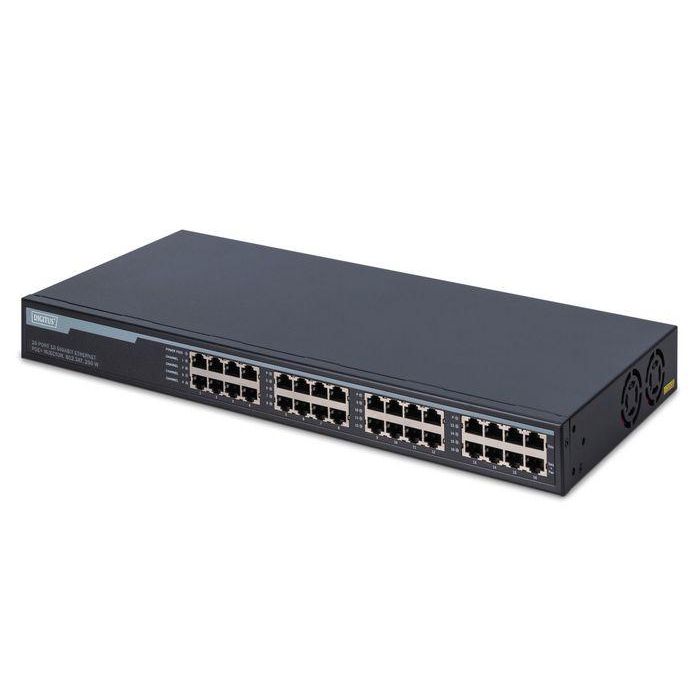

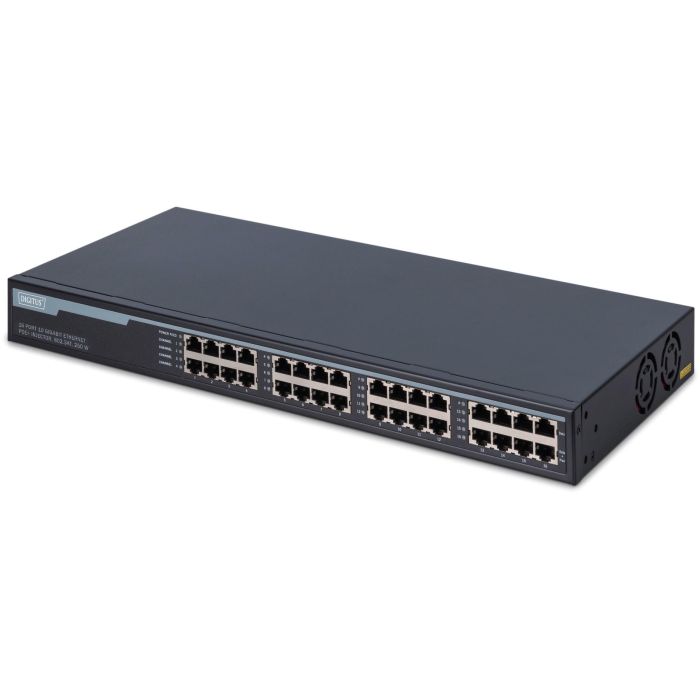

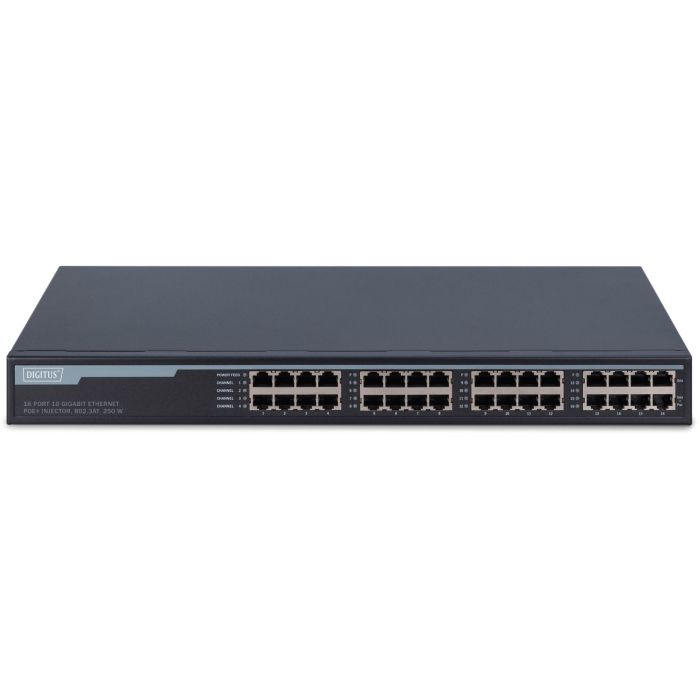

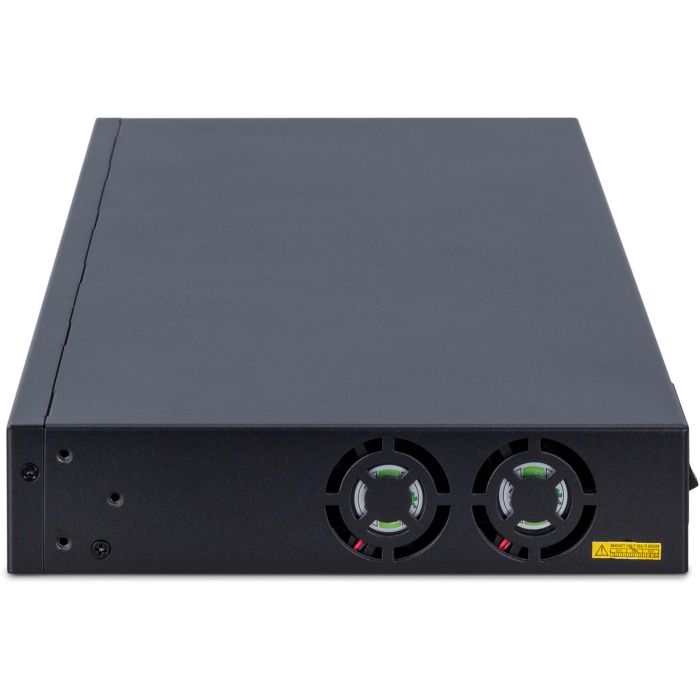

The DIGITUS® DN-95116 is an 16 port gigabit PoE+ mid-span hub (PoE injector). It offers 16 input ports for data and 16 output ports which make data and PoE available. Each PoE-port supports connected devices in accordance with the IEEE802.3af and IEEE802.3at PoE standard with 15.4 watts and/or 30 watts, such as PoE access points, PoE IP-telephones or PoE IP cameras, for example. The switch makes available a maximum budget of 250 watts for all ports and maximum budget of 30 watts per port.

• 32 x 10/100/1000Mbps/2.5G/10G (16 x input data, 16 x output data+PoE)
• Compatible with the IEEE802.3af and IEEE802.3at standards
• PoE power supply via PIN 1.2(V-) and PIN 3.6(V+)
• Maximum total output of 250 watts
• Compatible with IEEE802.3, IEEE802.3u and IEEE802.3ab standards
• Automatic cable recognition - Auto-MDI-/ MDI-X function
• Auto recognition of full and half duplex

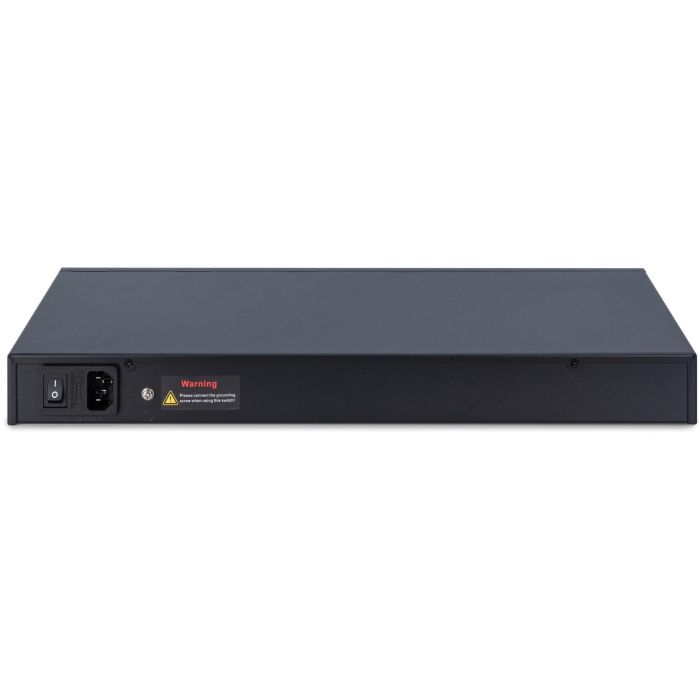

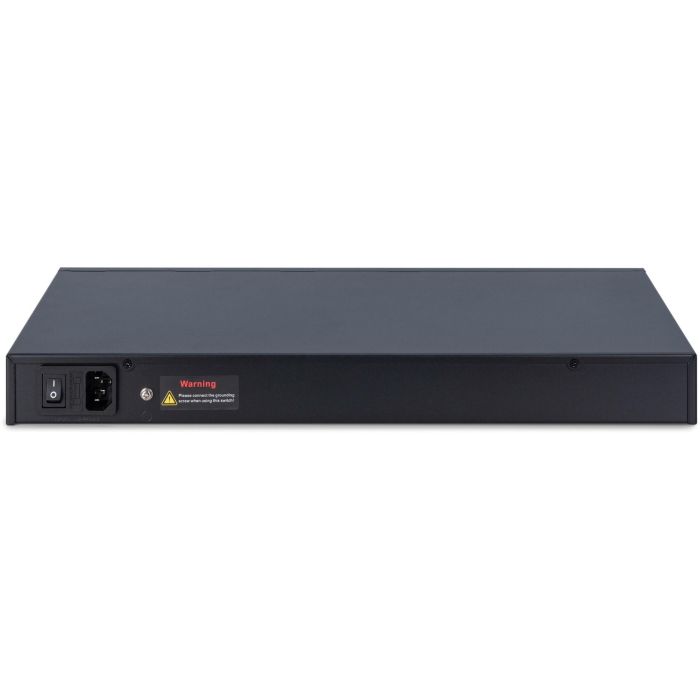

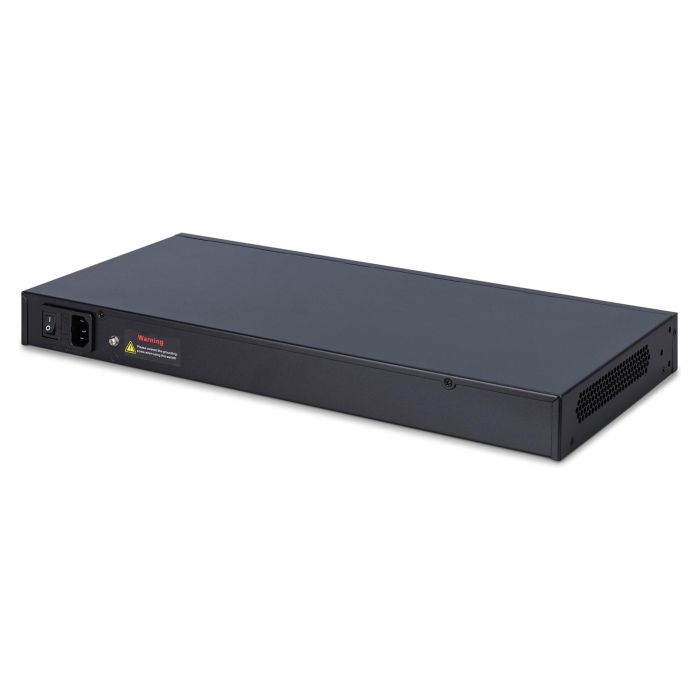

• Power supply: 100V AC ~ 240V AC
• Operating temperature range: -10 °C to +45 °C
• Storage temperature: -20°C - 70°C
• Dimensions (mm): 440(L) x 200(W) x 45(H)
• MTBF: 100,000 hours
• Power consmption: 15W
