Extends the HDMI signal to up to 120 m and offers the possibility of controlling the keyboard and mouse via USB on the receiver unit

- Extends the maximum length for HDMI cable to up to 120 m via a simple network cable
- Extension of the signal (unlimited distance) over the existing local network infrastructure (over IP connection)
- Highest supported video resolution: 1080p / 60 Hz
- Supports KVM function - convenient control of mouse and keyboard via USB on the receiver unit
- Supports LAN-standard 802.3 Ethernet 10/100/100 Mbps
- LED activity indicator for function, keyboard and mouse

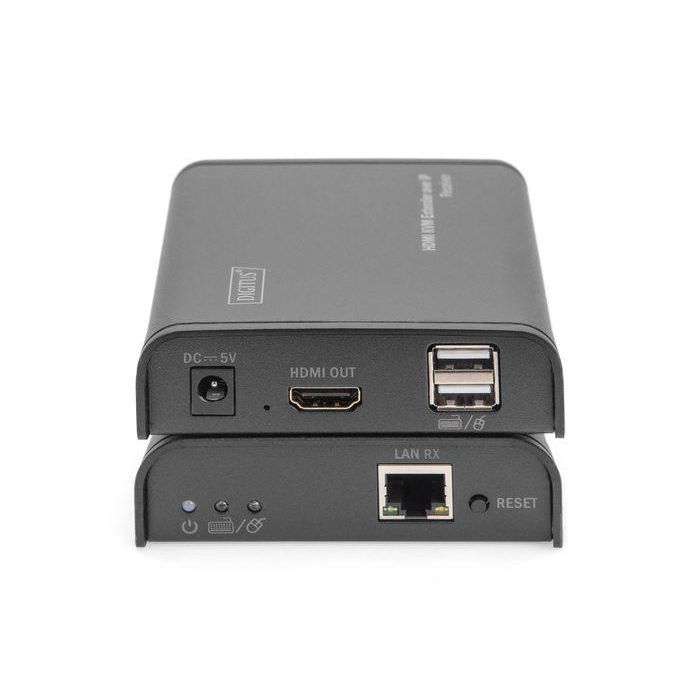

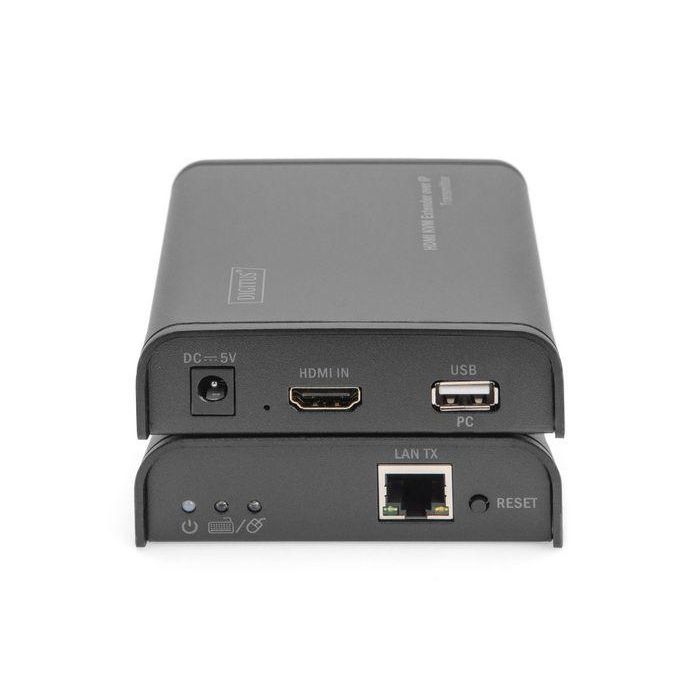

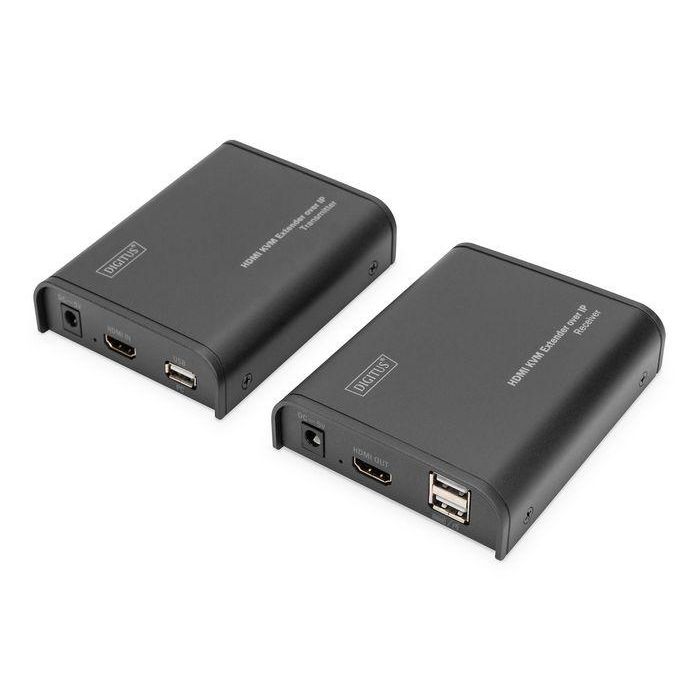

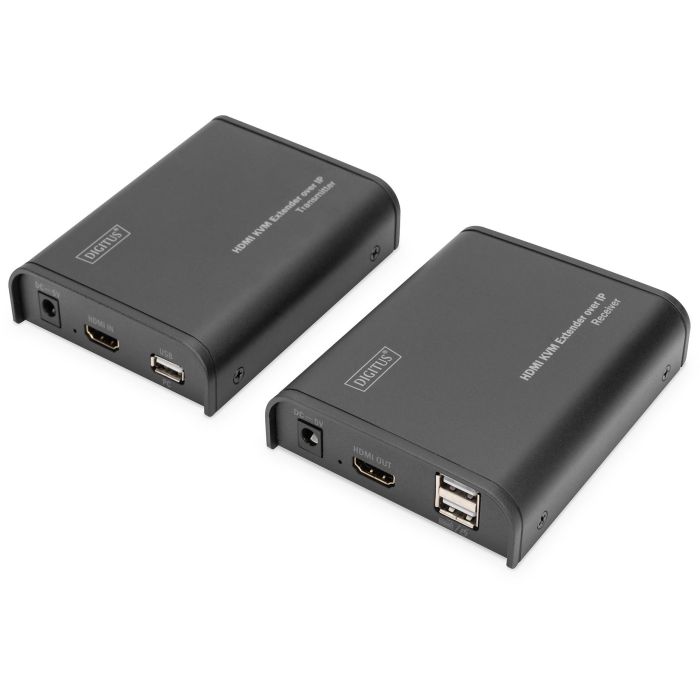

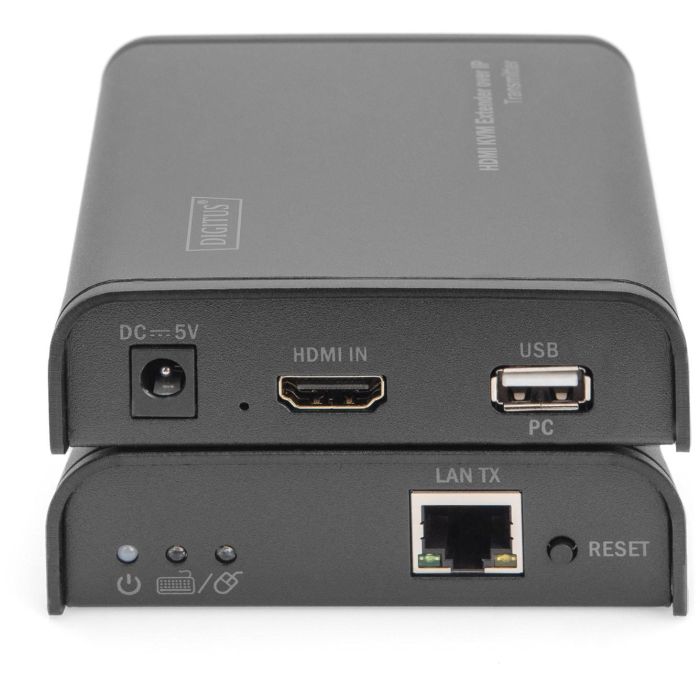

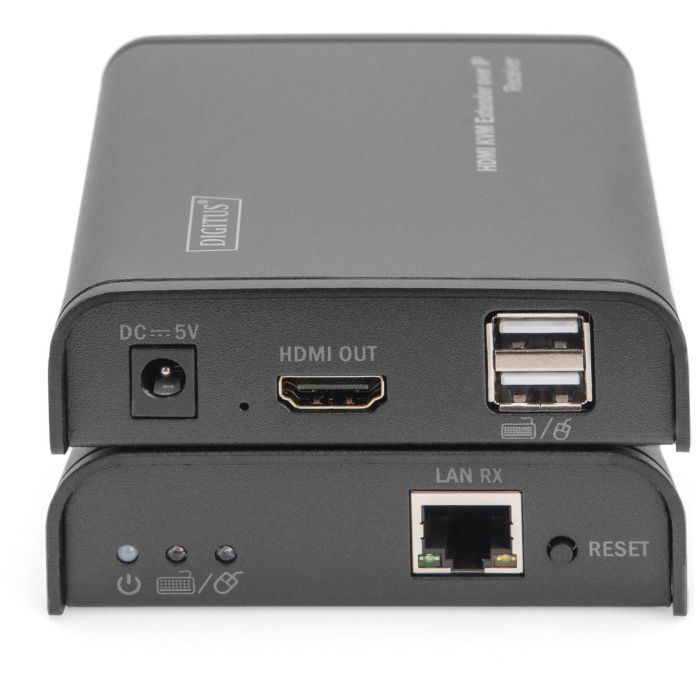

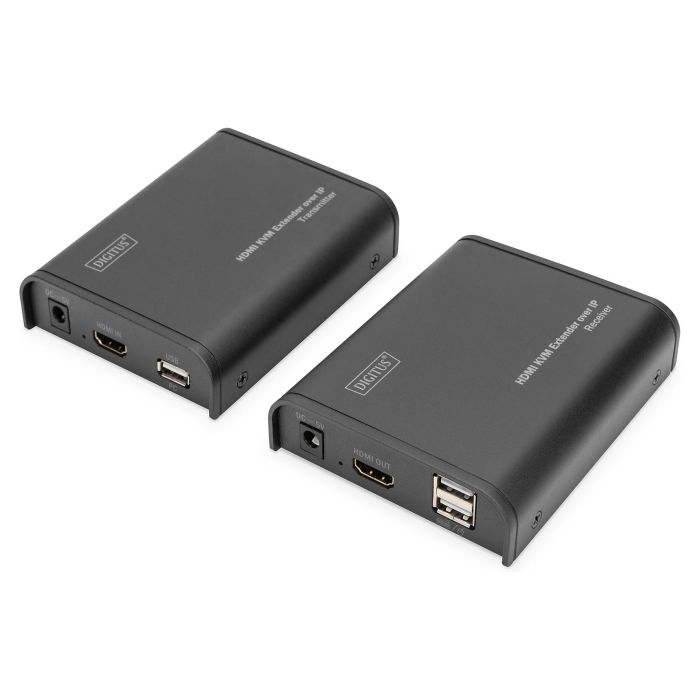

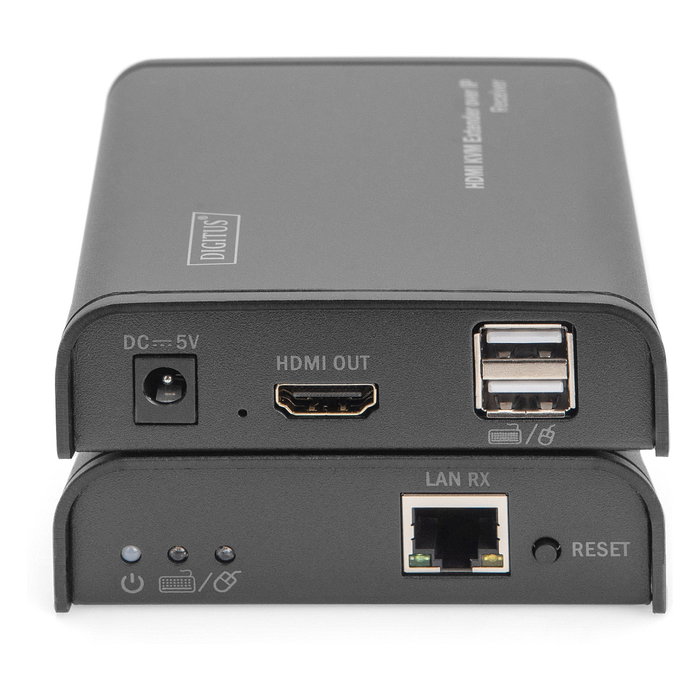

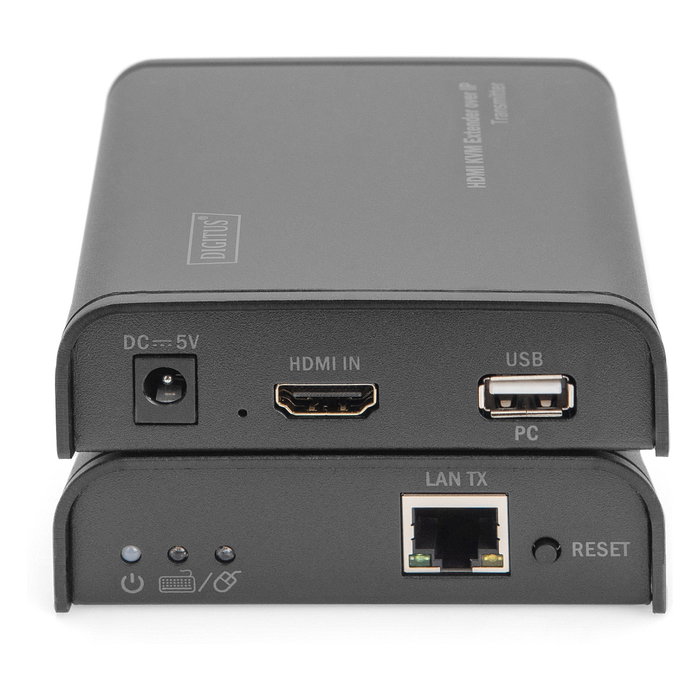

The Digitus HDMI KVM extender set consists of a sender unit (local location) as well as a receiver unit (remote location). The HDMI signal can be extended by means of a network cable (CAT 6, 5e, 5) up to a maximum distance of 120m. The HDMI signal can also be extended to an unlimited distance via the existing network infrastructure (via IP connection). The highest supported video resolution is 1080p / 60 Hz. It also makes convenient access on a computer (mouse and keyboard) possible via the USB ports on the receiver unit. It is perfectly suited to industrial, commercial and public applications.

• Extends the maximum length for HDMI cable to up to 120 m via a simple network cable
• Extension of the signal (unlimited distance) over the existing local network infrastructure (over IP connection)
• Highest supported video resolution: 1080p / 60 Hz
• Supports KVM function - convenient control of mouse and keyboard via USB on the receiver unit
• Supports LAN-standard 802.3 Ethernet 10/100/100 Mbps
• LED activity indicator for function, keyboard and mouse
• Transmission lengths: 120 m (CAT6), 100 m (CAT5e), 80 m (CAT5)
• Video bandwidth: 70 Mbps
• Video latency: 70 ms
• Audio support PCM (44.1KHz, 48KHz)
• USB keyboard and mouse support
• Supports UTP/STP CAT 5/ 5e/6/7 network cables in accordance with IEEE-568B standard
• Plug & Play, no additional software required - driver CD only needed as long as there is no mouse and keyboard function
• Electricity consumption: 3.5 W (TX or RX)
• Operating temperature: 0 ~ 60° C
• Ambient temperature: -20 ~ 70° C
• High quality aluminum casing
• Dimensions: L 11.0 x W 9.0 x H 2.6 cm
• Color: black
