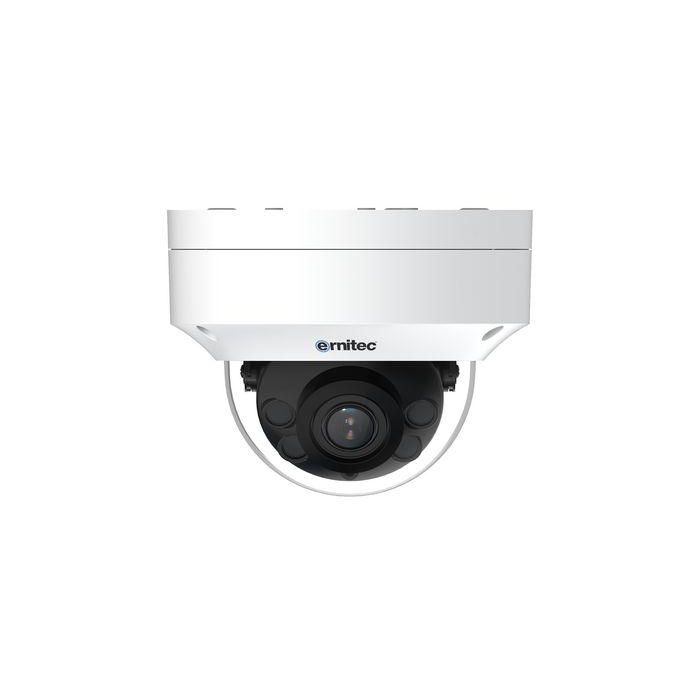

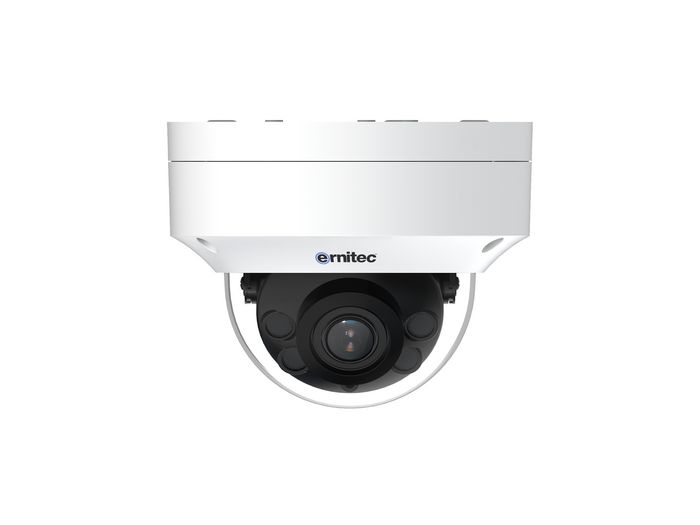

Ernitec Vandalproof IP Dome Camera

Overview

The Ernitec Vandalproof IP Dome Camera combines advanced technology with robust design, making it an ideal choice for comprehensive surveillance solutions. Below are its key features and specifications:

Camera Specifications

Image Sensor:

1/2.8” Progressive Scan CMOS -
Max Resolution: 5MP (2592×1944) @ 25/30fps -
Electronic Shutter: Auto/Manual, 1/5 ~ 1/20,000s -
Minimum Illumination:Color: 0.03 Lux @ (F1.6, AGC ON)B/W: 0 Lux @ (IR LED ON) -
Day & Night Functionality: IR cut filter for enhanced visibility

Lens Features - Lens Type:

Motorized focusFocal Length: 2.7 ~ 13.5 mm
F Number: F1.6
Angle of View:Horizontal: 87.5° ~ 26°Vertical: 64.8° ~ 19.9°
Pan/Tilt/Rotation Range:Pan: 0˚ ~ 350˚Tilt: 0˚ ~ 80˚Rotation: 0˚ ~ 350˚

Video Capabilities -Streaming Capability:

3 streamsStream/Frame Rate:Stream 1: 2592×1944, 2592×1520, 1920×1080, 1280×720 @ 25/30fpsStream 2: D1, VGA, CIF @ 25/30fpsStream 3: VGA, CIF, QVGA @ 25/30fpsBit Rate Control: CBR/VBRRegion of Interest: Off/On (8 zones, rectangle)

Intelligent Detection Features - Detection Support:

Face, human, and vehicle detectionSmart Events:IntrusionSingle line crossingDouble line crossingLoiteringWrong wayPeople countingAlarm Triggers: Supports alarm triggering by specified target types (human and vehicle)

Audio and Network Interfaces - Audio:Compression:

G.711, RAW_PCMBit Rate: 8kbps, 16kbps, 64kbpsNetwork Protocols: IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, and moreMax User Access: 10 usersWeb Viewer Compatibility: IE11, Chrome, Firefox, Microsoft Edge

Additional Features Smart IR:

Up to 40m (131.2 ft) for night visionNoise Reduction: 2D/3D DNRImage Enhancement: HLC, BLC, Defog, True WDRPrivacy Masking: SupportedBuilt-in Micro SD Slot: Supports up to 256GB

Physical Specifications -Ingress Protection:

IP66, IK10Power Supply: DC12V (-15%~+25%) / PoE (IEEE 802.3af)Power Consumption: Max 7 WOperating Temperature: -40°C ~ 55°C (-40°F ~ 131°F)Operating Humidity: Less than 90% RHCasing: MetalDimensions: φ140 × 109 mm (φ5.51" × 4.29")Net Weight: 0.73 kg (1.61 lb)

With its cutting-edge features and durable design, the Ernitec Vandalproof IP Dome Camera is your go-to solution for reliable and intelligent surveillance.
