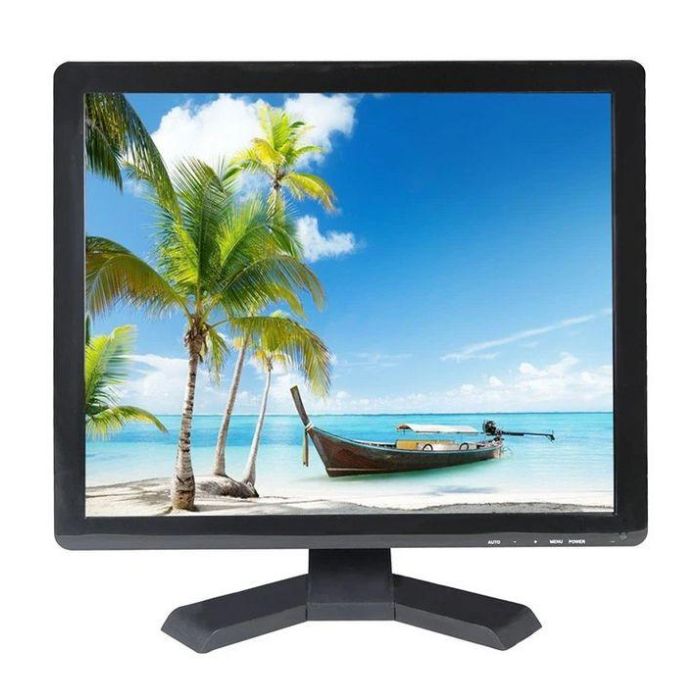

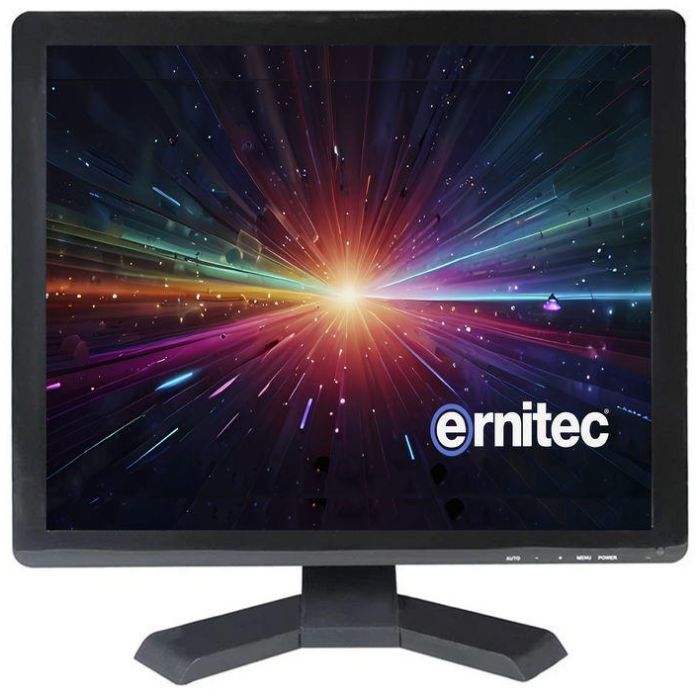

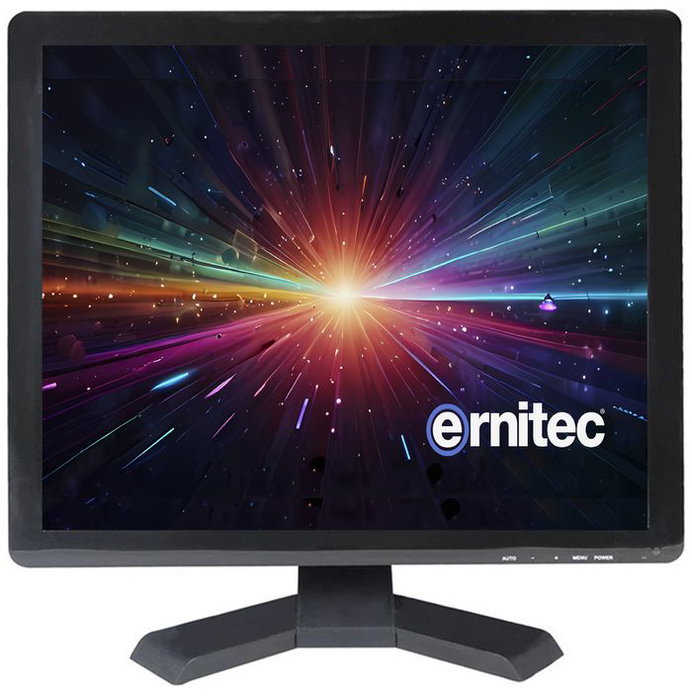

High Performance 24/7 security monitor for when you want your display to last. Ernitec delivers with this monitor state of the art display. We have added a BNC input so you can easily add your analog camera to the monitor.

DISPLAY CHARACTERISTICS

Screen size 17'’
Active display area (mm) 337.920mm(W)×270.336mm(H)
Display mode 5:4
Led type TFT-LED
Resolution 1280×1024
Display colour 16.7M
Pixel pitch (mm) 0.264(H)×0.264(V)
Brightness (nits) 250cd/m2
Contrast ratio 1000:1
Viewing angle 178(H) / 178(V)
Response time 5ms
Backlight LED

INPUT & OUTPUT

HDMI 2.0 x 1
VGA x 1
BNC input x 2
BNC output x 1
Speaker 2x 3W(Stereo)

VIDEO

Colour system PAL/NTSC/SECAM
Osd control Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, Phase, Color, Language.
3D comb filter YES
Video noise reduction YES

POWER & Mount

Power DC12V, 50/60Hz
Working temperature -30 to +85 °C
Power consumption ≤25W
Menu English and others
Mounting/weight Stand mount, VESA mount /7.5kg
MTBF 50000 Hours
VESA size: 75x75

• 2 BNC input + 1 BNC output
