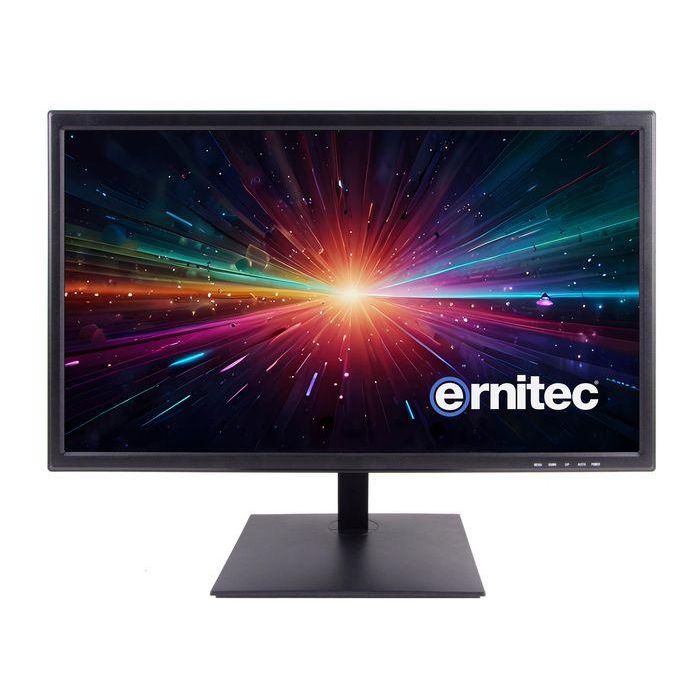

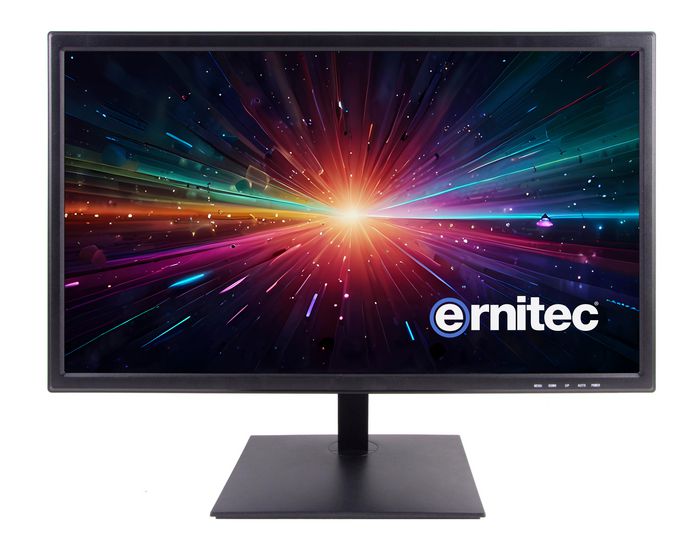

High Performance 24/7 security monitor for when you want your display to last. Ernitec delivers with this monitor state of the art display. We have added a BNC input so you can easily add your analog camera to the monitor.

DISPLAY CHARACTERISTICS
Screen size 19'’
Active display area (mm) 386.32mm(W)×251.03(H)
Display mode 16:9
Led type TFT-LED
Resolution 1920×1080
Display colour 16.7M
Pixel pitch (mm) 0.248(H)×0.248(V)
Brightness (nits) 350cd/m2
Contrast ratio 1000:1
Viewing angle 178(H) / 178(V)
Response time 5ms
Backlight LED

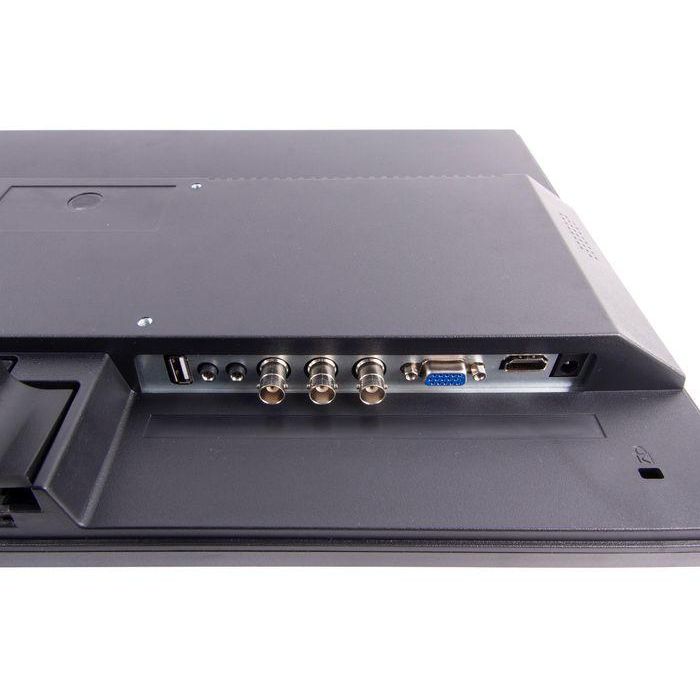

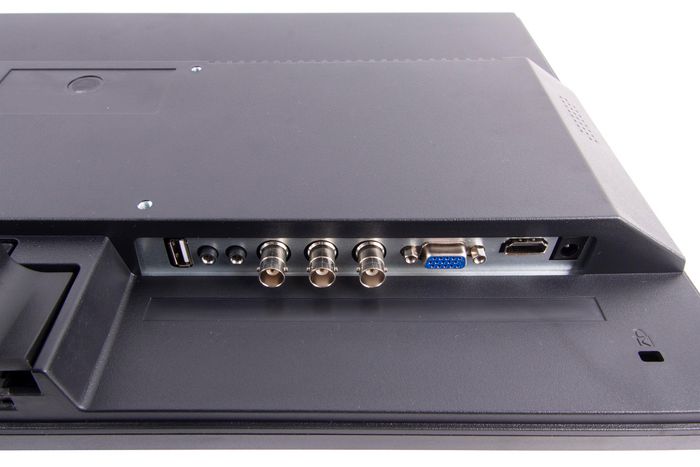

INPUT & OUTPUT

HDMI 2.0 x 1
VGA x 1
BNC input x 2
BNC output x 1
Speaker 2x 3W(Stereo)

VIDEO

Colour system PAL/NTSC/SECAM
Osd control Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, Phase, Color, Language.
3D comb filter YES
Video noise reduction YES

POWER & Mount

Power DC12V, 50/60Hz
Working temperature -30 to +85 °C
Power consumption ≤25W
Menu English, French
Mounting/weight Stand mount, VESA mount / 3.5kg
MTBF 50000 Hours
Accessories Industrial PSU, screw, cable holder, quick start guide
VESA size: 100x100

• 2 BNC input + 1 BNC output
• EU + UK Power cord included
