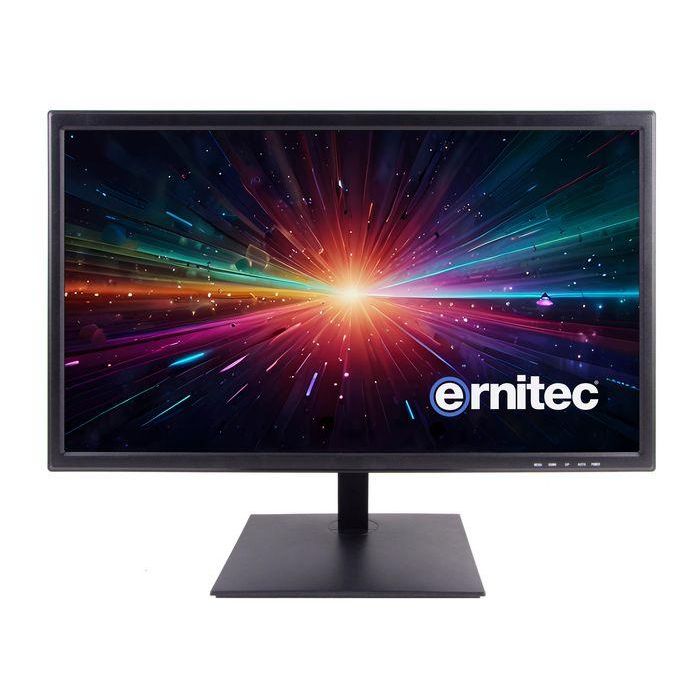

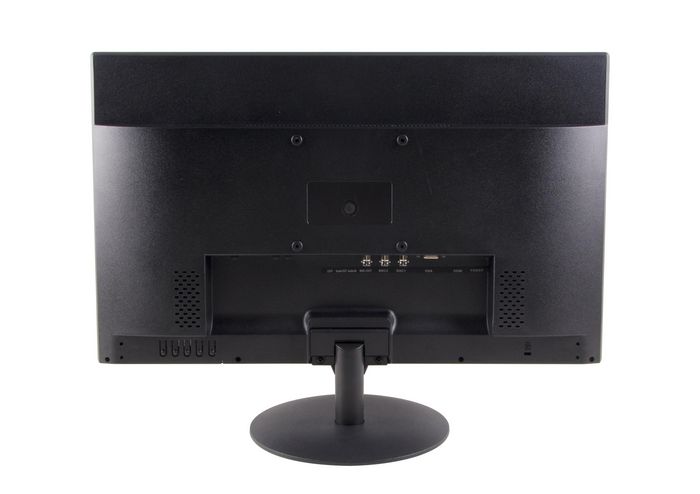

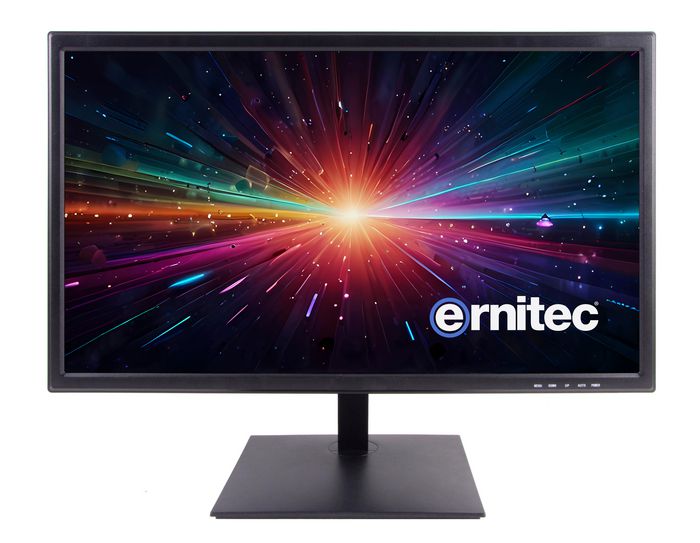

High Performance 24/7 Security Monitor
When you need a display that lasts, Ernitec delivers with this state-of-the-art monitor. Featuring a BNC input, it’s easy to connect your analog camera for seamless integration.

Display Characteristics
• Screen Size: 22 inches
• Active Display Area: 476.64mm (W) × 268.11mm (H)
• Display Mode: 16:9
• LED Type: TFT-LED
• Resolution: 1920 × 1080
• Display Color: 16.7 million
• Pixel Pitch: 0.248mm (H) × 0.248mm (V)
• Brightness: 250 nits
• Contrast Ratio: 1000:1
• Viewing Angle: 178° (H) / 178° (V)
• Response Time: 5ms
• Backlight: LED

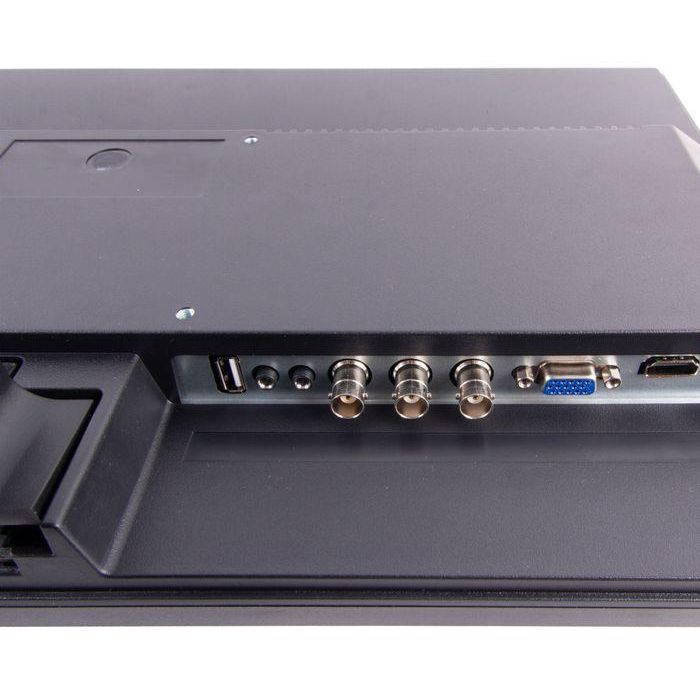

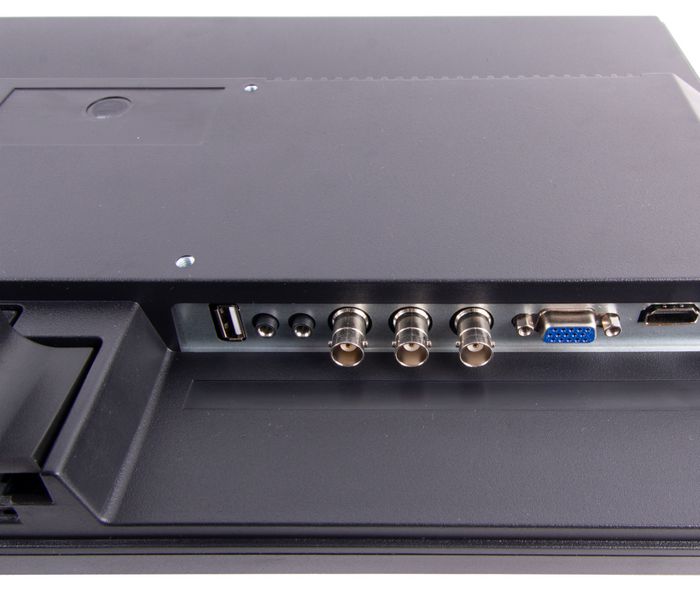

Input & Output
• HDMI 2.0: 1
• VGA: 1
• BNC Input: 2
• BNC Output: 1
• Speaker: 2x 3W (Stereo)
Video
• Color System: PAL/NTSC/SECAM
• OSD Control: Auto adjust, Brightness, Contrast, Horizontal/Vertical Position, Clock, Phase, Color, Language
• 3D Comb Filter: Yes
• Video Noise Reduction: Yes

Power & Mounting
• Power Supply: DC 12V, 50/60Hz
• Working Temperature: -30 to +85°C
• Power Consumption: ≤25W
• Menu Languages: English, French

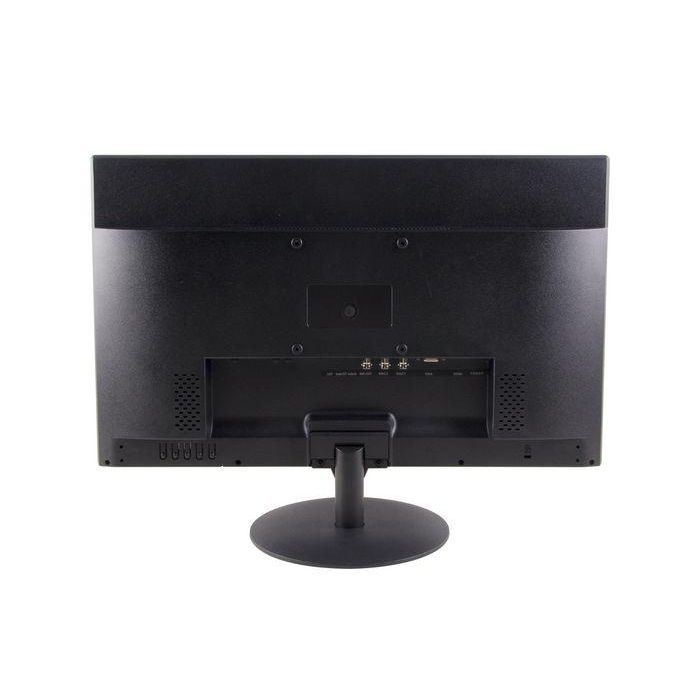

• Mounting Options: Stand mount, VESA mount
• Weight: 3.5kg
• MTBF: 50,000 hours
• VESA Size: 100x100
• EDID Compatibility: Not compatible

Included Accessories
• Screws
• Cable holder
• Quick start guide
This monitor is designed to provide reliable performance around the clock, making it an ideal choice for security applications.

• 2 BNC input + 1 BNC output
• EU + UK Power cord included
