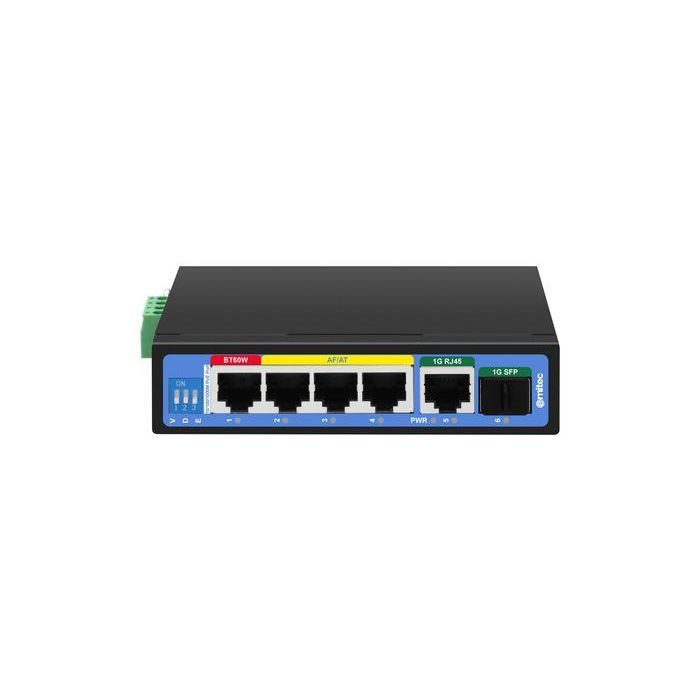

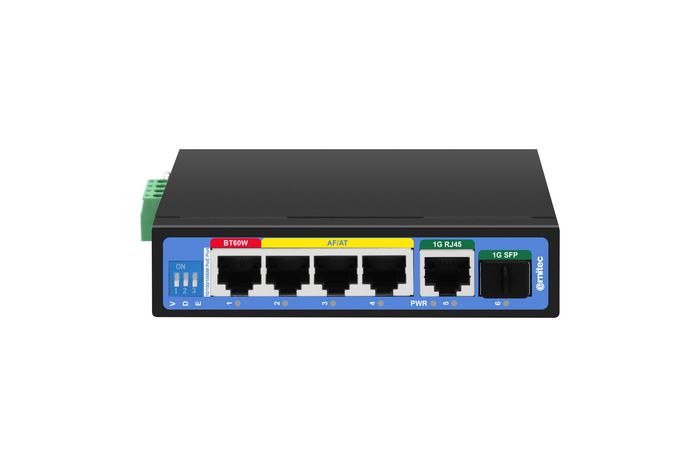

The Ernitec 6-port 1000Mbps Intelligent Industrial PoE Switch is designed for high-performance and reliability in industrial settings. Here are some key features:

Gigabit Ethernet Ports: Six 10/100/1000 Mbps PoE ports for fast and efficient data transfer.

PoE Capability: Supports Power over Ethernet (PoE) to power devices like IP cameras and wireless access points directly through the Ethernet cables.

Industrial-Grade Design: Built to withstand harsh environments with a rugged housing and wide operating temperature range.

Advanced Management Features: Includes Layer 2+ management features such as VLAN, QoS, and IGMP snooping for optimized network performance.

Flexible Network Expansion: Two Gigabit SFP uplink ports for easy network expansion.

This switch is ideal for applications requiring robust and reliable network connectivity in challenging environments.

4 x 1000Mbps PoE RJ45 ports
1 x 1000Mbps uplink RJ45 port
1 x 1000Mbps uplink SFP port

Ports 1-4 support standard PoE power supply and comply with IEEE 802.3af/at international standards.

Port 1 support 90W BT

IEEE802.3 (Ethernet)
IEEE802.3u (Fast Ethernet)
IEEE802.3ab (Gigabit Ethernet)
IEEE802.3z (Gigabit Ethernet Fibre Standards)
IEEE802.3x (Flow Control)

Operates in temperatures ranging from -40°C to 75°C.

Features a 4-pin industrial terminal and DC2.1 input interface, with a wide voltage input of DC48-55V.

Supports VLAN, Genius, and Extend modes.

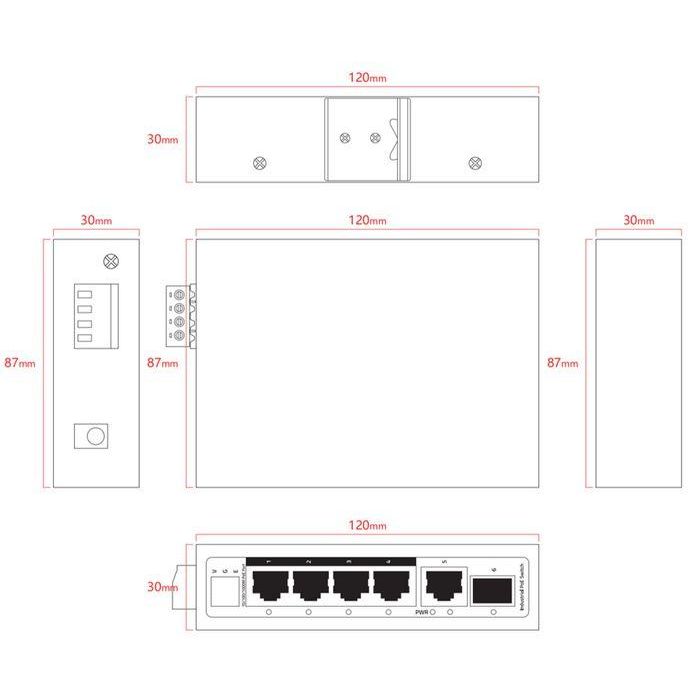

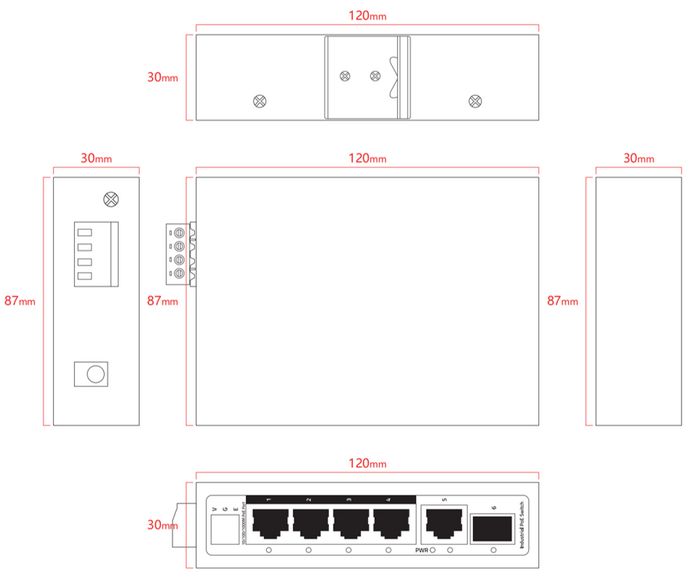

Suitable for both rail and wall mounting installations.
