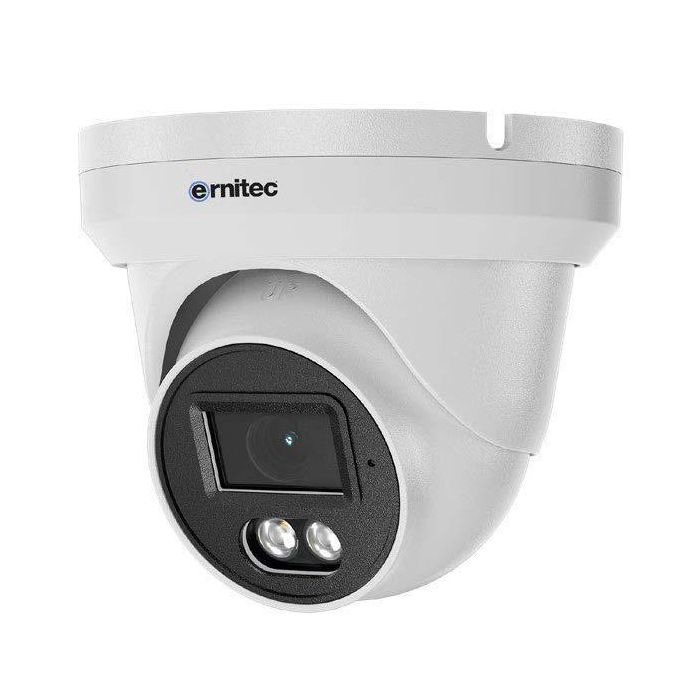

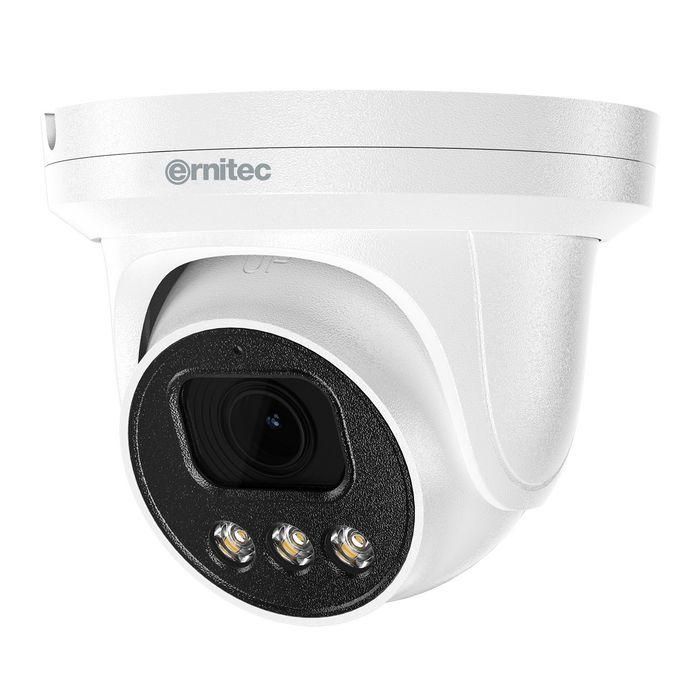

Ernitec Vandalproof IP Dome Camera

Specifications

CameraImage Sensor: 1/2.8” Progressive Scan CMOSMax Resolution: 5MP (2592×1944)Electronic Shutter: Auto/Manual, 1/5 ~ 1/20,000sMinimum Illumination:Color: 0.003 Lux (F1.0, AGC ON)0 Lux with Light OnDay & Night: IR cut filterIllumination Distance: Up to 30 m (98.4 ft)Illumination Control: Auto/ManualPan/Tilt/Rotation Range:Pan: 0˚ ~ 355˚Tilt: 0˚ ~ 80˚Rotation: 0˚ ~ 360˚

Lens TypeFixed focus Iris: Fixed IrisFocal Length: 2.8 mm / 4 mmF Number: F1.0Angle of View:H: 93.4°, V: 69.1° (2.8 mm)H: 75.7°, V: 54.6° (4 mm)

Video Streaming Capability3 StreamsStream/Frame Rate:Stream 1: 2592×1944, 2592×1520, 1920×1080, 1280×720 @ 25/30fpsStream 2: D1, VGA, CIF @ 25/30fpsStream 3: VGA, CIF, QVGA @ 25/30fps

Bit Rate ControlCBR/VBRBit Rate:Stream 1: 200kbps ~ 12MbpsStream 2: 100kbps ~ 6MbpsStream 3: 100kbps ~ 3Mbps

Region of Interest: Off/On (8 Zones, Rectangle) Smart Encode: Supported

Image AdjustmentBrightnessSharpnessContrastSaturation adjustableAisle Mode: SupportedMirror: SupportedWhite Balance: Auto/ManualDay/Night Setting: Auto, Day, Night, TimeSmart IR: SupportedNoise Reduction: 2D/3D DNRImage Enhancement: HLC, BLC, DefogWide Dynamic Range: True WDRS/N Ratio: 55dBMotion Detection: SupportedPrivacy Masking: Supported

Smart Function Multi-Object DetectionSupports face, human, vehicle detection and capture

Smart EventsIntrusionSingle Line CrossingDouble Line CrossingLoiteringWrong WayPeople Counting

Alarm TriggeringBy specified target types (human and vehicle)

Audio CompressionG.711, RAW_PCMBit Rate: 8kbps, 16kbps, 64kbps

Network ProtocolsIPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, TLS/SSL

InteroperabilityONVIF, SDK, CGI

Streaming MethodUnicastMax User Access: 10 UsersWeb Viewer Compatibility: IE11, Chrome, Firefox, Microsoft Edge

Languages SupportedEnglish, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian (Default: English)

InterfaceNetwork Interface: 1 Ethernet (10/100 Base-T) RJ-45 ConnectorAudio Interface:1ch Input1ch OutputBuilt-in Microphone: YesAlarm Interface:1ch Input1ch OutputReset Button: SupportedSD Card Slot: Built-in, up to 256GB

ElectricalPower Supply: DC12V (-25% ~ +10%) / PoE (IEEE 802.3af)Power Consumption: Max 7.5 W

Operating Temperature-40°C ~ 55°C (-40°F ~ 131°F)

Operating HumidityLess than 90% RH

Ingress ProtectionIP66

CertificationsCE/FCC

CasingMetal + PlasticDimensions: 118 × 94 mm (4.65 × 3.7 inch)Net Weight: 0.55 kg (1.21 lb)
