Used for high speed cabling systems where there is a need for large data traffic.

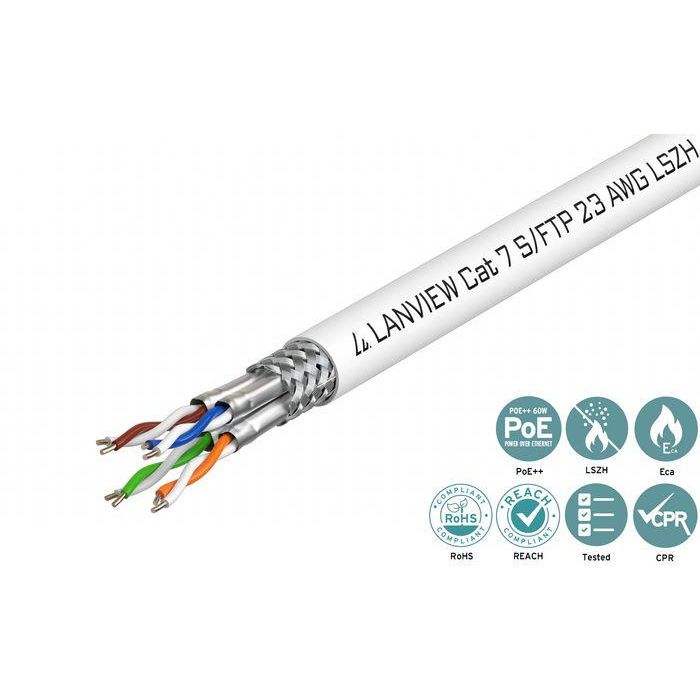

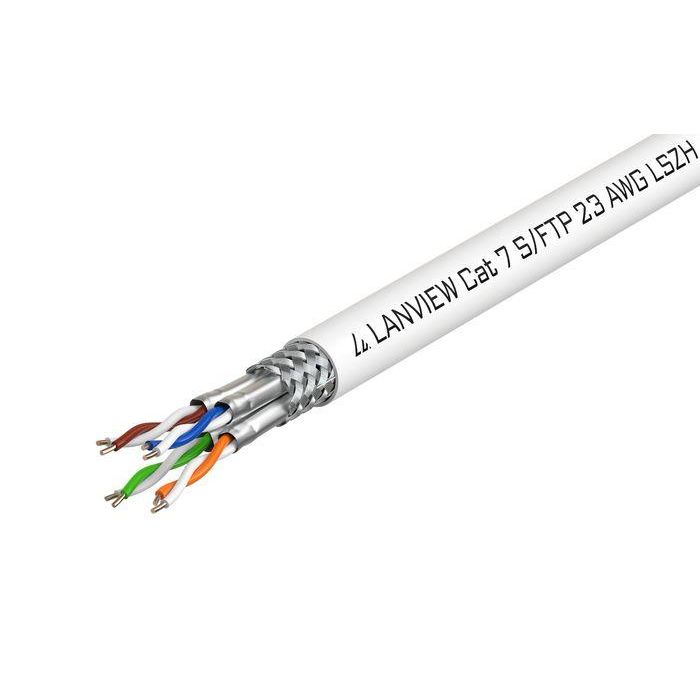

Offering the maximum protection from RFI/EMI, crosstalk and alien crosstalk, this cable has both an overall braid shield and foil shield, with individually foil tape screened twisted pairs. This type of cable provides the best level of protection from interference and better grounding due to the braid.



Lanview Cat7 S-FTP LSZH cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors.



Especially suited for noisy environments or where there is limited space in the cable routes.

• HD-Base T application
• Shield: Foil/Braid
• AWG 23 solid copper

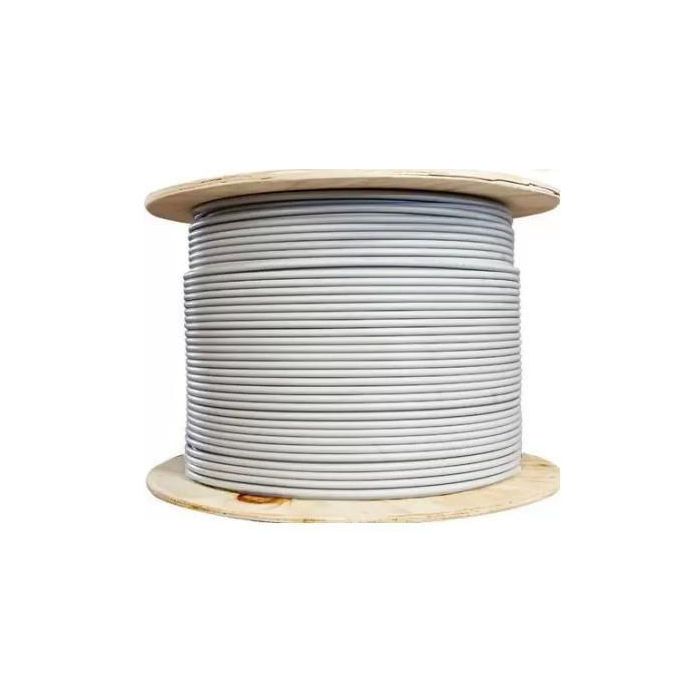

• 500 m reel
• Meter marked cable
• 600 MHz
• Tested to 60 Watts but can also run High POE.
• NVP Value: 74%
