LOGON By Lanview PROFESSIONAL DOUBLE SECTION FOR RWM CABINET 12U

Weight(kg): 16
Product dimensions WxDxH(mm): 600x150x631
Ah Wall mounting hole gaps(mm): 522
RAL: 9005

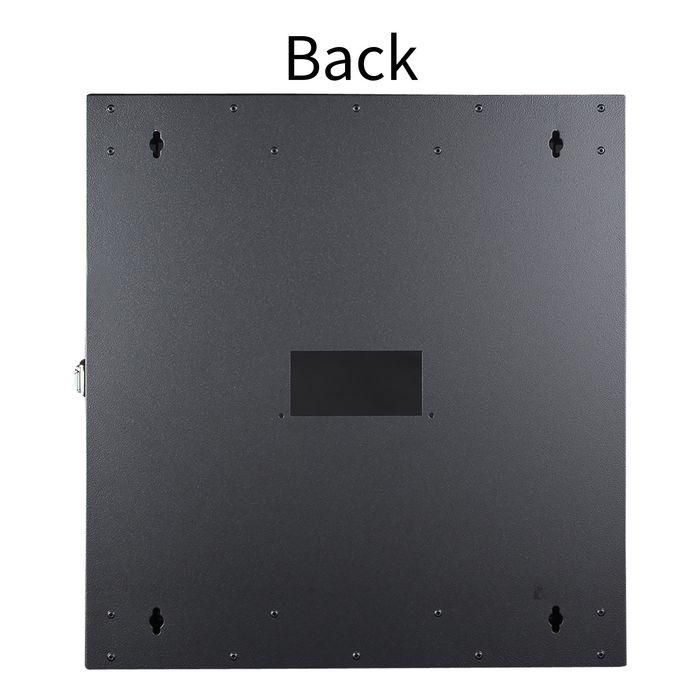

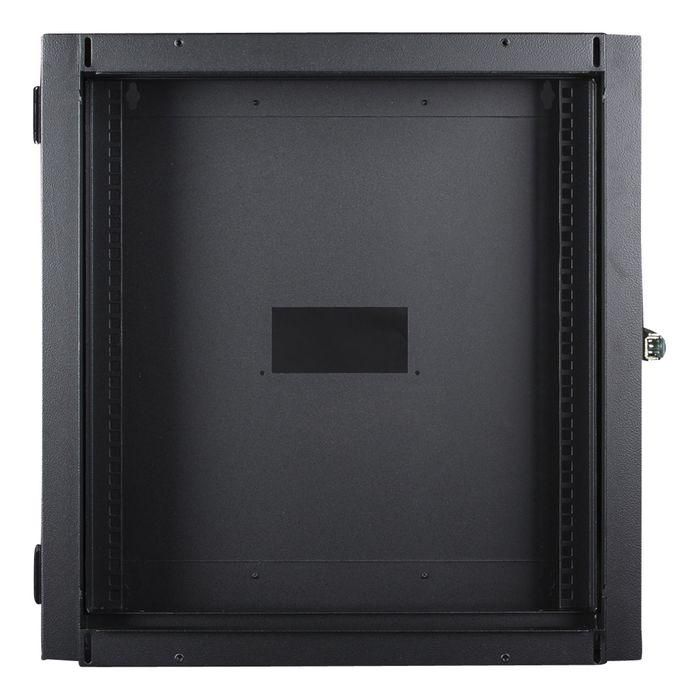

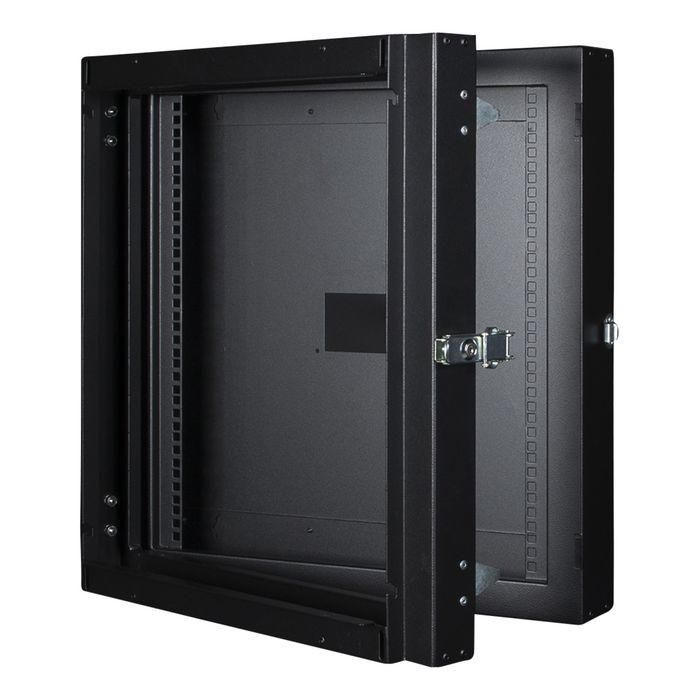

Additional depth capacity 150mm provided by the Network Series Wall Type Cabinets allows housing of cable harness. Equipments, conforming with 19" installation and of 70mm depth, may be attached inside. By means of 2 brushed cable entry modules of W=145mm x D=70 mm found on the top and bottom, and 1 cable inlet hole of W=145mm x D=70mm found at the back, it allows multi directional cable inlet. While Network Wall Type Cabinets provide access from the front and sides at its standard use, Additional Compartment applications provide 4 directional access by an extra access point at theback. By this means ease of installation and maintenance is provided.

Package dimensions(mm): 655x200x655
