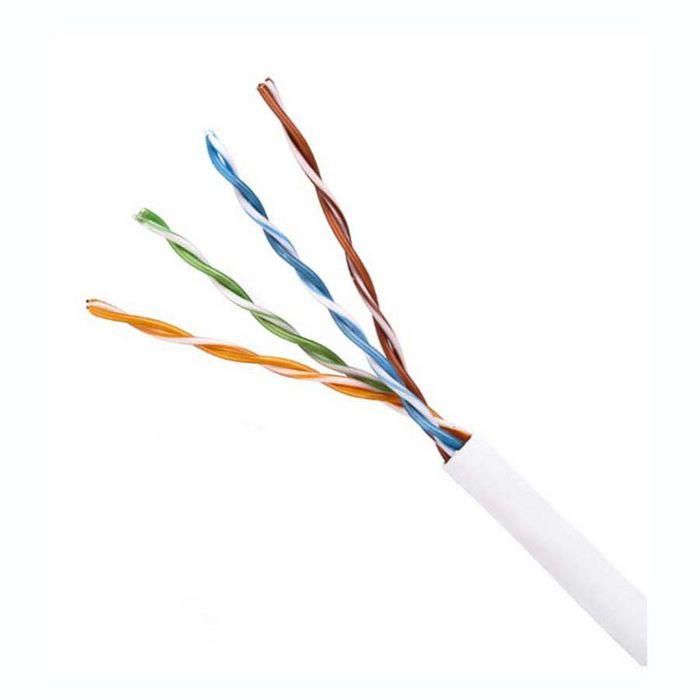

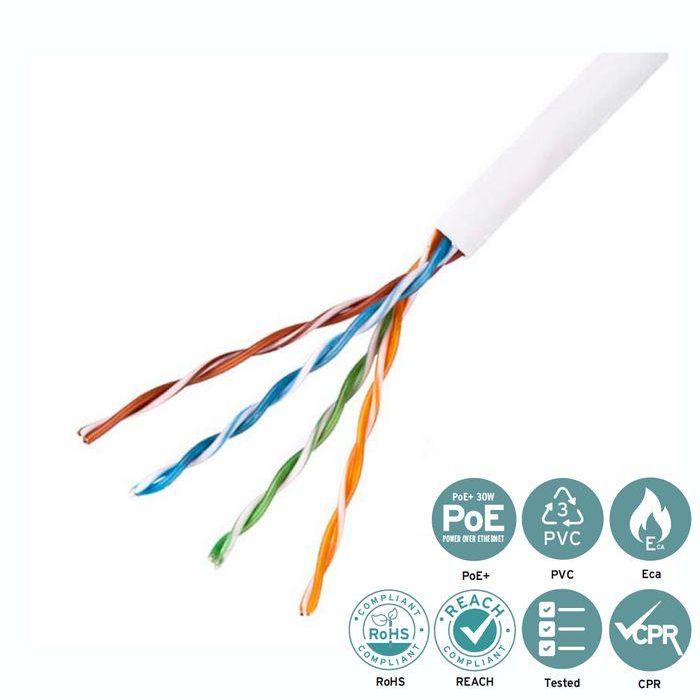

Used in structured cabling systems. Conforms to the Category 5e networking standard and is ideally suited for indoor use, Fast Ethernet, voice, data, video and multimedia applications. This is currently the most common and basic method of cable construction, consisting of pairs of wires twisted together.



There is no shielding, instead the symmetrical twist in the wires create a balanced transmission line, helping to reduce electrical noise and EMI.



Lanview Cat5e Unshielded PVC Cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors.

• Reaction-to-fire class: Eca
• AWG 24 solid copper
• EMC Class B
• 305 m REELEX box
• Meter marked cable
• Tested with 30 Watts but can also use POE++
