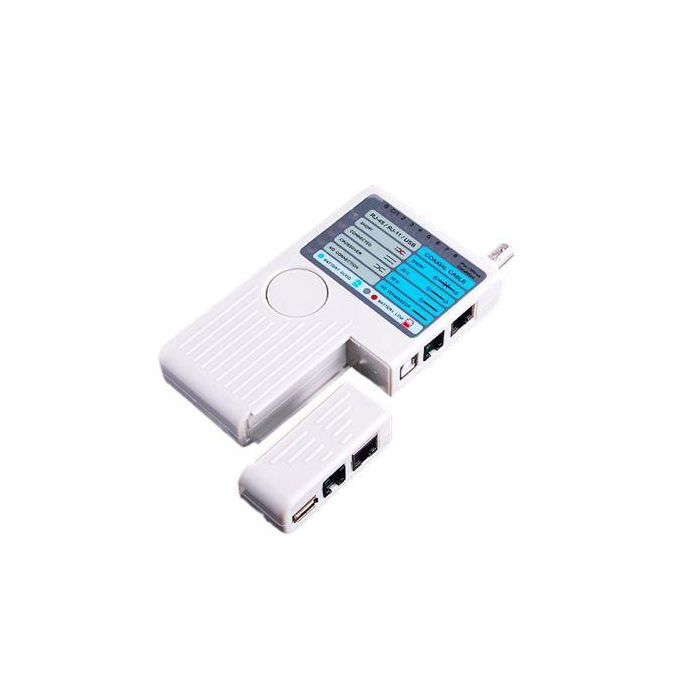

Model: Logon TCT1000

Multi cable tester for RJ45, Coax and USB

Features


Detachable module for testing 2 remote points
Ground /Open/ Short Wiring & Pinout configuration Test
Status Indicate on LED display
Ethernet 10Base2/5 CATV & Cable modem Termination value detector
Crossover Display on LED indicators
Automatic desactivation
Powered by 9V/DC Alkaline Battery


Specification


Diagnostic Cable tester for:

USOC 4/6/8
10/100
Ethernet STP/UTP
10Base2/5
CATV
Cable Modem
EIA/TIA-568
EIA/TIA-568 A/B
AT & T-258A


Cabling:

Token Ring
STP/UTP
Telephone
HOME PNA
Apple
PhoneNet
XDSL
USB


LED:

Battery condition LED (green/yellow)
Open/ No Terminator LED (Yellow)
Crossover 50 & 75 Ohm LED (Yellow)
Connection 25 & 37.5 Ohm LED ( green)
Short LED ( Red)
Shielded / Ground LED (Green)
C/1,2,3,4,5,6,7,8, LED ( yellow)

• Multi cable tester for RJ45, Coax and USB
• Detachable module for testing 2 remote points
• Ground /Open/ Short Wiring & Pinout configuration Test
• Status Indicate on LED display
• Ethernet 10Base2/5 CATV & Cable modem Termination value detector
• Crossover Display on LED indicators
• Automatic desactivation
• Powered by 9V/DC Alkaline Battery
