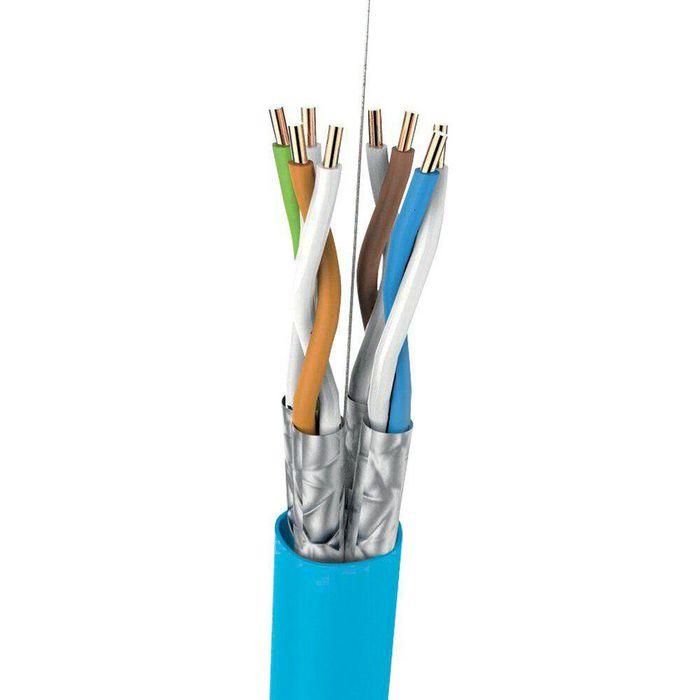

MODEL: LOGON PREMIUM LCP6UFTP5CCA

Features

Conductor：Material：solid bare copper
Diameter：0.55±0.005mm /23AWG
Insulation：Material：SKIN-FOAM-SKIN PE
Diameter：1.34±0.02mm
Overlap rate：≥25%
Drain wire：1*0.4mm tinned copper
Rip cord：optional
Jacket：Material：LSZH
Diameter：7.7±0.5mm
Thickness：0.5mm Average
Cable Lenght: 500m

Specifications
Physical Characteristics

Conductor Elongation ratio：≥15%
Insulation Tensile strength：≥15MPa
Insulation Elongation ratio：≥200%
Jacket Tensile strength：≥9.0MPa
Jacket Elongation ratio：≥100%

Electrical Characteristics（20℃）
Linear resistance：≤9.5Ω/100m
insulation resistance：≥5000MΩ/km
Unbalance capacity：≤330pF/100m
Dielectric strength :DC.1kV.1min no break

Fire Performance
Flame spread: FS≤2.0m Total heat release:THR1200s≤30MJ
Heat release rate：Peak HRR≤60kW 15MPa. Fire growth rate index:FIGRA≤300Ws-1
A Single Cable Vertical flame progagationr： H≤425mm

Install info
Working temperature：-20℃ to +60℃
Bending radius：≥10×out diameter

Standard
ISO/IEC 11801,IEC-61156-5, TIA 568.2-D,EN50173
EN50575,EN60754,EN61304, RoHS 2011/65/EU,
REACH EC 1907/2006
RoHS 2011/65/EU REACH EC 1907/2006
