Model: Logon AL9LCLC10I

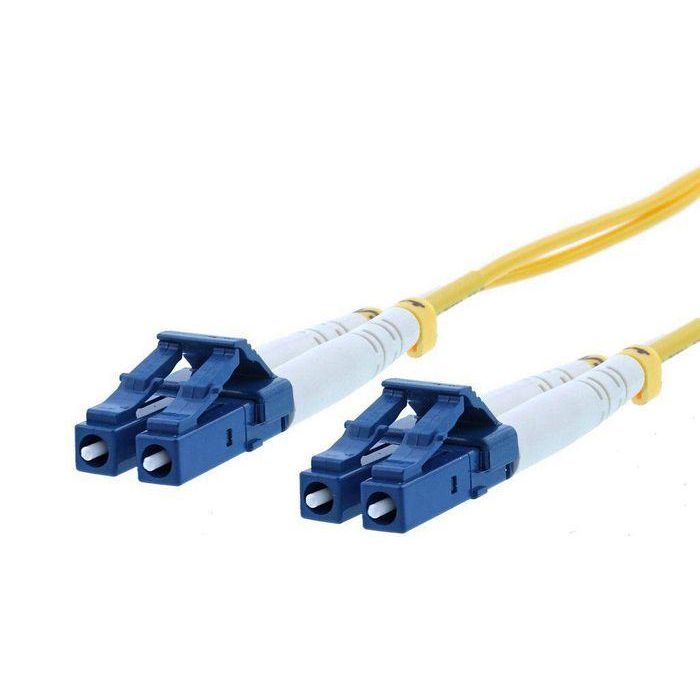

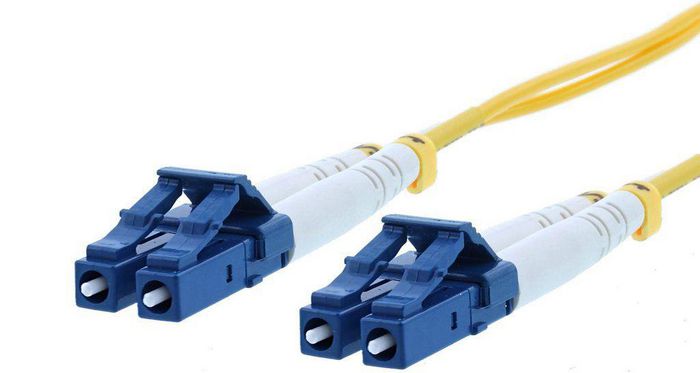

Fiber Patch Cord OS2 9/125µ LC/LC 10m

Specifications


Duplex Patch Cable 9/125µ single mode, complies to G652.D standard
I-VH 2G 9/125µ OS1/2 fiber, high-quality and better compatibility with barebone or indoor-coming components
Ø 2mm orange double-layer LSZH Jacket according to IEC standard, meeting all European countries' legal requirement
First-class CCTC Class A Ferrule
Up to 100 Gbit/s/40km
All components in aspect of material and measurement are compliant with IEC standard
DIN EN 50173-1 and IEC/ISO 11801
Pulling force of Connector is compliant with IEC standard
Test method of Insertion Loss and return Loss is compliant with IEC standard
Test method of surface hygiene is compliant with IEC Standard
100% IL and RL Test for patch cords and pigtails
100% IL for each port of Adapter
100% End face Control
20% 3D Random Test to guarantee 90% the 3D Pass Quote
Cable length with positive tolerance
Each cable includes a measure protocol
Quality Management according to ISO 90001
Connector polishing: Ultra physical contact (UPC)
