suitable for 10 Gigabit (10/100/1000/10000 Mbit) network

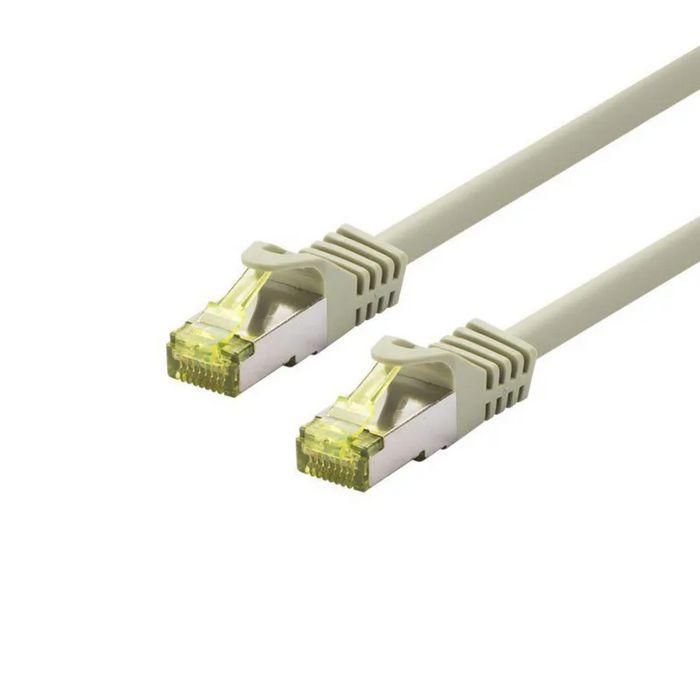

double shielded LAN/network cable to connect network components with 2 x RJ45 connectors
Cat 6(A) tested - incl. test report
with 50µ gold plated PINs
pairs screening: PIMF (pairs in metal foil) + outer shield: braiding
with length indication on the slimline strain relief
with latch protection
pair-sequence acc. to EIA/TIA 568B
Technical Data

Connections

Connection type: RJ45 plug (8P8C)
Connection 2 type: RJ45 plug (8P8C)
Connection shielding: yes
Latch protection: both sides
Cable

Cable length: 0.25 m
Shielding class: S/FTP (PiMF)
Specification: CAT 6a
Cable type: round cable
Inner conductor material: CU (copper)
AWG: 27
Number of shieldings: 2 x
Type 1 shielding: foil (alu) PiMF
Type 2 shielding: braid (aluminum)
Kink protection: both sides
LSZH compliant: yes
Signal transmission

Max. bandwidth: 500 MHz
General

Outer sheath material: LSZH
Color: grey

• Bulk Packaging
