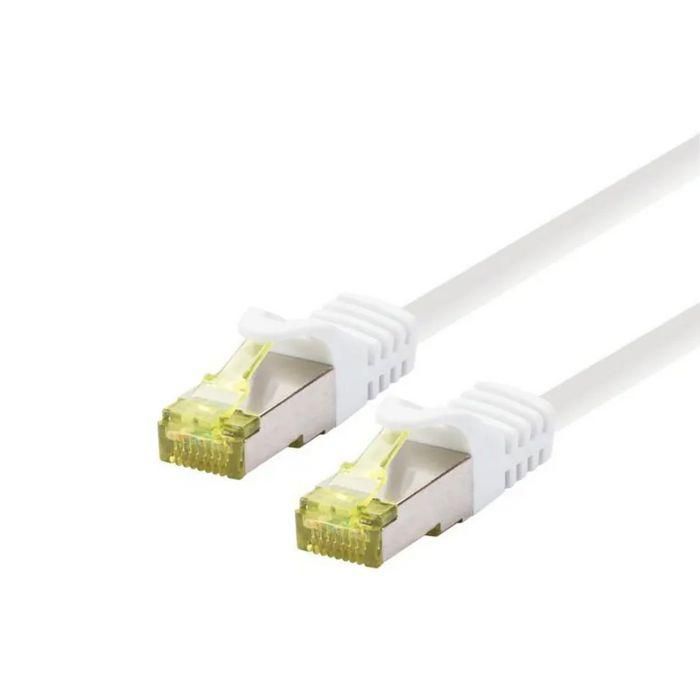

Model: Logon Professional TCR6ASS070WH

CAT 6a patch cable S/FTP (PiMF), white

Features

LSZH halogen-free, CU
suitable for 10 Gigabit (10/100/1000/10000 Mbit) network
double shielded LAN/network cable to connect network components with 2 x RJ45 connectors
Cat 6(A) tested - incl. test report
with 50µ gold plated PINs
pairs screening: PIMF (pairs in metal foil) + outer shield: braiding
with length indication on the slimline strain relief
with latch protection
pair-sequence acc. to EIA/TIA 568B

Specifications
Connections

Connection, type: RJ45 male (8P8C)
Latch protection: both sides
Connection 2, type: RJ45 male (8P8C)
Connection, shielding: yes

Cable

Cable length: 7.5 m
Material cable sheath: LSZH
Shielding class: S/FTP (PiMF)
Specification: CAT 6a
Inner conductor material: CU (copper)
Cable sheath diameter (approx.): 6 mm
Cable type: round cable
AWG: 27/7 (stranded)
Number of shieldings: 2 x
Type 1, shielding: foil (alu) PiMF
Type 2, shielding: braid (alu) overall shield
Kink protection: both sides
LSZH compliant: yes

Signal transmission

max. bandwidth: 500 MHz

General

Consumption Unit: 1 pc. in polybag
Color: white
Operating temperature: from -20 °C
Operating temperature: up to 65 °C

• Bulk Packaging
