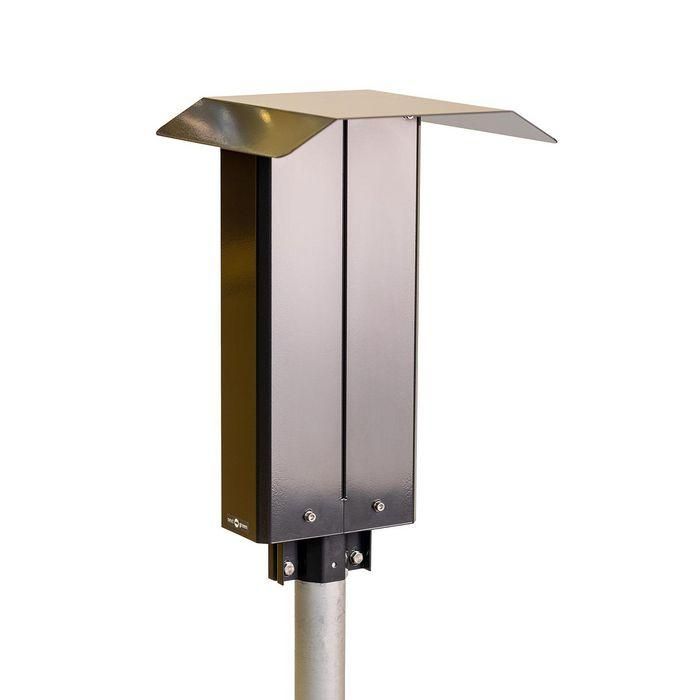

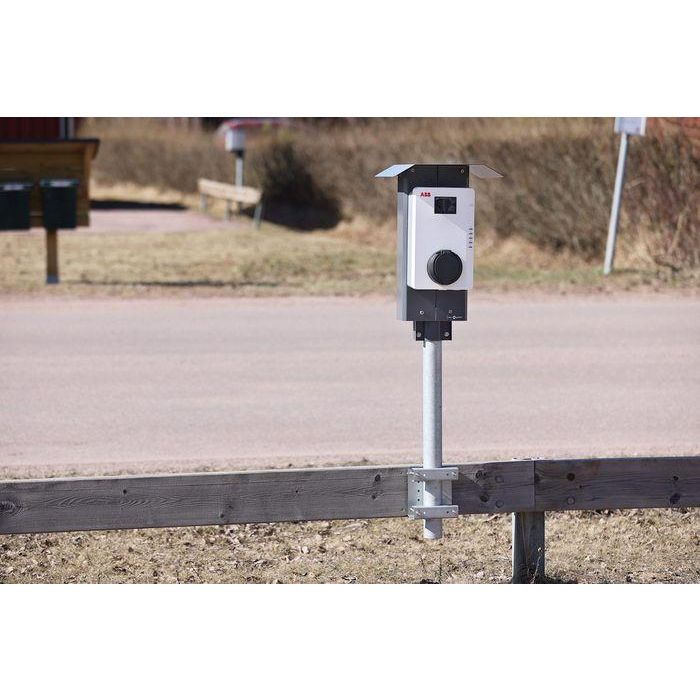

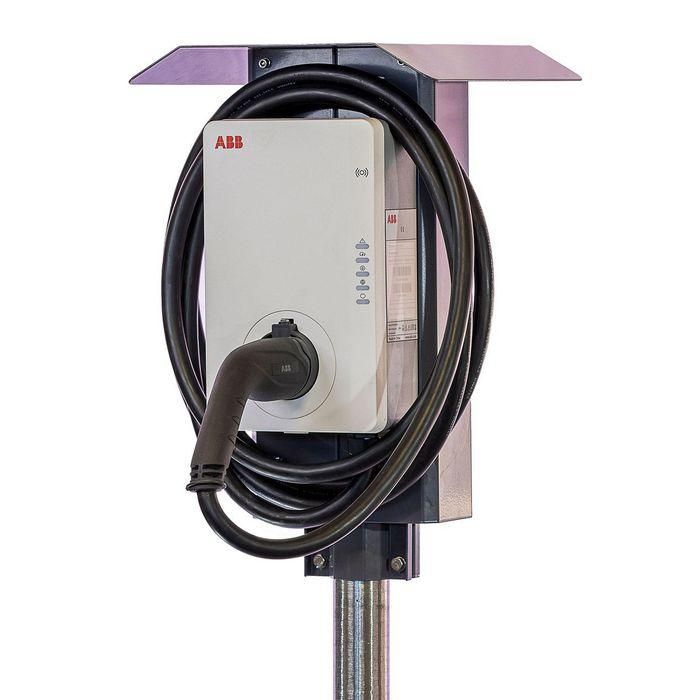

Next Green Polebox is a tube mount for EV-charging boxes for mounting on a Ø 60 mm pole or tube. The product is intended for feeding electrical cables inside the pole or tube. Polebox has a built-in distribution terminal for up to 2 x 5G25 Cu or Al power cable for extending the connection to the next charging post. From the distribution terminal in the Polebox, the respective charging box is then connected using a 5G2.5 rubber cable. Polebox comes with a DIN rail for residual current circuit breakers and can be fitted with an additional DIN rail for other units. Everything fits neatly inside the box. Polebox is made of Swedish steel and powder coated to provide the highest quality. Polebox is made to fit various range of EV-chargers. Screw holes for each charger are drilled upon installation. Polebox is very easy to install. It can be prepared indoors by mounting charging boxes and unplugging the wiring from the dispersion terminal. Polebox is then put in place outside on the existing steel tube and the charger hood is lifted and fastened. This provides easy to access for screwing supply wires into the plinth.Suitable for charging boxes with a maximum hole pattern width of 190mm and 430mm high.

• For mounting on Ø 60 mm steel tubes
• Most of the installation can be prepared indoors
• Robust steel construction
• Distribution block (1.5mm2 – 25mm2)
• Prepared for mounting an earth fault circuit breaker, 3G / 4G router
• Powder coated, available in various colors. Contact Next Green for more information.
