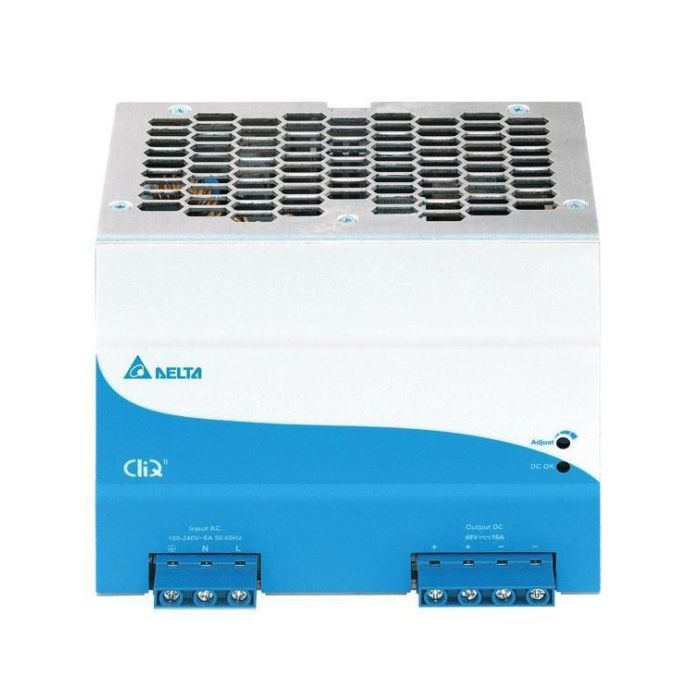

The CliQ II DIN rail power supply series from one of the world’s leading power supply companies, Delta Electronics Group, offers output voltage of 48 V. These products are encased in rugged yet lightweight full aluminium body that can withstand shock and vibration according to IEC 60068-2 standard. The DRP048V480W1B can operate over a wide temperature range of -25°C to +75°C. The series of single phase products also features universal AC input voltage range from 85 Vac to 264 Vac and the power will not de-rate throughout the entire range. Another great feature is the conformal coating on the PCBA which allows selected models to be certified to ATEX and Class I, Div 2 for use in hazardous locations. The design conforms to harmonic current emission IEC/EN 61000-3-2, Class A.

• Universal AC input voltage range
• Power will not de-rate for the entire input voltage range
• Power Boost of 150% for 5 seconds and 200% for 2 seconds
• Conforms to harmonic current IEC/EN 61000-3-2, Class A Extreme low temperature cold start at -40°C
• Conformal coating on PCBAs to protect against common dust and chemical pollutants
