The DWMM8[X]-6-60-[X] antenna provides a 2x 4×4 MiMo omnidirectional antenna solution for global 4G/5G networks covering 617-6000MHz. It features
eight separately fed ultra-wideband elements in a single housing and is suitable for a wide range of fixed-site branch office and enterprise failover applications using dual modems.

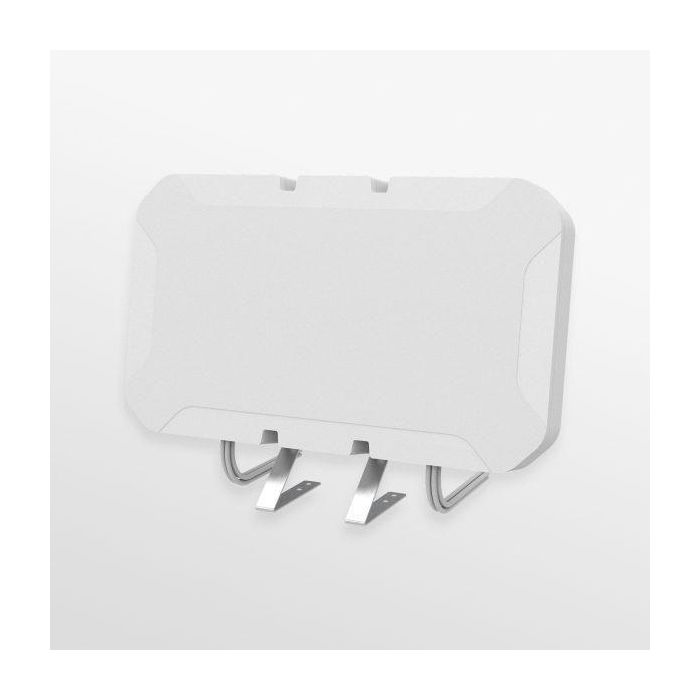

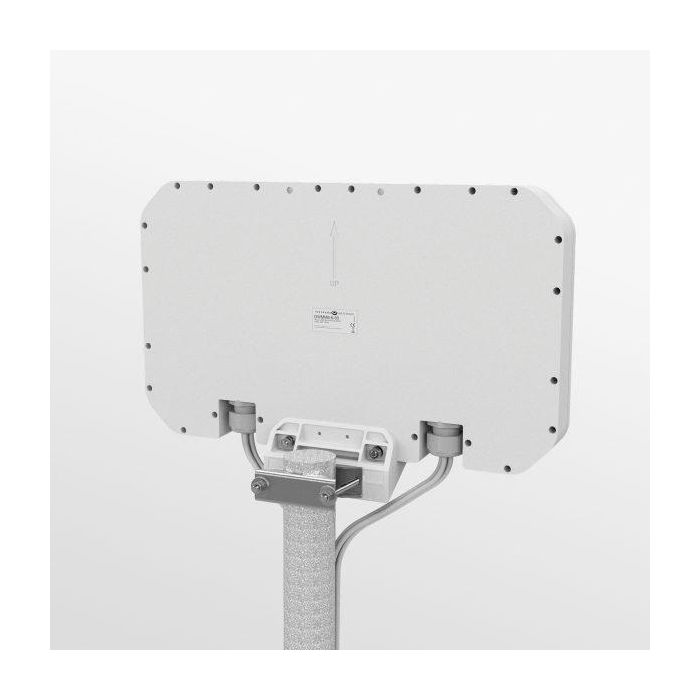

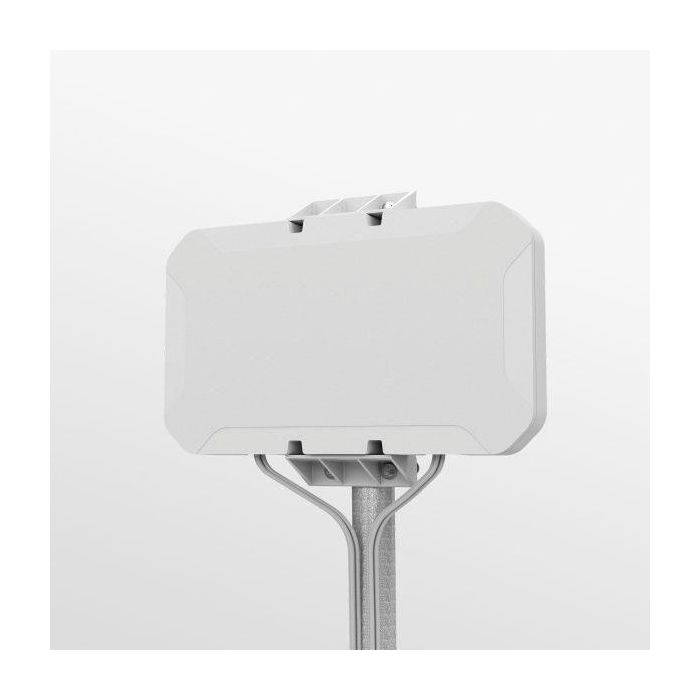

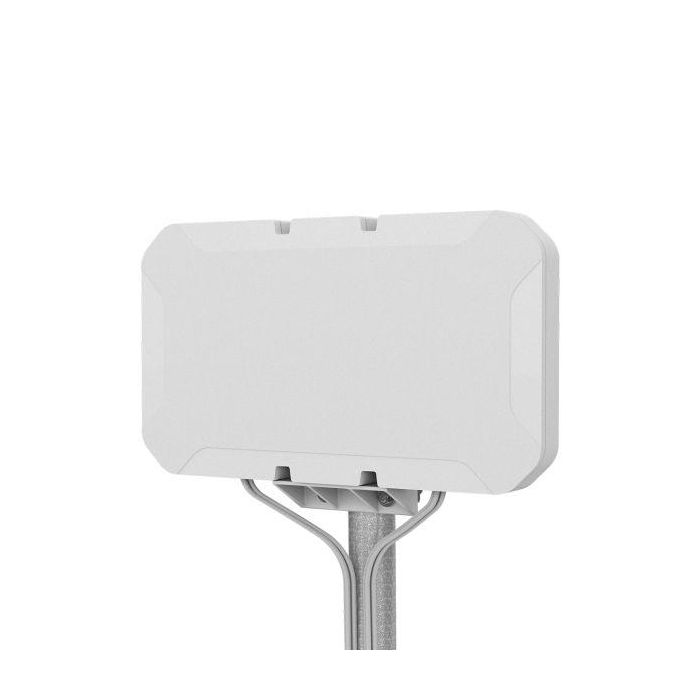

The mounting bracket enables mast mounting using the supplied clamp assembly or it can be wall-mounted using the supplied screws and wall plugs. The antenna can be fitted directly to non-conductive panels or internal walls and mounting feet are supplied to allow it to be stood on a desk or window sill. The omni-directional radiation pattern allows easy placement of the antenna without consideration of directional alignment and makes it ideal where access to multiple network sites is required. The DWMM8G version incorporates an integral GPS/GNSS antenna with 26dB or 30dB / 26dB LNA gain and advanced filtering for resilient operation.

The antenna has integral flame retardant coaxial cables, which eliminate or reduce exposed connector joints and simplify installation. Versions with SMA plugs offer direct connection to many routers while those with N Jacks allow connection of longer cables runs of low loss cable.
