Marca: ASUS

Part Number: 90MB1DS0-M1EAY0

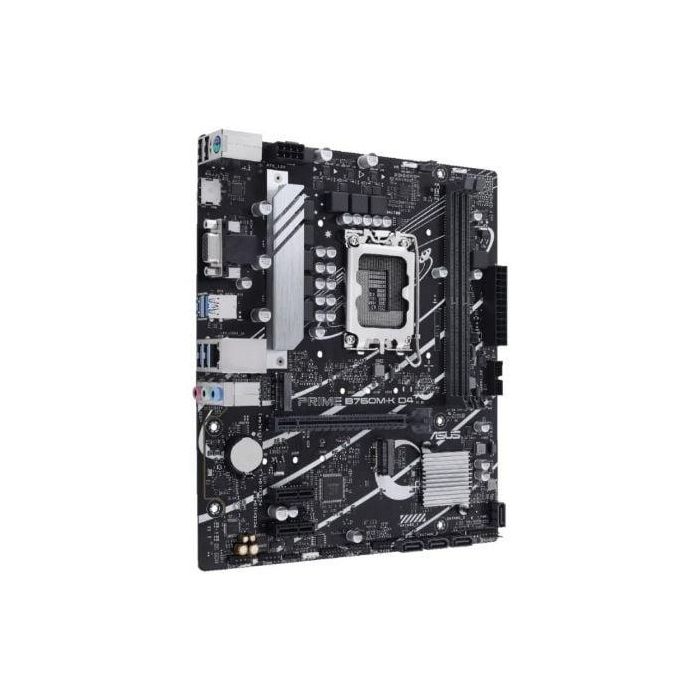

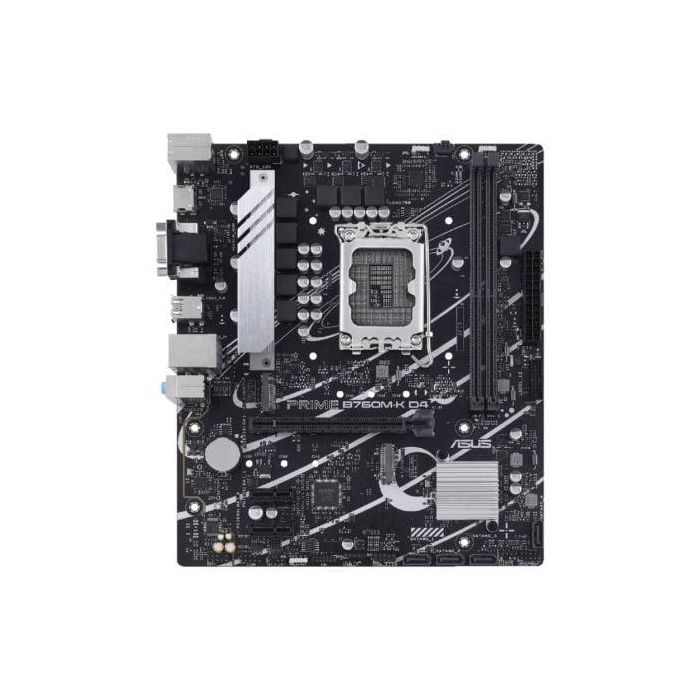

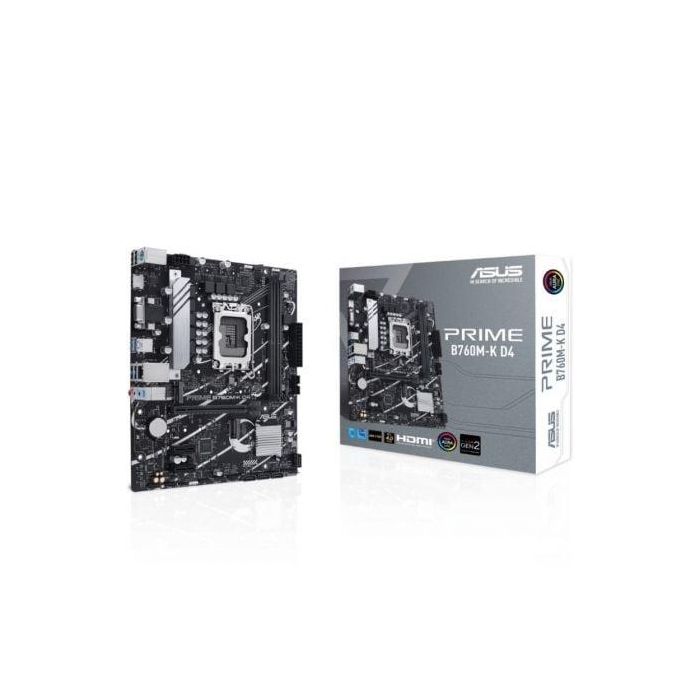

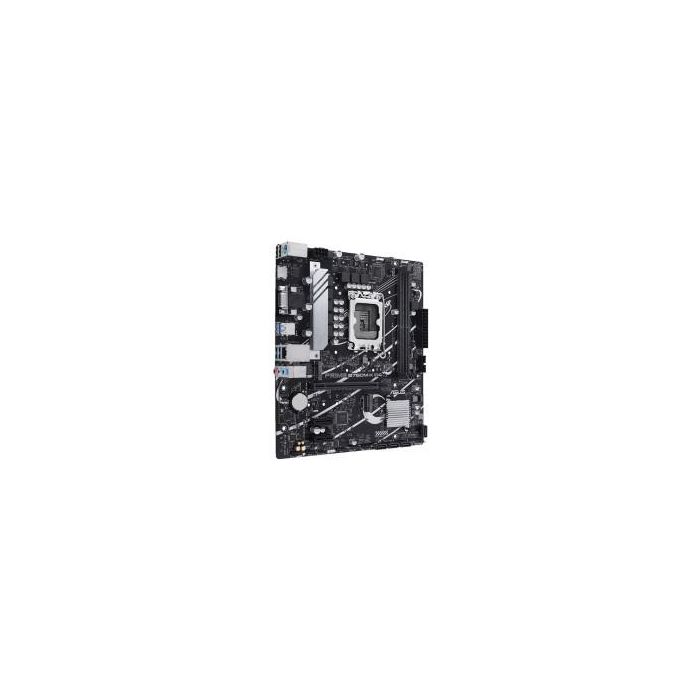

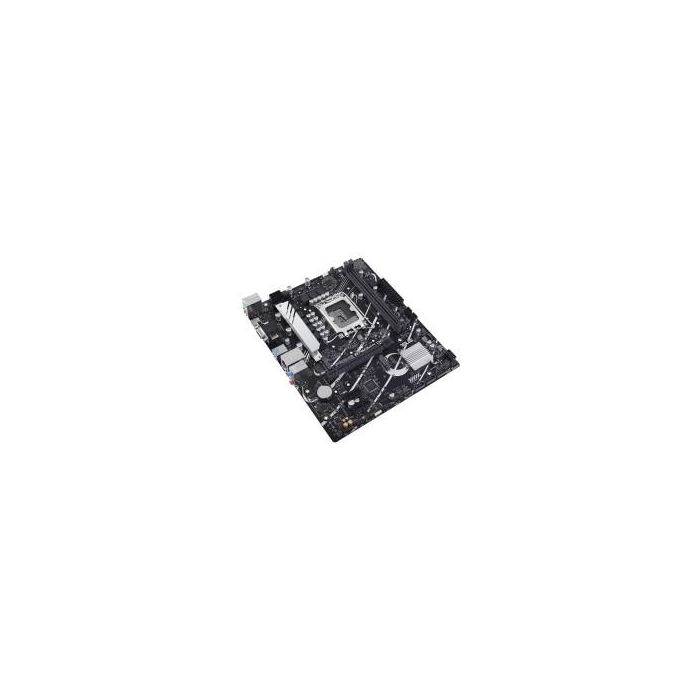

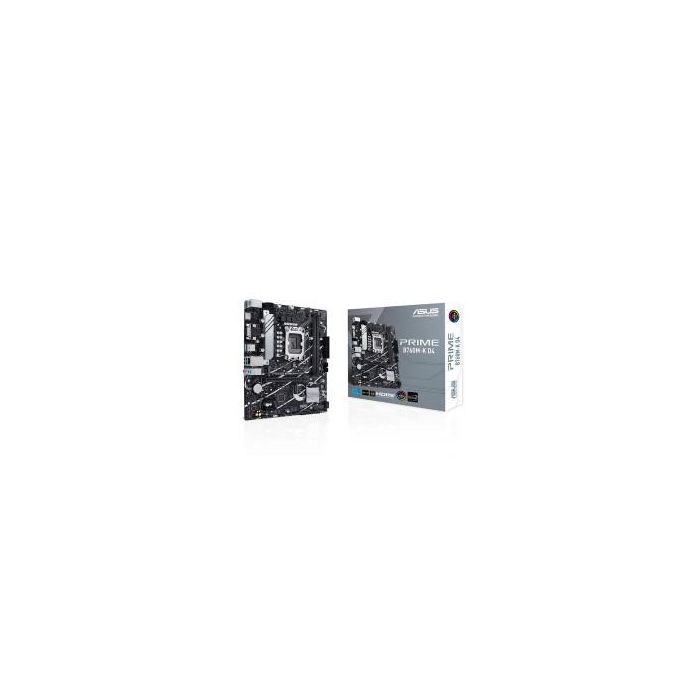

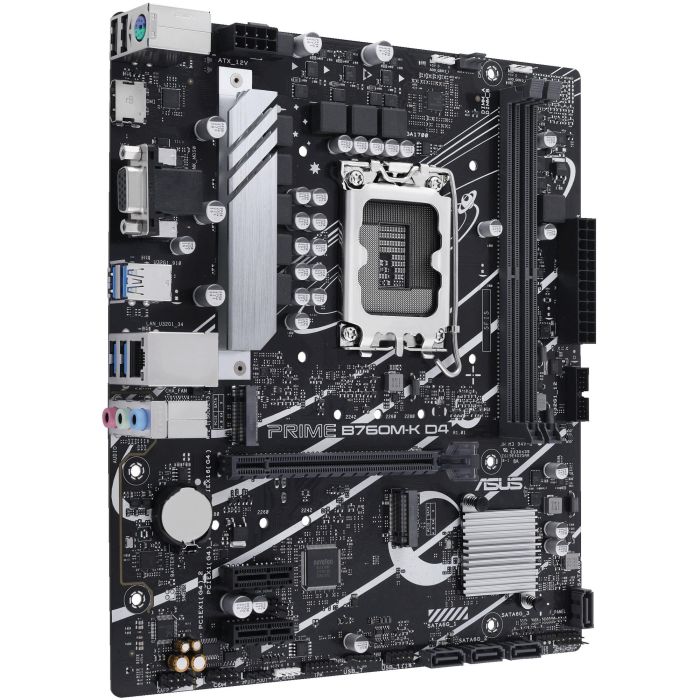

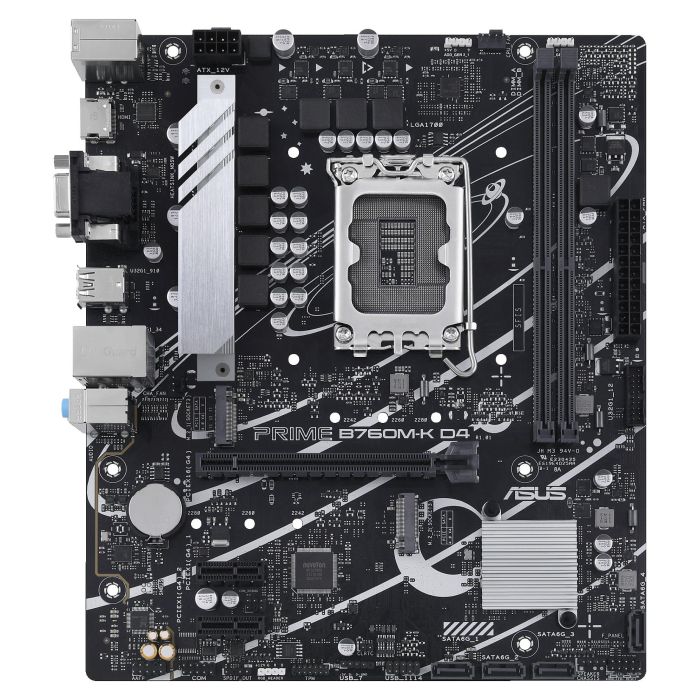

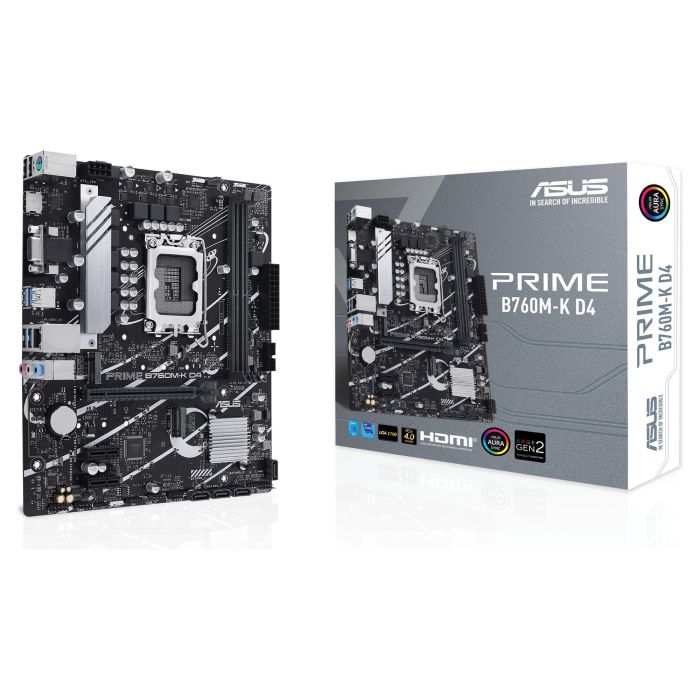

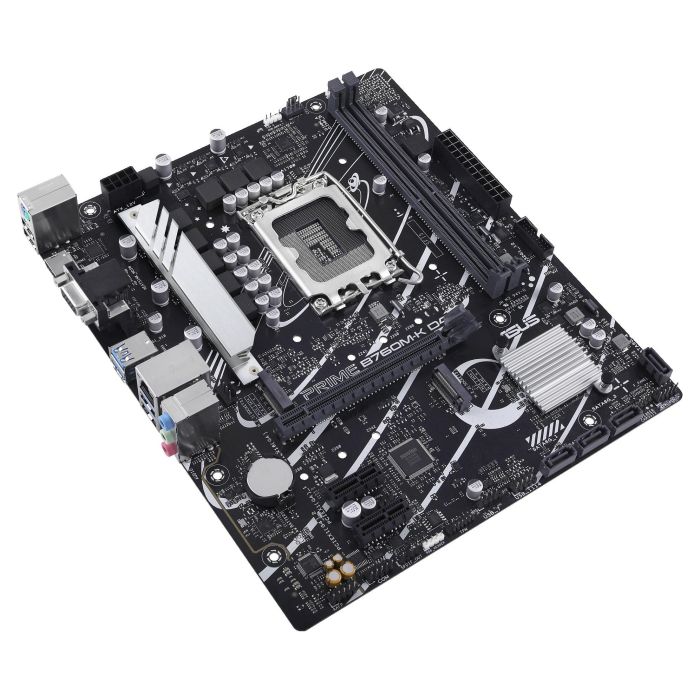

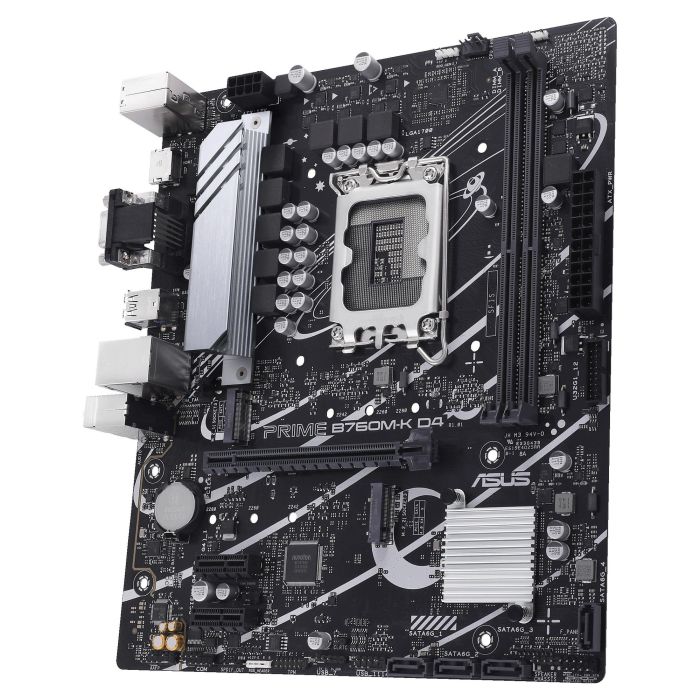

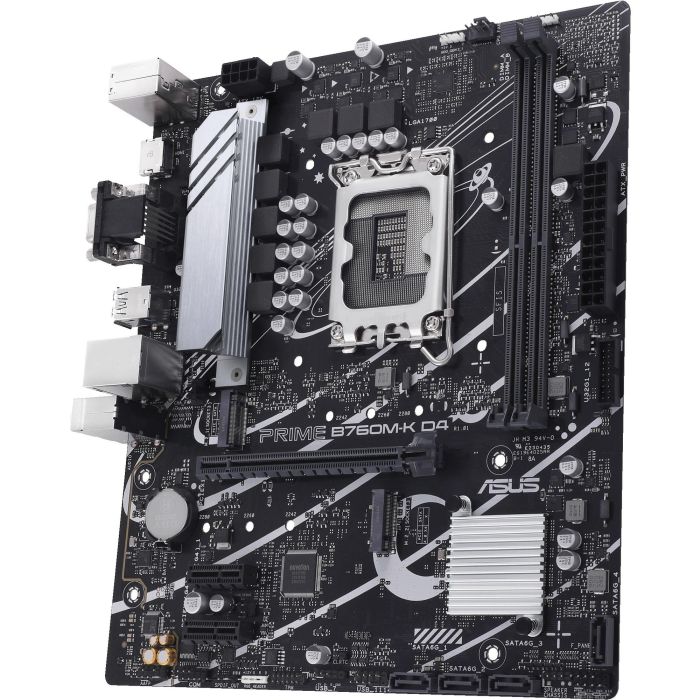

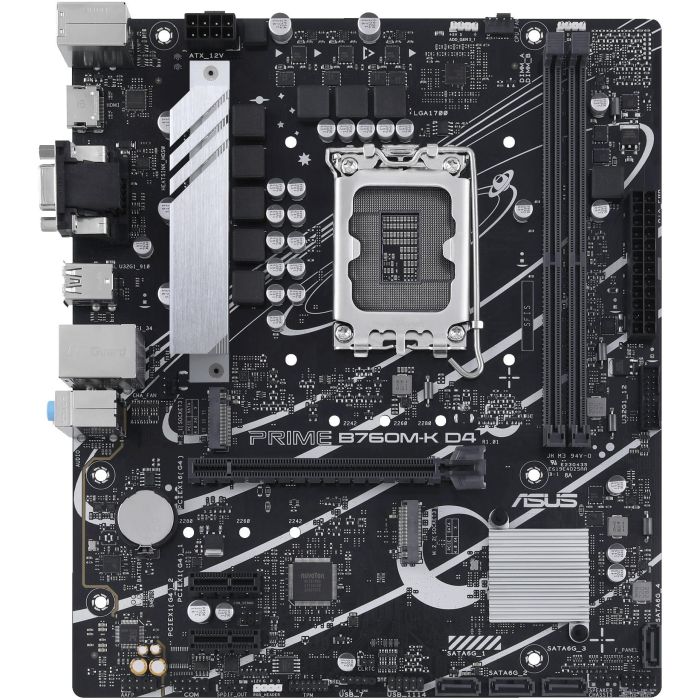

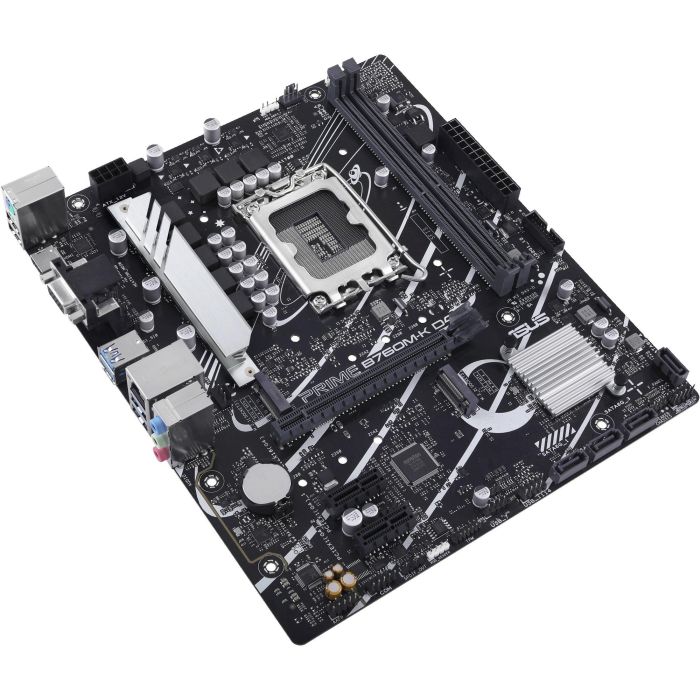

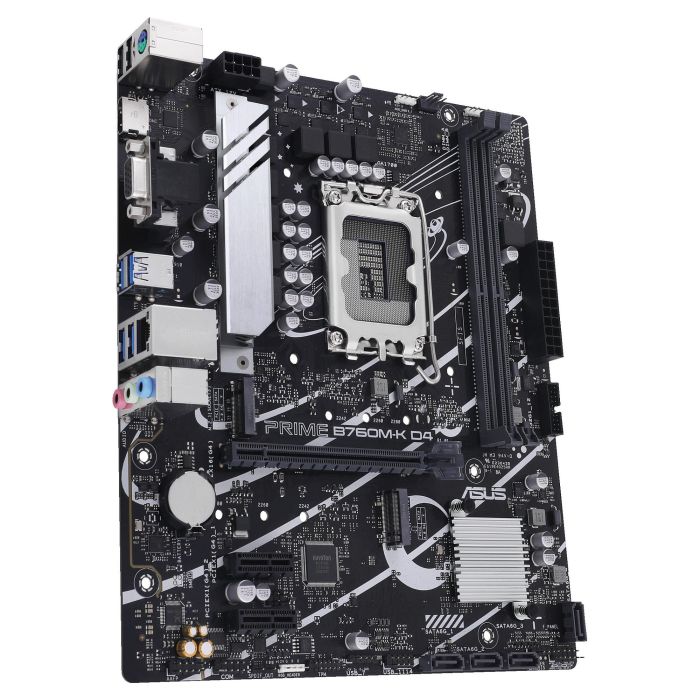

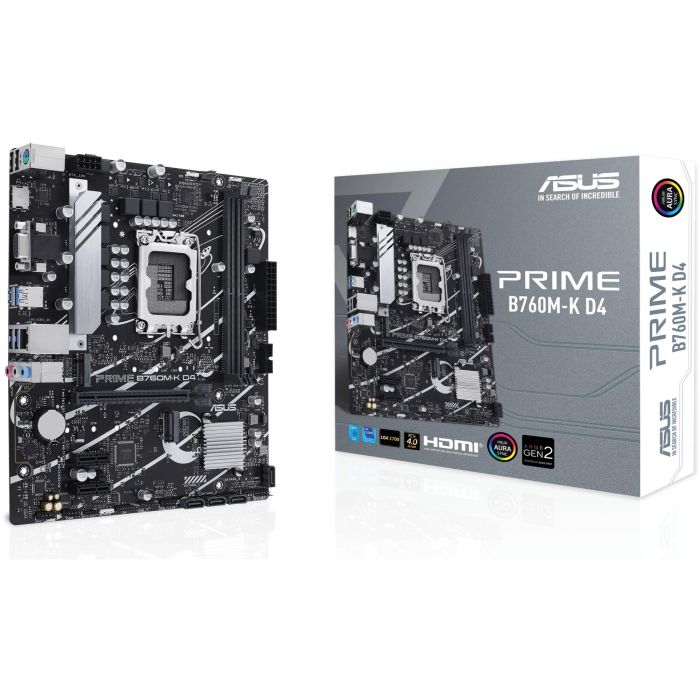

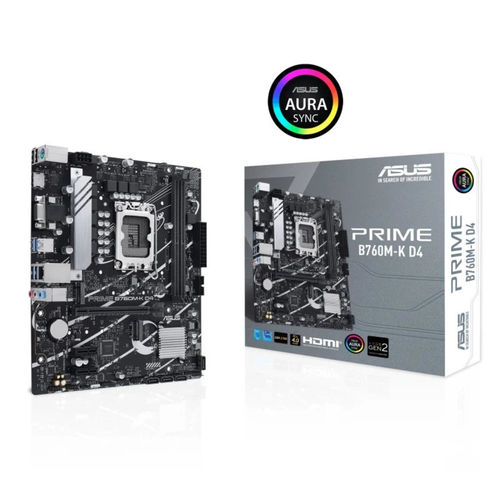

La placa base ASUS PRIME B760M-K D4 diseñada para procesadores híbridos Intel Core de 12ª y 13ª generación es ideal para montar un sistema potente y versátil. Las placas base ASUS Prime están diseñadas y fabricadas para usuarios exigentes que buscan un rendimiento constante y fiabilidad a largo plazo. Aprovechan al máximo sus componentes con un diseño único hecho de materiales robustos y utilidades exclusivas. Incorporan funciones profesionales y combinan las ventajas de los nuevos procesadores Intel con el diseño y las características icónicas de ASUS.

Características:

-Compatibilidad con los procesadores Intel Core de 12ª y 13ª generación en el zócalo LGA 1700
-Compatible con memoria DDR4, hasta 5333 MHz (OC)
-2 x 4 ranuras M.2 PCIe 4.0 + 4 puertos SATA 6 Gbps
-Ranura PCI-Express 4.0 16x
-ASUS 5X PROTECTION III con DIGI+ VRM, LANGuard, Protección contra sobretensiones
-LAN de 2,5 GbE
-Sincronización Aura y compatibilidad con ventilador ARGB
-Formato Micro ATX

Especificaciones
CPU
-Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
-Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
-Intel® B760 Chipset
Memory
-2 x DIMM, Max. 64GB, DDR4
-5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
-Dual Channel Memory Architecture
-Supports Intel® Extreme Memory Profile (XMP)
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to for memory support list.
Graphics
-1 x VGA port
-1 x HDMI® port**
* Graphics specifications may vary between CPU types. Please refer to for any updates.
** Supports 4K@60Hz as specified in HDMI® 2.1.
Expansion Slots
-Intel® 13th & 12th Gen Processors
-1 x PCIe 4.0 x16 slot
-Intel® B760 Chipset
-2 x PCIe 4.0 x1 slots
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
-Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
-Intel® 13th & 12th Gen Processors
-M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
-Intel® B760 Chipset
-M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
-4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 2.5Gb Ethernet
USB
-Rear USB (Total 6 ports)
-4 x USB 3.2 Gen 1 ports (4 x Type-A)
-2 x USB 2.0 ports (2 x Type-A?
-Front USB (Total 5 ports)
-1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
-2 x USB 2.0 headers support 3 additional USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

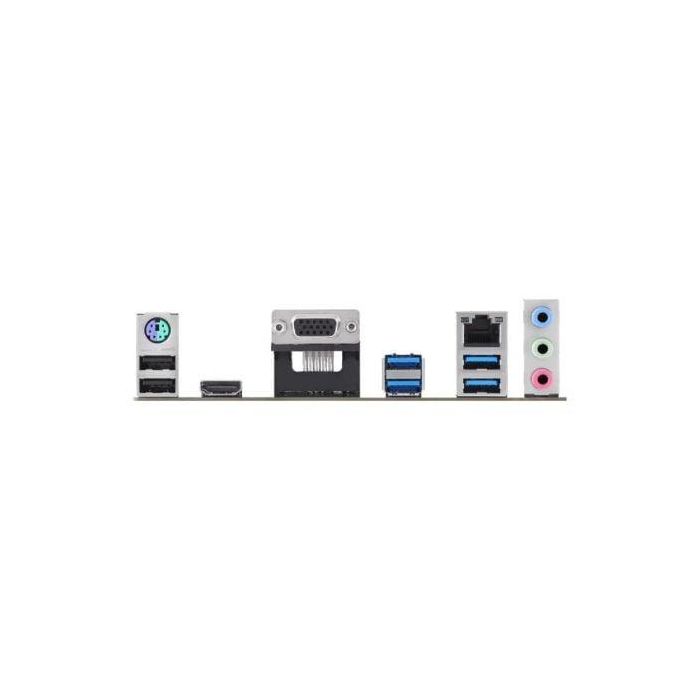

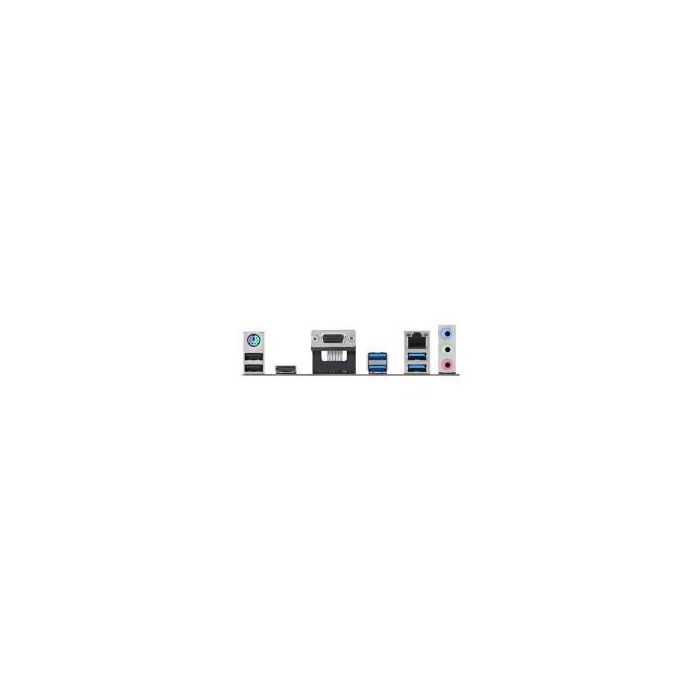

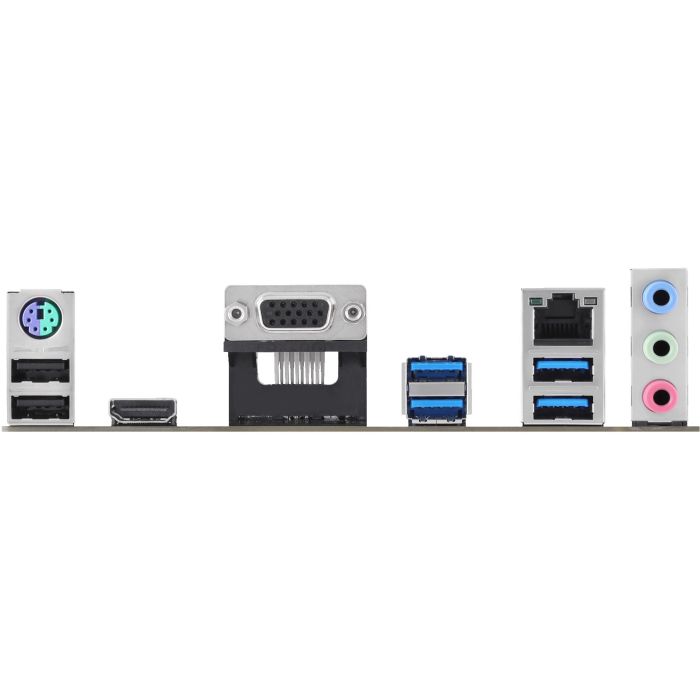

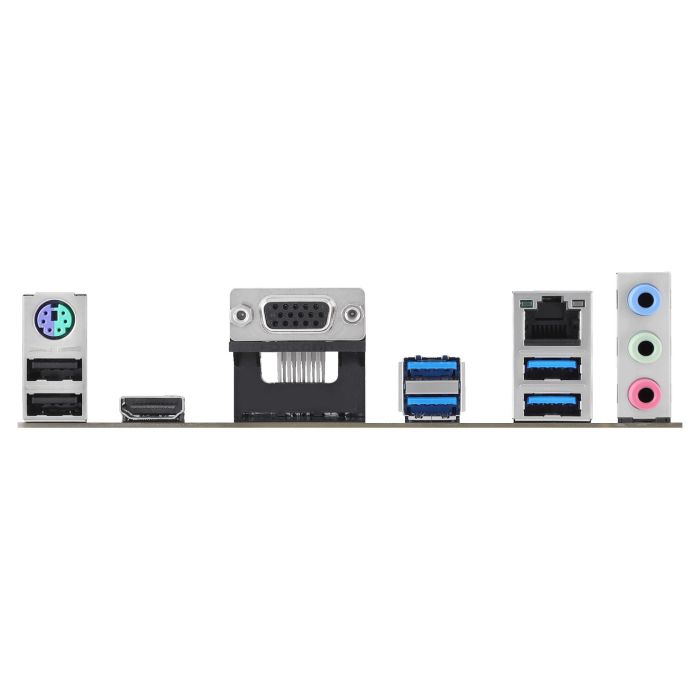

Back Panel I/O Ports
-4 x USB 3.2 Gen 1 ports (4 x Type-A)
-2 x USB 2.0 ports (2 x Type-A)
-1 x VGA port
-1 x HDMI® port
-1 x Realtek 2.5Gb Ethernet port
-3 x Audio jacks
-1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
-Fan and Cooling related
-1 x 4-pin CPU Fan header
-1 x 4-pin Chassis Fan header
-Power related
-1 x 24-pin Main Power connector
-1 x 8-pin +12V Power connector
-Storage related
-2 x M.2 slots (Key M)
-4 x SATA 6Gb/s ports
-USB
-1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
-2 x USB 2.0 headers support 3 additional USB 2.0 ports
-Miscellaneous
-2 x Addressable Gen 2 headers
-1 x Aura RGB header
-1 x Clear CMOS header
-1 x COM Port header
-1 x Front Panel Audio header (AAFP)
-1 x S/PDIF Out header
-1 x Speaker header
-1 x SPI TPM header (14-1pin)
-1 x 10-1 pin System Panel header
Special Features
-ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS EZ DIY
- ProCool
ASUS Thermal Solution
- VRM heatsink design
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert
- Power Saving
-AI Suite 3
- DIGI+ VRM
- PC Cleaner
-ASUS CPU-Z
-Norton 360 Deluxe (60 Days Free Trial)
-WinRAR
-UEFI BIOS
-ASUS EZ DIY
-ASUS CrashFree BIOS 3
-ASUS EZ Flash 3
-ASUS UEFI BIOS EZ Mode
BIOS
-128 Mb Flash ROM, UEFI AMI BIOS
Manageability
-WOL by PME, PXE
Accessories
Cables
-2 x SATA 6Gb/s cables
Miscellaneous
-1 x I/O Shield
-2 x M.2 anchors
Documentation
-1 x User guide
Operating System
-Windows® 11, Windows® 10 64-bit
Form Factor
-mATX Form Factor
-9.6 inch x 8.3 inch (24.4cm x 21.1cm)
