CPU Intel Socket LGA1200 for 11th Gen Intel Core processors &
10th Gen Intel Core, Pentium Gold and Celeron Processors*
Supports up to Intel 65W CPU
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost
Max Technology 3.0**
* Refer to for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the
CPU types.
Chipset Intel H510 Chipset
Memory 2 x DIMM, Max. 64GB, DDR4 3200(OC)/2933/2800/2666/2400/2133
MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* 10th Gen Intel Core i7/i9 processors support
2933/2800/2666/2400/2133 natively, others will run at the maximum transfer
rate of DDR4 2666 MHz.
* 11th Gen Intel processors support 2933/2800/2666/2400/2133
natively.
* Refer to for the Memory QVL (Qualified Vendors
Lists), and memory frequency support depends on the CPU types.
Graphics 1 x D-Sub
1 x DVI-D
1 x HDMITM 1.4 / 2.0**
* Graphics specifications may vary between CPU types.
** Only Intel 11th Gen processors support HDMI 2.0 with max.
resolution of 4K@60Hz, others will only support HDMI 1.4 with max.
resolution of 4K@30Hz. Please refer to for any updates.
Expansion Slots Intel 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel 11th Gen processors support PCIe 4.0 x16 mode
- Intel 10th Gen processors support PCIe 3.0 x16 mode
Intel H510 Chipset
1 x PCIe 3.0 x1 slot
Storage Total supports 4 x SATA 6Gb/s ports
Intel H510 Chipset
4 x SATA 6Gb/s ports
Ethernet 1 x Realtek 1Gb Ethernet
USB Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio "Realtek ALC897 7.1 Surround Sound High Definition Audio
CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-
retasking- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required
to support 7.1 Surround Sound audio output.

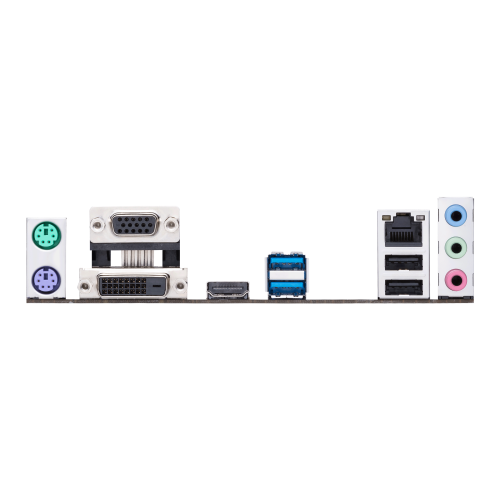

Back Panel I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
Storage related
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
Software Features ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
Installation Media
1 x Support DVD
Documentation
1 x User manual
Operating System Windows 10 64-bit
Form Factor mATX Form Factor
8.4 inch x 7.4 inch ( 21.3 cm x 18.8 cm )
