Marca: MSI

Part Number: 911-7D46-003

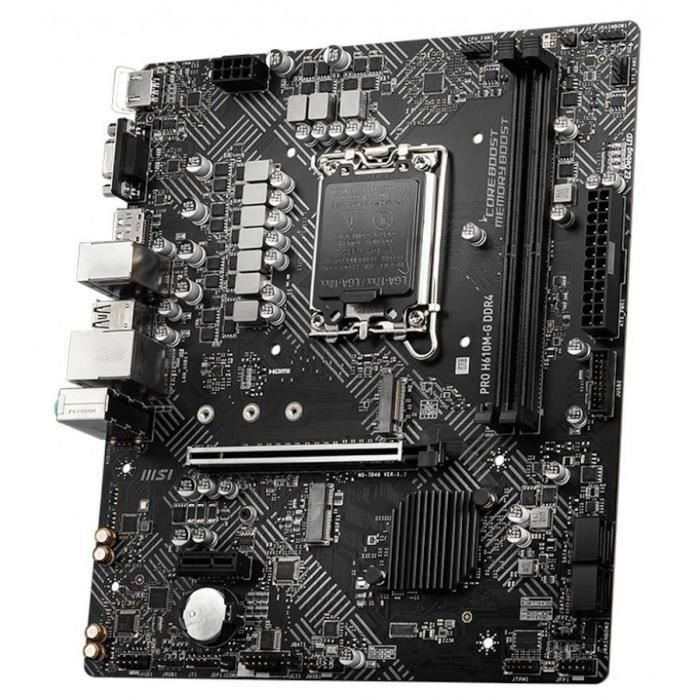

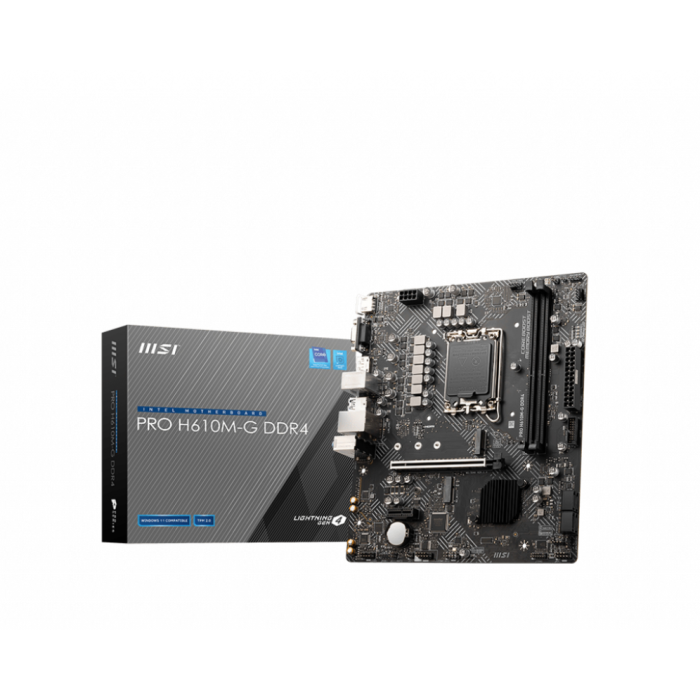

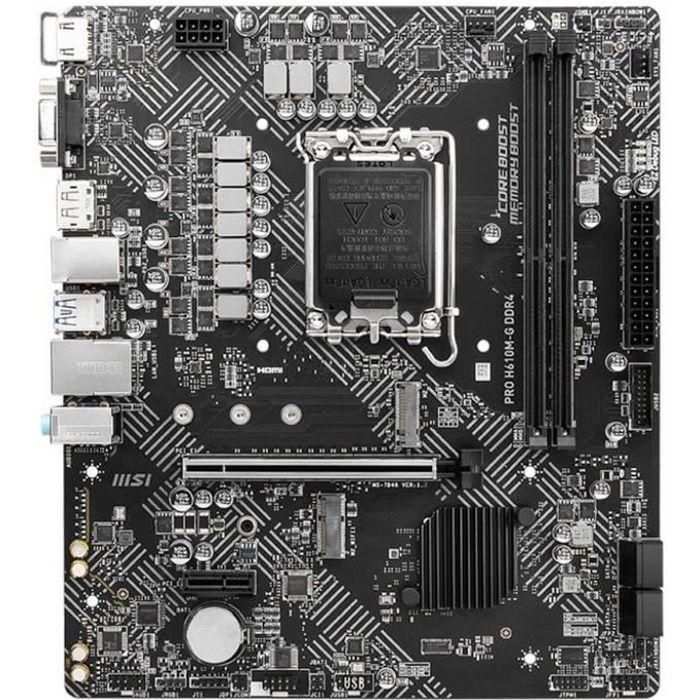

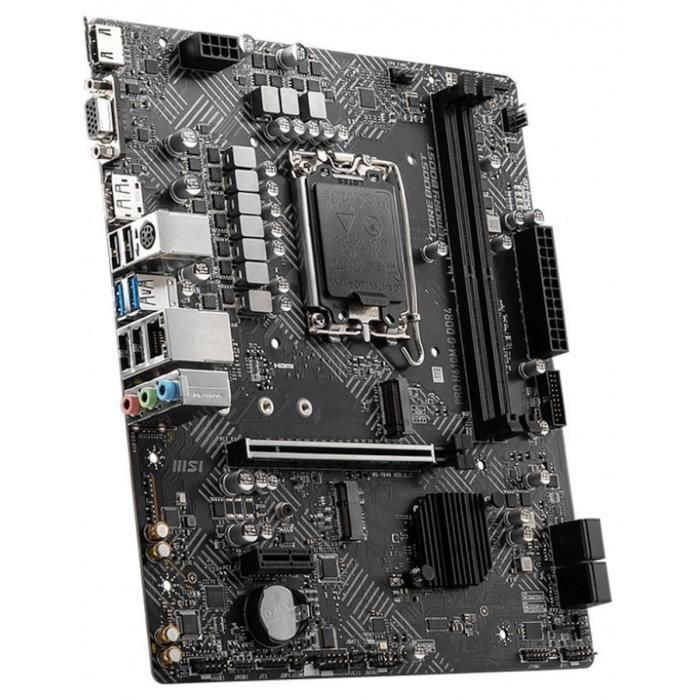

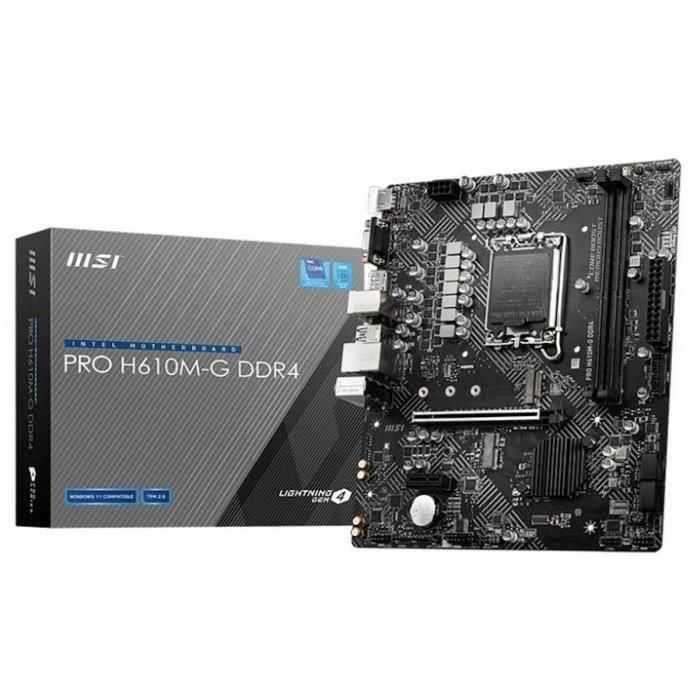

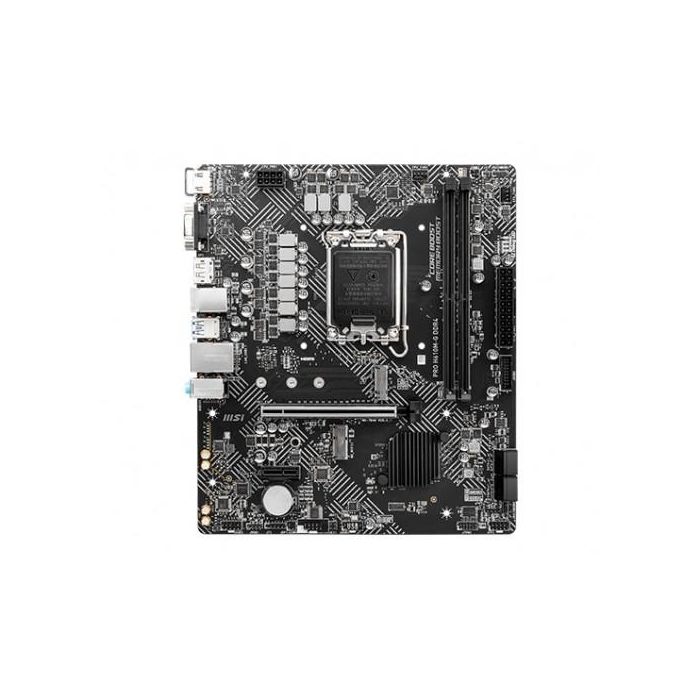

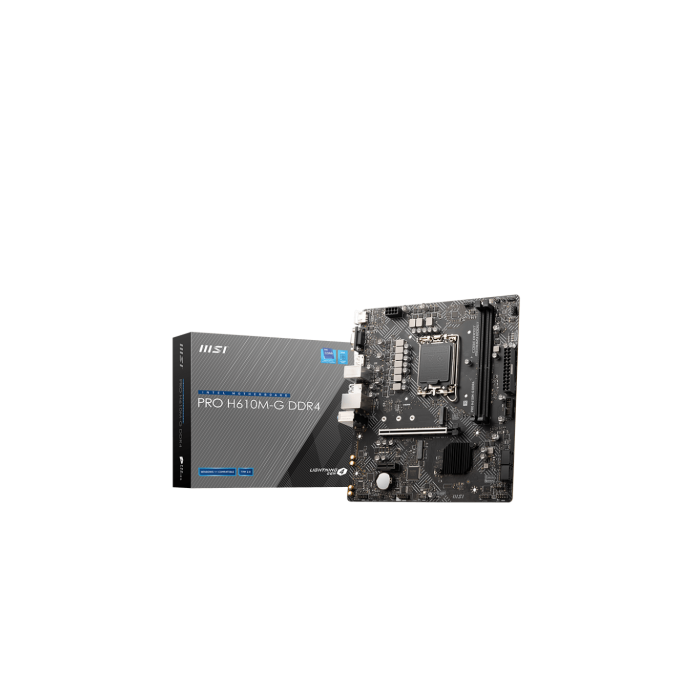

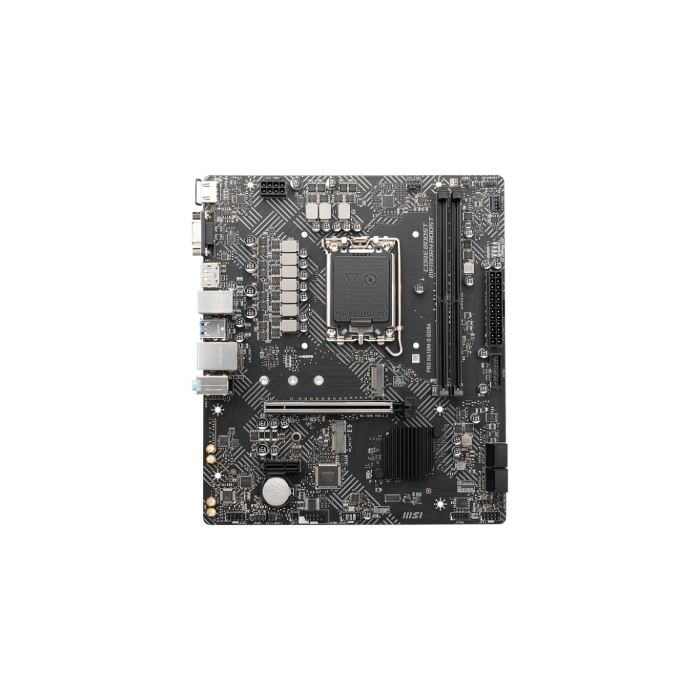

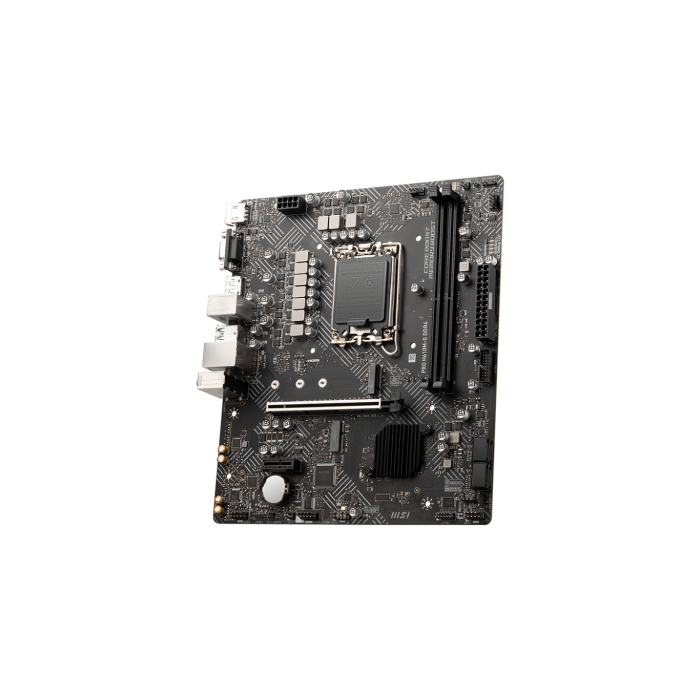

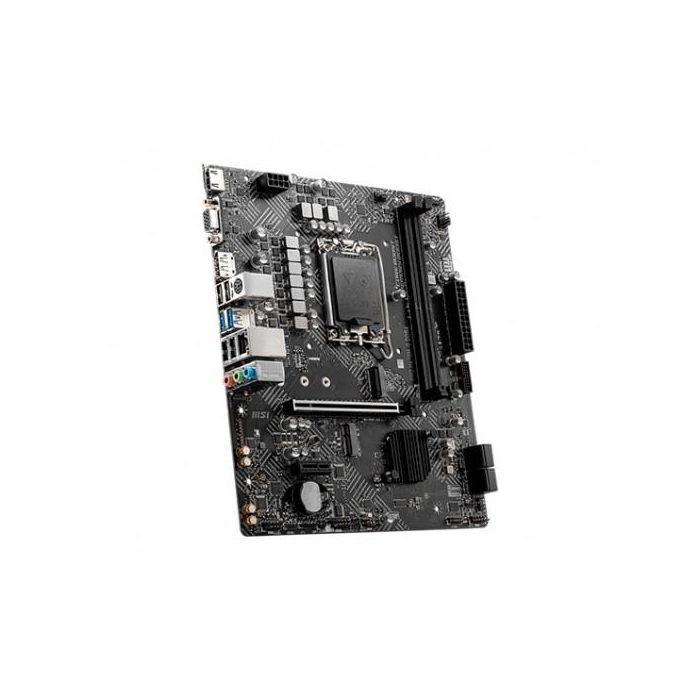

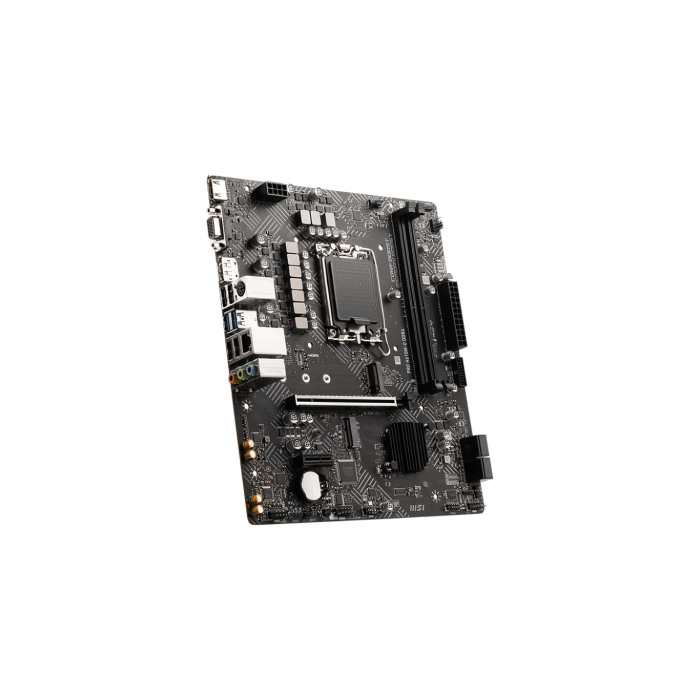

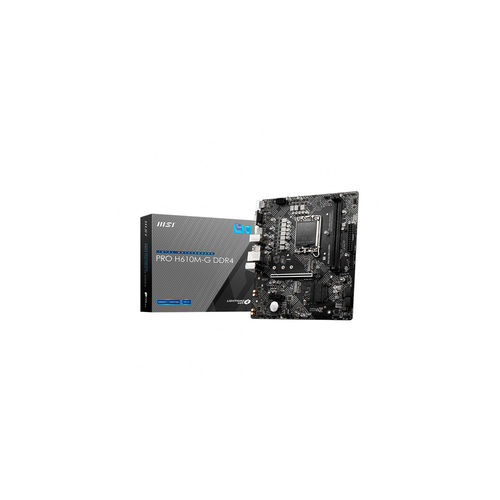

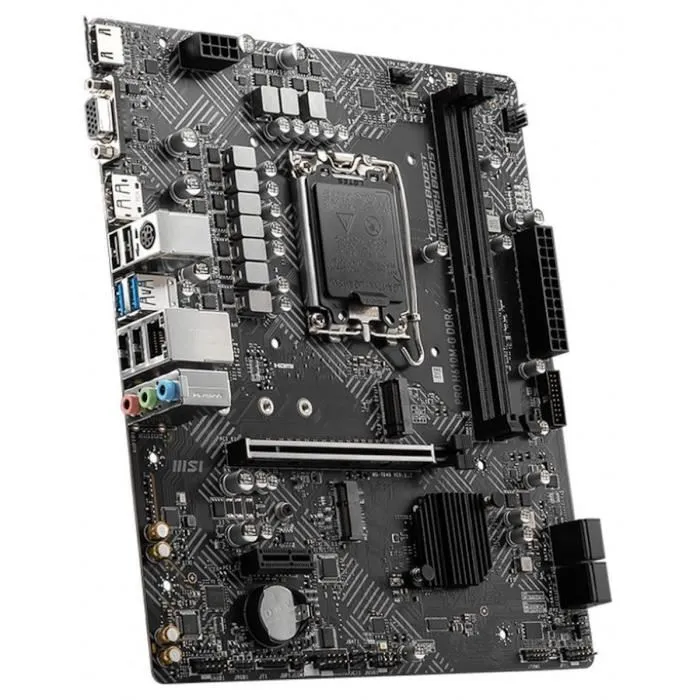

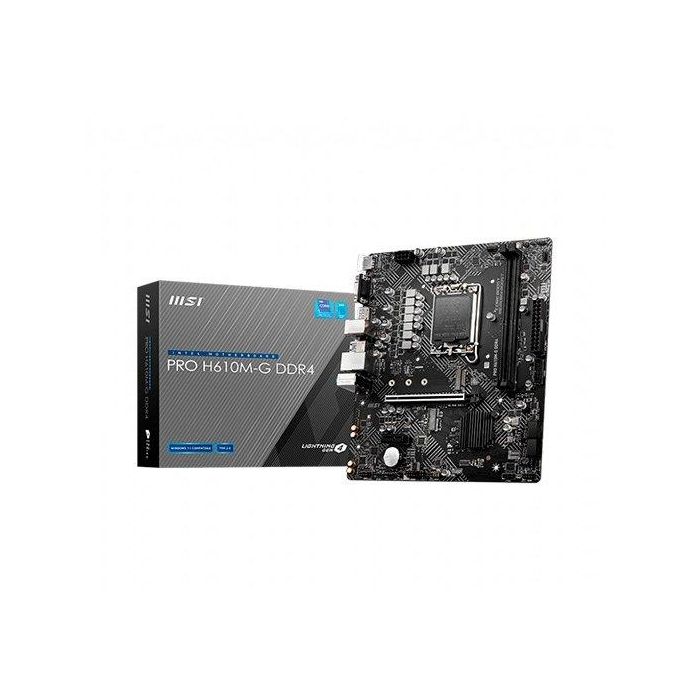

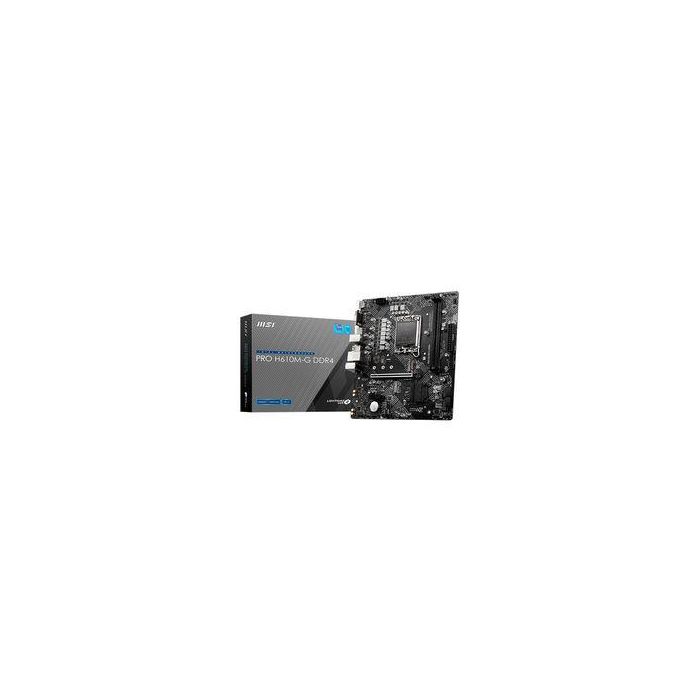

Compra la MSI Pro H610M-G DDR4 al mejor precio en Neobyte y equipa tu PC workstation con una placa base de garantías. Este modelo con formato micro-ATX se adaptará a todo tipo de configuraciones gracias a sus reducidas dimensiones, sin renunciar a una completa conectividad y a una fabricación de calidad que segura un uso duradero. Es compatible con memorias RAM DDR4 y procesadores Intel Core de 12ª generación, así como con sistemas de almacenamiento de alto rendimiento. Apuesta por la MSI Pro H610M-G DDR4.

Procesador
-Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
-Processor socket LGA1700

Chipset
-Intel® H610 Chipset

Memoria
-2x DDR4 memory slots, support up to 64GB
-Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
-Supports Dual-Channel mode
-Supports non-ECC, un-buffered memory

Slots
-1x PCIe x16 slot (From CPU)
-Supports up to PCIe 4.0 x16
-1x PCIe x1 slot
-Supports PCIe 3.0 x1
-1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)

Gráficos
-1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
-1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
-x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

Almacenamiento

-4x SATA 6Gb/s ports
-1x M.2 slot (Key M, from chipset)1
-Supports up to PCIe 3.0 x4
-Supports up to SATA 6Gb/s
-Supports 2242/ 2260/ 2280 storage devices
-Supports Intel® Smart Response Technology for Intel Core™ processors

USB
-Intel® H610 Chipset
-4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
-6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

Audio
-Realtek® ALC892/ ALC897 Codec
-7.1-Channel High Definition Audio

Conectividad y redes
-1x Intel® I219V 1Gbps LAN controller

Conectores Internos

-1x 24-pin ATX main power connector
-1x 8-pin ATX 12V power connector
-1x 4-pin CPU fan connector
-1x 4-pin system fan connector
-1x Front panel audio connector
-2x System panel connectors
-1x Chassis Intrusion connector
-1x TPM module connector
-1x Clear CMOS jumper
-1x 4-pin RGB LED connector
-2x 3-pin RAINBOW LED connectors
-4x EZ Debug LED

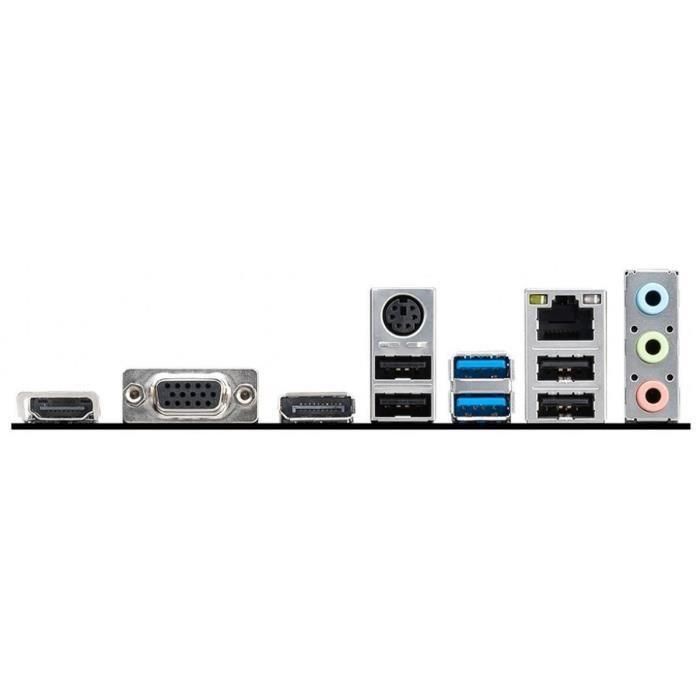

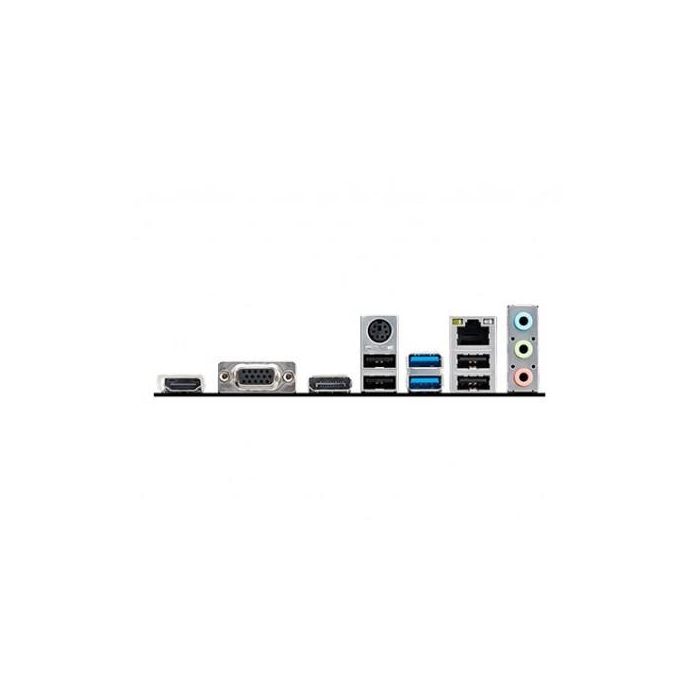

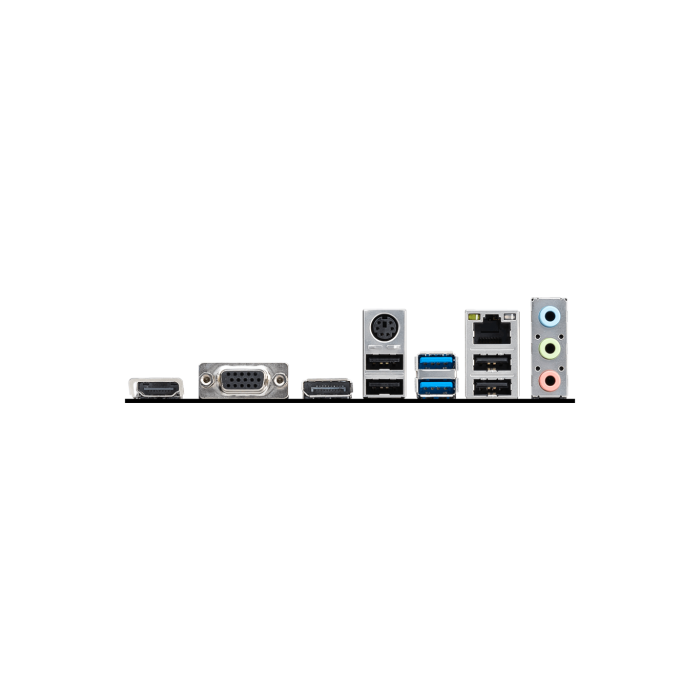

Conectores Traseros
-HDMI
-VGA
-DisplayPort
-Keyboard/Mouse
-USB 3.2 Gen 1 5Gbps Type-A
-LAN port
-Audio connector
-USB 2.0

Factor de forma
-mATX Form Factor
-9.29 x 7.95 in. (23.6 cm x 20.2 cm)
