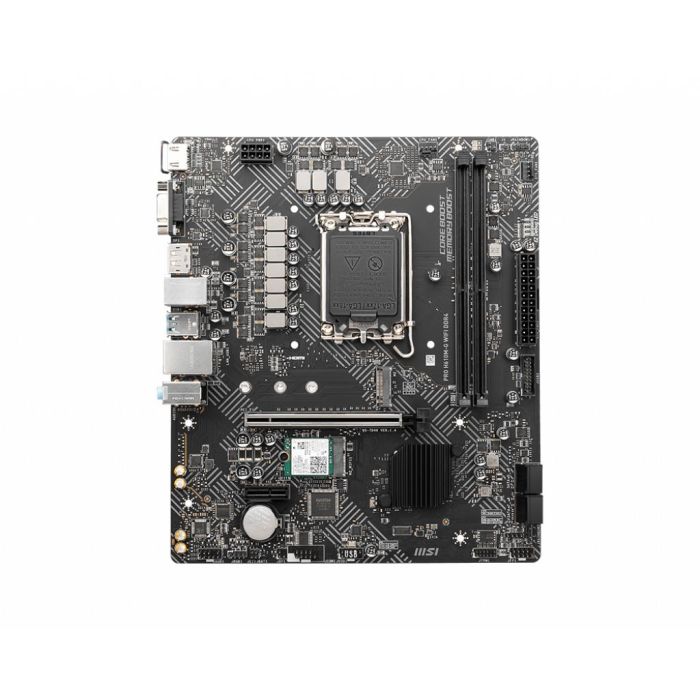

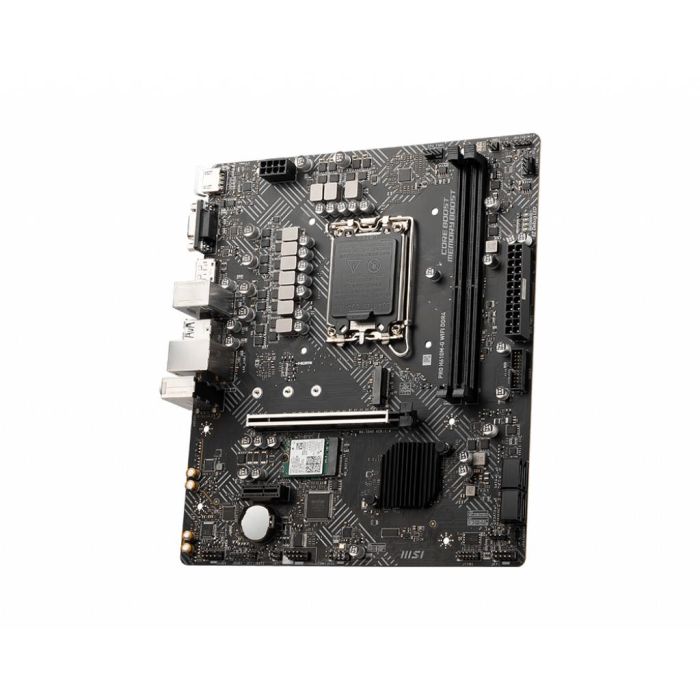

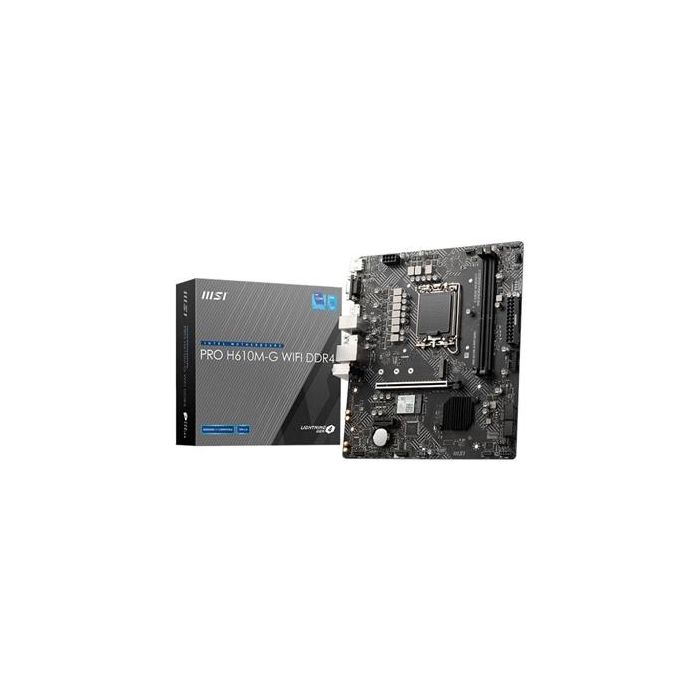

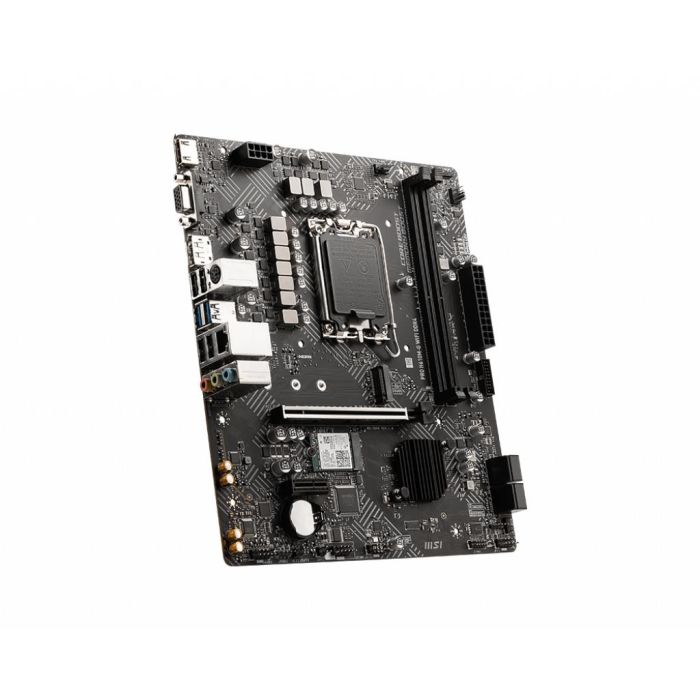

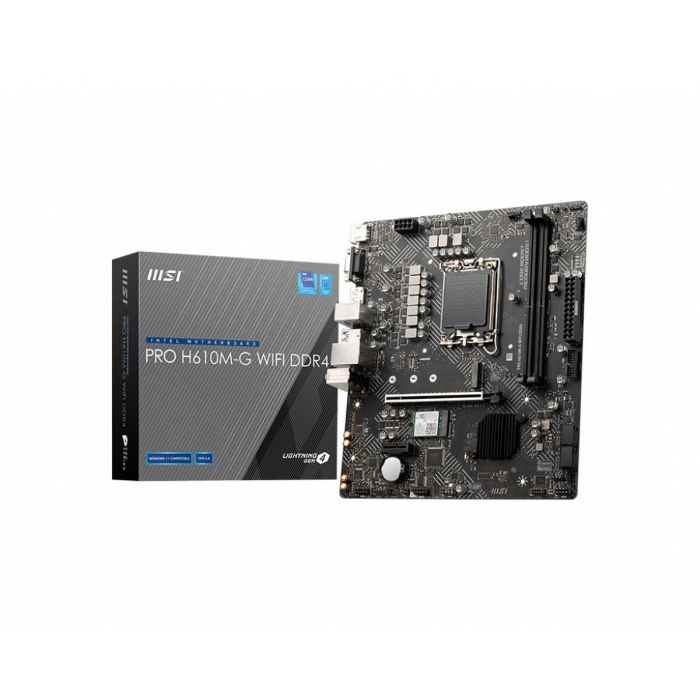

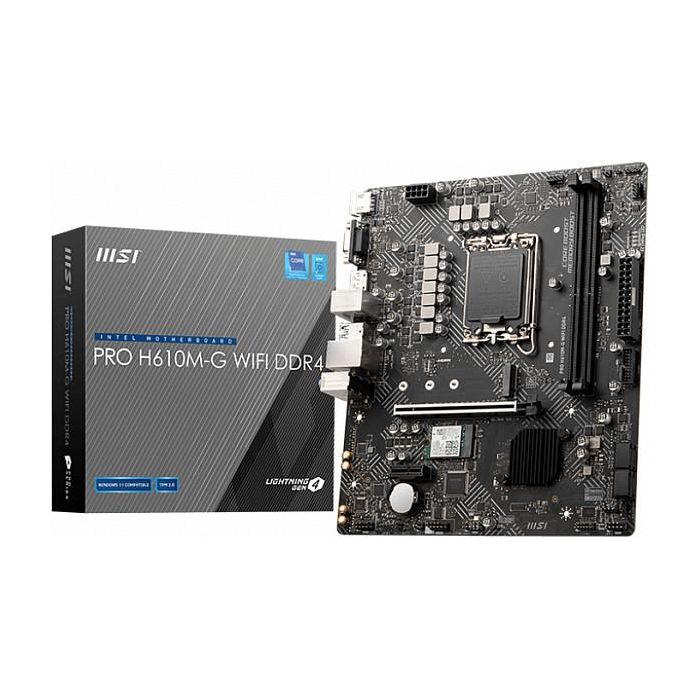

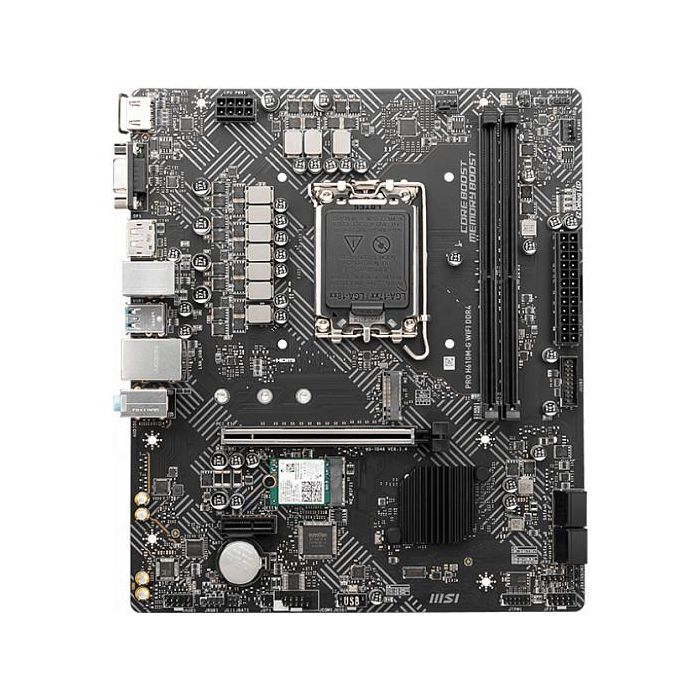

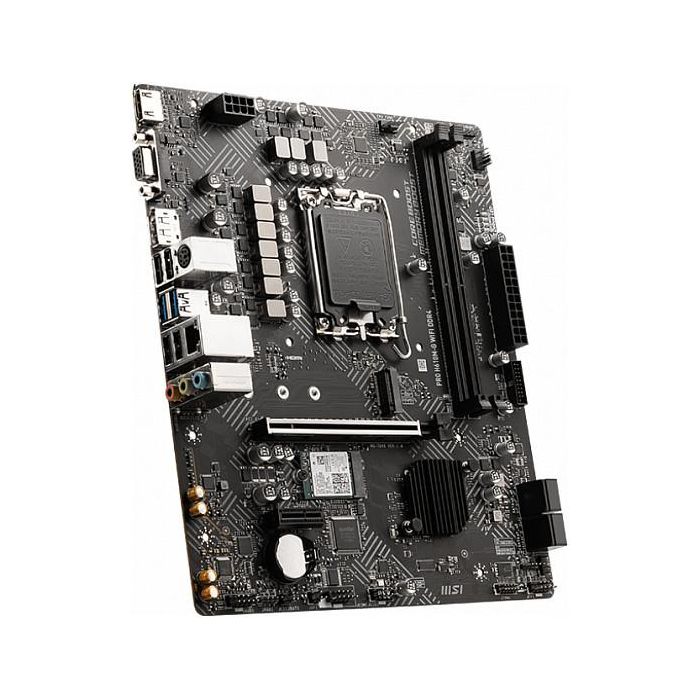

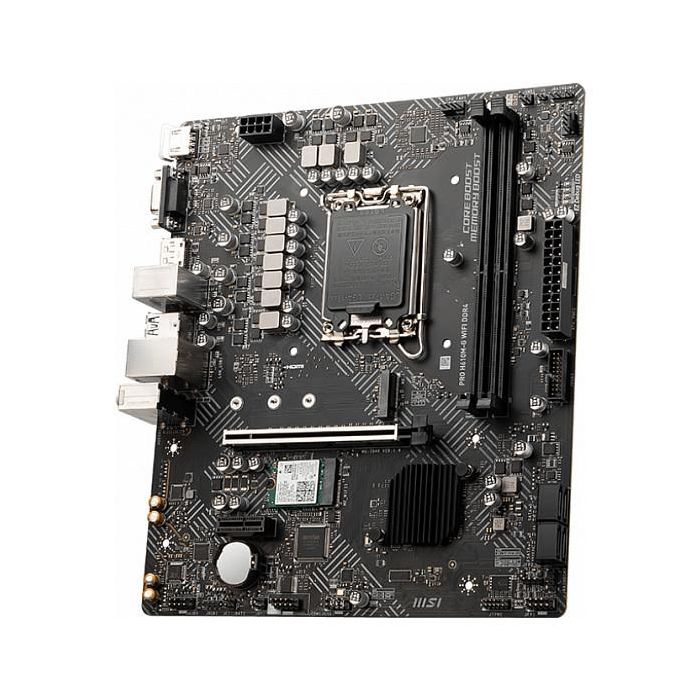

PLACA BASE MSI PRO H610M-G WIFI DDR4 MATX 1700
Modelo 911-7D46-070
Plataforma - mATX (23.6 cm x 20.2 cm)
Chipset - Intel H610 Chipset
CPU
Soportados - Admite procesadores Intel Core, Pentium Gold y Celeron de 12ª generación
- Zócalo del procesador LGA1700
Memoria - 2 x DDR4, soporta hasta 64GB
- Soporta 3200(MAX) / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
- Admite el modo de doble canal
- Admite memoria sin búfer ni ECC
Slots Expansión
- 1 x PCIe 3.0 x1 slot
Gráficos - 1 x PCIe 4.0 x16 slot
Puertos E/S,
Conectores


Conectores Internos E/S
- 1 x Intel I219V 1Gbps LAN controller
- 1 x 24-pin ATX main power
- 1 x 8-pin ATX 12V power
- 1 x 4-pin CPU fan
- 1 x 4-pin system fan
- 1 x Front panel audio
- 2 x System panel s
- 1 x Chassis Intrusion
- 1 x TPM module
- 1 x Clear CMOS jumper

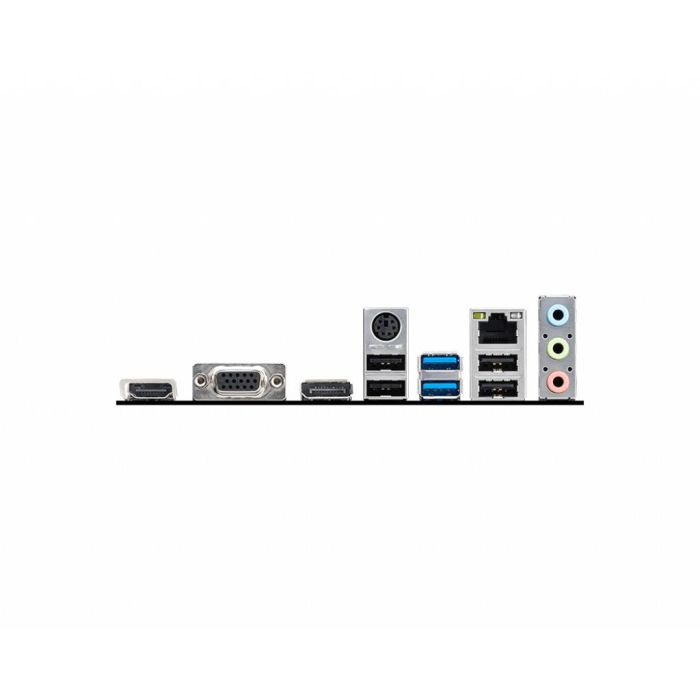

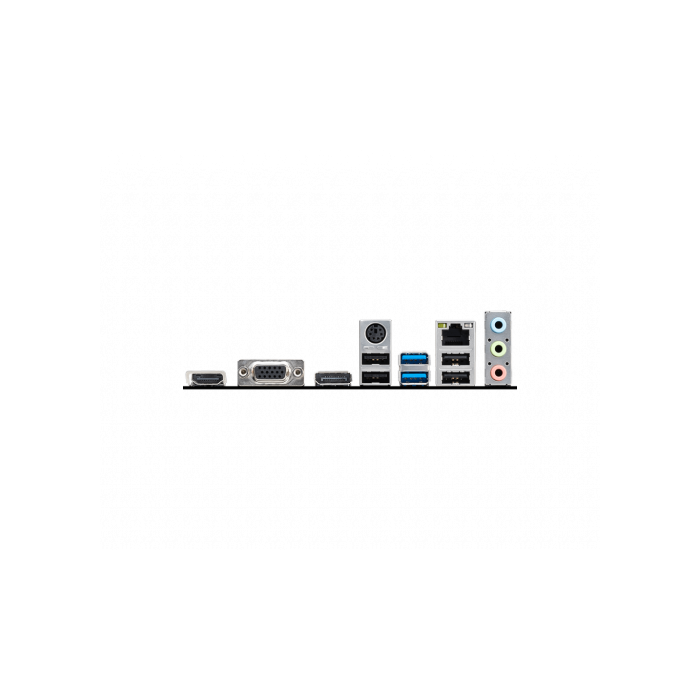

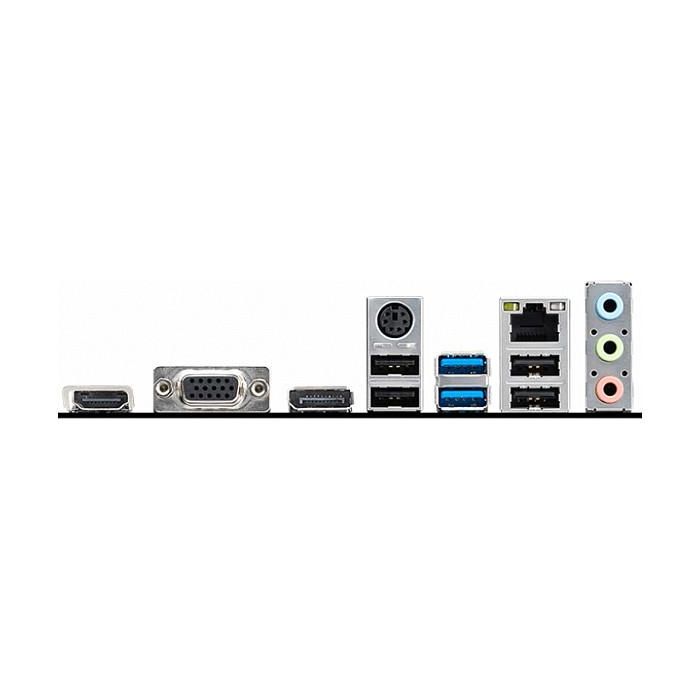

Panel E/S Trasero
- HDMI
- VGA
- DisplayPort
- Keyboard/Mouse
- USB 3.2 Gen 1 5Gbps Type-A
- LAN port
- Audio connector
- USB 2.0
Otras
Características
USB
- Intel H610 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
Conectividad
- Intel Wi-Fi 5
- Bluetooth 5.1
Almacenamiento
- 1 x M.2 Gen3 x4 32Gbps slot
- 4 x SATA 6Gb/s ports
Audio
- 7.1-Channel High Definition Audio
LAN
- 1 x Intel I219V 1Gbps LAN controller
Sistema Operativo
- Soporte para Windows 11 64-bit
