Planet 1-Port 802.3at PoE+ to 2-Port 802.3af/at Gigabit PoE Extender
Planet
Disponible
SKU: B1E2KH7PJ4
Envío gratuito
Entrega prevista: 4 de junio - 5 de junio
Precio recomendado: 112,00€
96,59€ Ahorras 15,41 (13.76%)
Añadir al carrito
Añadir

Descripción
PLANET POE-E202 is a 1-port PoE+ to 2-port 802.3af/at Gigabit PoE Extender designed especially for point to multipoint PoE application. The POE-E202 can obtain a maximum of 30-watt PoE power from PoE+ input port and supplies a maximum of 25-watt PoE power budget for two PoE output ports, extending both the Gigabit Ethernet Data and IEEE 802.3at/802.3af Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to up to two 200m powered devices at the same time.
The POE-E202 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.
Plug and Play Installation

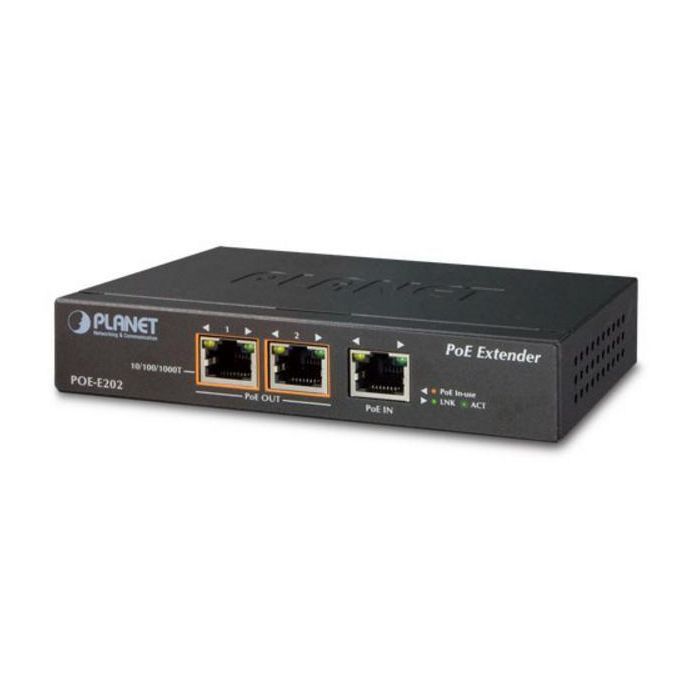

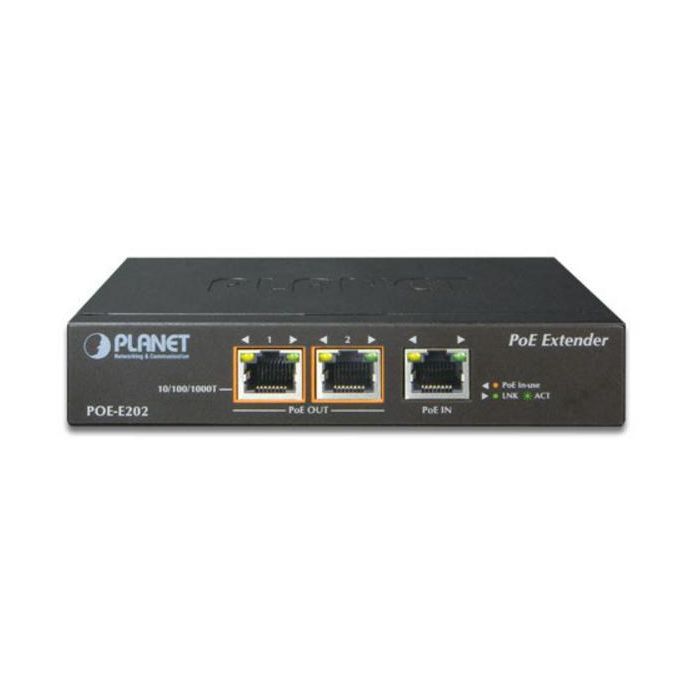

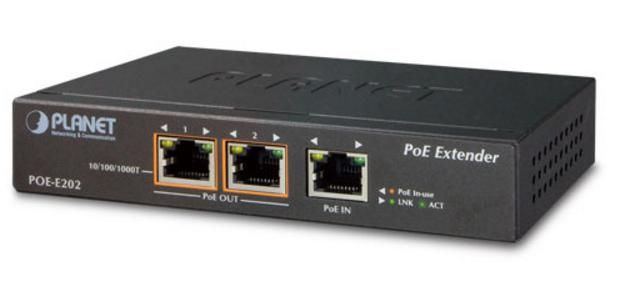

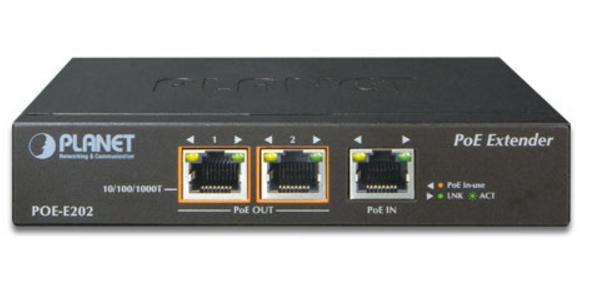

The POE-E202 is quite easy to be installed by simple plug and play. It is used between a power source equipment (PSE) and a powered device (PD). The POE-E202 injects power to the PD without affecting the data transmission performance. The POE-E202 offers a cost-effective and quick solution to doubling the standard range of PoE from 100 to 200 meters. The POE-E202 is designed in a compact box containing three RJ45 ports, of which one "PoE IN" port functions as PoE (Data and Power) input and the other two "PoE OUT" ports function as PoE output. The "PoE OUT" port is also the power injector that transmits DC voltage over the Cat5/5e/6 cable and transfers data and power simultaneously between the PSE and PD.
- Physical Port
- 3-port 10/100/1000BASE-T Gigabit RJ45 interface
- 1-port data + power input
- 2-port data + power output
- Power over Ethernet
- Complies with IEEE 802.3at Power over Ethernet Plus end-span/mid-span PD
- Supports PoE input power up to 30.8 watts
- Complies with IEEE 802.3af/IEEE 802.3at Power over Ethernet end-span PSE
- Up to 2 IEEE 802.3af/802.3at devices powered
- Supports PoE power up to 25 watts for each PoE port
- Auto detects powered device (PD)
- Extends the range of PoE to an additional 100 meters (328ft.)
- Forwards both Ethernet data and PoE power to remote device
- Layer 2 Features
- Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
- Integrates address look-up engine, supporting 2K absolute MAC addresses
- 10K iumbo packet support
- IEEE 802.1Q VLAN transparency
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and backpressure for half duplex operation
- Automatic address learning and address aging
- Supports CSMA/CD protocol
- Case and Installation
- No external power cable installation required
- Made of metal, desktop size design
- Wall-mountable, Plug-and-Play installation
- 0 ~ 50 degrees C operating temperature
EAN: 4711605282055
