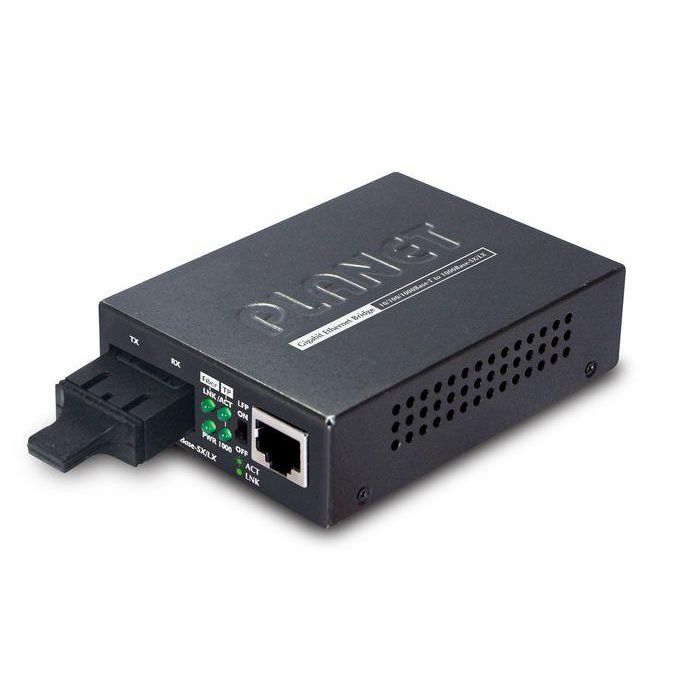

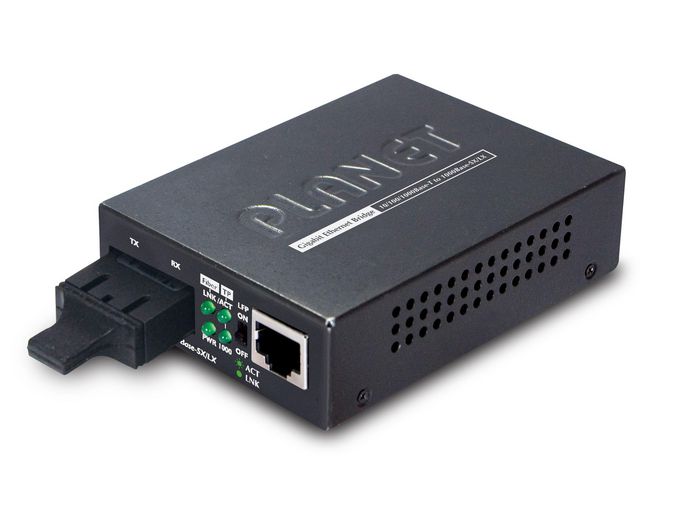

Offering the flexibility with all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performing highly stable Gigabit fiber capability, the PLANET Gigabit media converter series GT-80X (GT-802, GT-802S, GT-805A and GT-806A/B) supports conversion between 10/100/1000Base-T and 1000Base-LX/SX network. The GT-80X series offer three types of connector, SC / SFP / WDM connector, with single-mode or multi-mode media as required so that an Gigabit fiber network can be efficiently constructed through the Ethernet.

Designed in compact size, the GT-80X can be used as a standalone unit or being installed in the media converter chassis such as the PLANET MC-700/MC-1000R/MC-1500 ( 7/10/15-slot Media Converter Chassis to build a centralized fiber-optic network. The media chassis can feed GT-80X power to maintain the fiber-optic network at one location.

As the GT-80X series fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX/SX, the installation of the Gigabit media conversion is quite quick and easy by simple plug and play. The GT-80x also supports flow control and back pressure in half-duplex to eliminate packets loss. Even when the web UI is not available, the network manager still can remotely control and monitor GT-80X by OAM (TS-1000 and IEEE 802.3ah) terminal function such as remote failure indication, loop back test, port status and performance monitoring and troubleshooting.

• Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z 1000BASE-SX/LX
• TP port supports 10/100/1000BASE-T auto-negotiation and auto-MDI/MDI-X
• 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m (GT-802)
• 1000BASE-LX: 9/125μm single-mode cable provides a distance of 10km (GT-802S)
• 1000BASE-LX: 9/125μm single-mode cable provides a distance of 40km (GT-802S40)
• 1000BASE-LX: 9/125μm single-mode cable provides a distance of 60km (GT-802S60)
• 1000BASE-SX/LX: 50/125μm/62.5/125μm multi-mode fiber cable or 9/125μm single-mode cable provides a distance depending on SFP module (GT-805A)
• 1000BASE-LX WDM interface is for up to 15km (single-mode fiber 9μm/125μm) on GT-806A15/GT-806B15
• 1000BASE-LX WDM interface is for up to 40km (single-mode fiber 9μm/125μm) on GT-806A40/GT-806B40
• 1000BASE-LX WDM interface is for up to 60km (single-mode fiber 9μm/125μm) on GT-806A60/GT-806B60
• 1000BASE-T: 2-pair Cat. 5/5e/6 UTP cable, up to 100 meters
• Layer 2 key features
• IEEE 802.3x flow control for full duplex and back pressure for half duplex eliminate the loss of packets
• Supports auto MDI/MDI-X function
• Store-and-Forward mechanism
• Non-blocking full wire-speed forwarding rate
• Media conversion between 10/100/1000BASE-T and 1000BASE-SX/LX
• Fiber media allows
• Multi-mode fiber using SC/LC/WDM connector
• Single-mode fiber using SC/LC/WDM connector
• Compact size for working with PLANET MC family media chassis (MC-700/MC-1500/MC-1500R/MC-1500R48)
• Wall-mountable design
• LED indicators for easy network diagnostics
• Provides DIP switch for LFP function (Disable/Enable) setting
• 9K jumbo frame supported
• Choice of fiber connectors from SC, LC and WDM; multi-mode/single-mode fiber for 1000BASE SFP interface
• Compact in size, easy installation
