Distance Extension with High Performance and Steady Network Communication

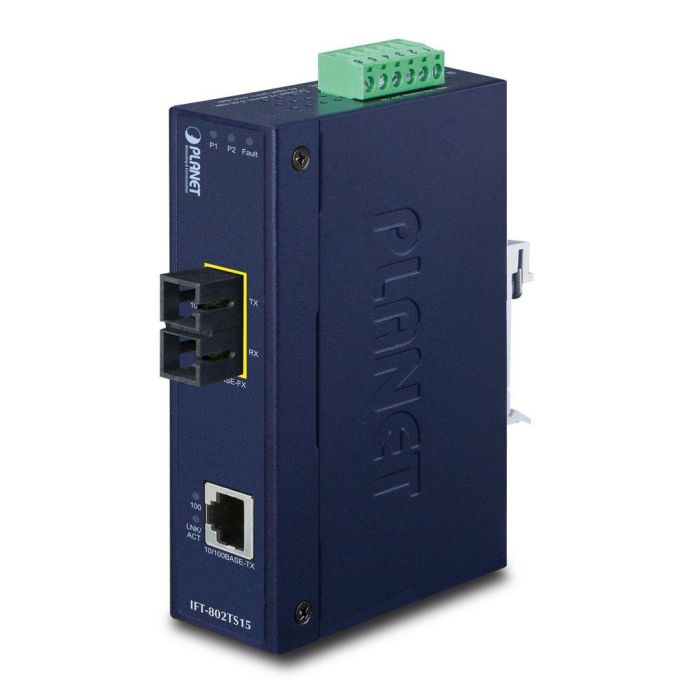

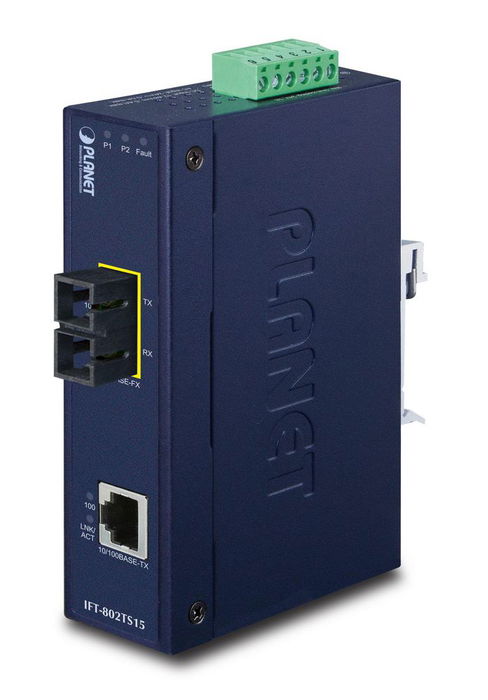

PLANET 10/100Base-TX to 100Base-FX Industrial Media Converter IFT-80xT series extends communication distance with stable performance via fiber optic wire, in which the extended distance could be up to 2km with the IFT-802T, up to 15km with the IFT-802TS15 or up to 20km with the IFT-805AT (depending on SFP module). The IFT-80xT series is specifically equipped with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments. The industrial level media converter provides a high level of immunity to electromagnetic interference and heavy electrical surges which are usually found on plant floors or traffic control cabinets on sidewalk. Being able to operate under the temperature range from -40 to 75 degrees C allows the IFT-80xT series to be placed in almost any difficult environment.


Robust Media Converter Performance

PLANET IFT-80xT 10/100Base-TX to 100Base-FX Industrial Media Converter series efficiently converts data between 10/100Base-TX and 100Base-FX network. The IFT-80xT series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.


Easy Installation and Wide Range of Power Usages

The IFT-80xT series is packaged in a compact IP-30 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.

• Interface
• 1-port 10/100Base-T RJ-45 with auto negotiation and auto-MDI/MDI-X function
• 1 100Base-FX SC interface, providing long distance for 15km on IFT-802TS15
• Industrial Conformance
• 12V to 48V DC, redundant power with polarity reverse protect function
• Minus 40 to 75 degrees C operating temperature
• IP30 metal case
• Relay alarm for port breakdown
• Supports 6KV DC Ethernet ESD protection
• Supports 6KV DC EFT protection for power line
• Free Fall, Shock and Vibration Stability
• DIN-rail and wall-mountable hardware design
• Layer 2 Features
• Complies with the IEEE 802.3, IEEE 802.3u Fast Ethernet standard
• Auto-MDI / MDI-X detection and auto negotiation in half-duplex / full-duplex modes for 10 /100Base-TX RJ-45 port
• Store-and-Forward Switching Architecture
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• Supports packet size of up to 1522bytes
• CSMA/CD Protocol
• Automatic source address learning and aging
