Ruggedly Built for Harsh Environments

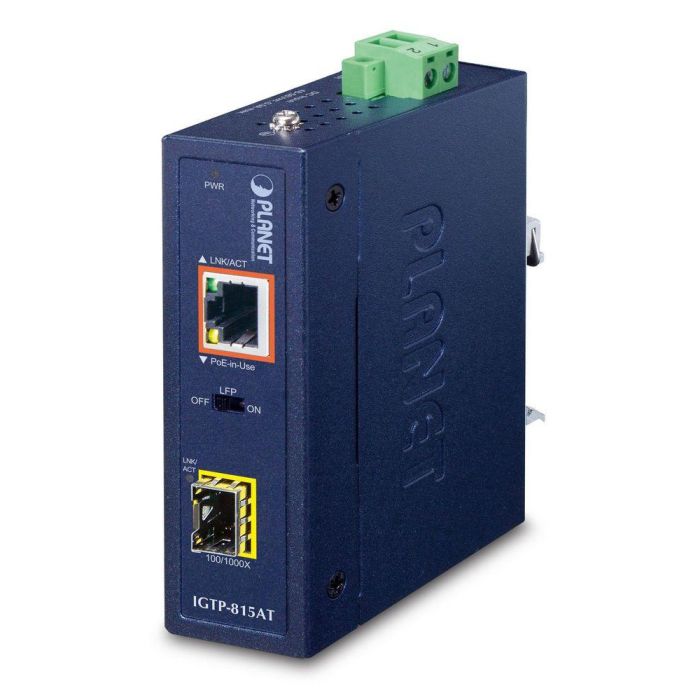

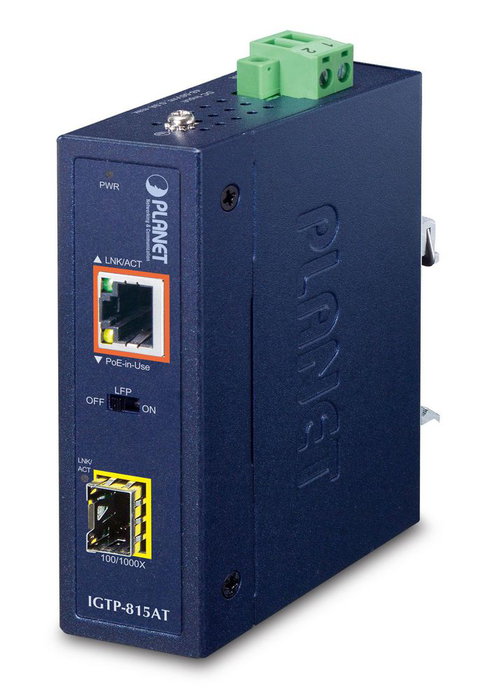

PLANET IGTP-815AT is the smallest, industrial-grade Gigabit PoE+ Media Converter, featuring one 100/1000BASE-X SFP fiber port and one 10/100/1000BASE-T 802.3at PoE+ copper port in an IP30-rated rugged but compact-size case. Being able to operate under the temperature ranging from -40 to 75 degrees C, the IGTP-815AT provides reliable, stable and continuous long-range data transmission and can be installed in any harsh environment without taking space into consideration.

As the trend for an IIoT (Industrial Internet of Things) infrastructure is gradually in demand, the IGTP-815AT is especially designed to make the deployment of an industrial network easy as it comes with a Plug and Play feature. Besides, it is stable and reliable when it comes to fast data and power transmission.


IEEE 802.3at PoE Plus

Complying with the IEEE 802.3at Power over Ethernet Plus (PoE+) standard, the IGTP-815AT forwards Gigabit speed Ethernet data transmission and provides a maximum of 36-watt power output over an additional 100m UTP cable to a 802.3af/at PoE PD (powered device) installed in a remote area where sufficient and reliable power input is required. Users can easily upgrade their current networks without the need of software configuration.


Fiber-optic Link Capability Extends the Range of Network Deployment

The maximum distance between a PoE PSE (power sourcing equipment) and a PD via Ethernet UTP cable is 100 meters. To flexibly extend the PoE deployment range, the IGTP-815AT’s SFP slot supporting 100BASE-FX/1000BASE-X, SFP modules, and more can reach a transmission distance of up to 120km.


Interactive Network Detection

The IGTP-815AT can support LFP (Link Fault Passthrough) function via its built-in DIP switch. The LFP function includes Link Loss Carry Forward (LLCF) and Link Loss Return (LLR):

-　LLCF means when a device connected to the converter and the TP line loses the link, the converter’s fiber port will disconnect the link of transmission.
-　LLR means when a device connected to the converter and the fiber line loses the link, the converter’s fiber port will disconnect the link of transmission

Both of which can immediately alarm the administrators the issue from the link media and provide efficient solution to monitor the remote network.


Environmentally Hardened Design

The IGTP-815AT is specifically designed with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments like plant floors or curbside traffic control cabinets. With wide operating temperature range of -40 to 75 degrees C, the IGTP-815AT is ideal for service providers, campuses and public areas to deploy outdoor PoE wireless access points, outdoor IP cameras or IP phones in any places easily and efficiently.


Robust Protection

The IGTP-815AT provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.


Flexible and Easy Installation with Limited Space

The compact sized IGTP-815AT is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexibly and easily in any space-limited location.

• Complies with IEEE 802.3at PoE Plus end-span PSE
• 1 IEEE 802.3at/af device powered
• Supports PoE Power up to 36 watts for PoE port
• Provides DC 48~56V power over RJ45 Ethernet cable to PD with Ethernet port
• Auto detects IEEE 802.3at/af equipment and protects devices from being damaged by incorrect installation
• Remote power feeding up to 100m
• IEEE 802.3at/af PoE splitter devices compatible
