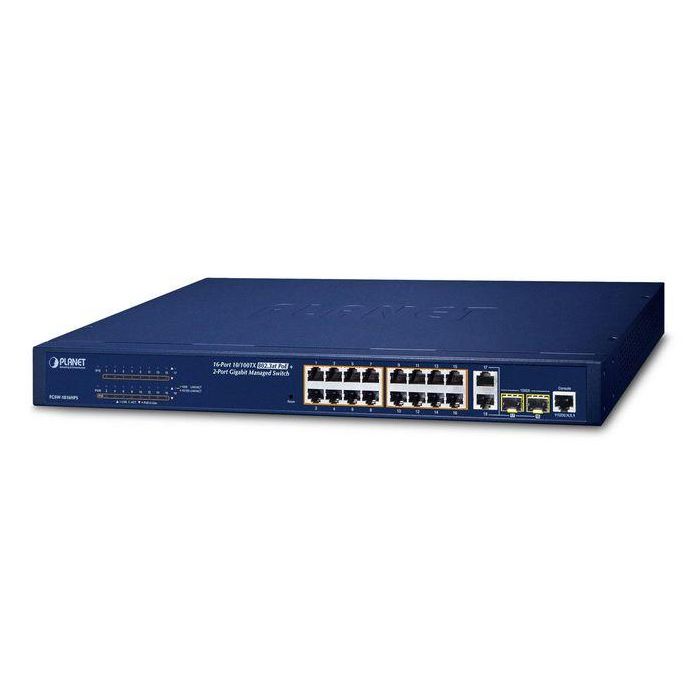

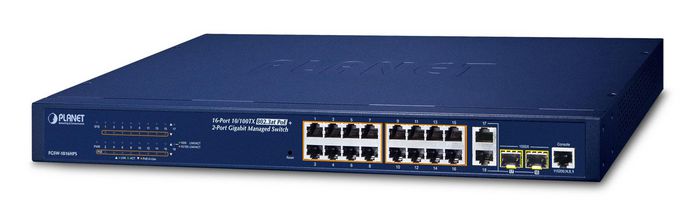

PLANET’s newly-revised FGSW-1816HPS Layer 2 PoE+ Managed Switch is designed for enterprises and industries where a network of PDs can be centrally managed. The Switch’s management functions have been enhanced to include intelligent PoE management, IPv6 management, ACL, GVRP, and more.


Cost-optimized Managed PoE+ Switch with L2/L4 Switching and Security

PLANET FGSW-1816HPS is an ideal Managed PoE+ Switch which provides cost-effective advantage to local area network and is widely accepted in the SMB office network. It offers intelligent Layer 2 data packet switching and management functions, friendly web user interface and stable operation. The model complies with IEEE 802.3at Power over Ethernet Plus (PoE+) at an affordable price; the FGSW-1816HPS is equipped with 16 10/100BASE-TX Fast Ethernet ports and 2 Gigabit TP/SFP combo interfaces with inner power system. With its 16 Fast Ethernet ports integrated with 802.3at PoE+ injector function and total power budget of up to 240 watts, it offers a rack-mountable, affordable, safe and reliable power solution for SMBs deploying Power over Ethernet networks, or requiring enhanced data security and network traffic management.


Solution for IPv6 Networking

With the support for IPv6/IPv4 protocol, and easy and friendly management interfaces, the FGSW-1816HPS is the ideal choice for IP surveillance, VoIP and wireless service providers to connect with the IPv6 network. It also helps SMBs to step in the IPv6 era with the lowest investment and without having to replace the network facilities even though ISPs establish the IPv6 FTTx edge network.


Built-in Unique PoE Functions for Surveillance Management

As a managed PoE Switch for surveillance network, the FGSW-1816HPS features the following intelligent PoE management functions:

- PD Alive Check
- PoE Port Sequence
- PoE Schedule


Intelligent Powered Device Alive Check

The FGSW-1816HPS can be configured to monitor a connected PD status in real time via ping action. Once the PD stops working and it is without response, the FGSW-1816HPS will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source, thus reducing administrator management burden.


PoE Port Sequence

To prevent all the PoE ports of the FGSW-1816HPS from being active at the same time when the Switch has booted up, the PoE ports of the FGSW-1816HPS can be configured to allow each port to be activated at an interval time. In addition, the “Delay” setting is to delay power feeding on each port when the FGSW-1816HPS has completely booted up.


PoE Schedule for Energy Saving

Besides being used for IP surveillance, the FGSW-1816HPS is certainly applicable to build any PoE network including VoIP and wireless LAN. Under the trend of energy saving worldwide and contributing to the environmental protection on the Earth, the FGSW-1816HPS can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs and enterprises save energy and budget.


Ethernet Data Transmission Distance Extension

In the “Extended” operation mode, the FGSW-1816HPS operates on a per-port basis at 10Mbps duplex operation but can support PoE power output over a distance of up to 250 meters overcoming the 100 meters limit on Ethernet UTP cable.


Robust Layer 2 Features

The FGSW-1816HPS can be programmed for advanced switch management functions, such as Multiple Spanning Tree Protocol (MSTP), BPDU filtering, BPDU Guard, dynamic port link aggregation, IGMP/MLD snooping, DHCP relay agent, loop detection and GVRP, voice VLAN and the Link Layer Discovery Protocol (LLDP). The Layer 2 protocol included is to help discover basic information about neighboring devices in the local broadcast domain. Other features included are the port-based/802.1Q VLAN and Q-in-Q VLAN, Layer 2/4 QoS, port mirroring, broadcast storm control and bandwidth control.


Enhanced Security and Traffic Control

The FGSW-1816HPS offers the comprehensive Layer 2 to Layer 4 access control list (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP/MAC address or defined typical network applications. The FGSW-1816HPS also provides DHCP Snooping, ARP Inspection and MAC Verification functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. Also included are per port MAC/IP address binding and MAC address binding. The network administrator can now build highly-secure corporate networks with considerably less time and effort than before.


Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity features that virtually need no effort and cost to have included the protection of the switch management and the enhanced security of the mission-critical network. Both SSH and SSL protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.


Efficient Management

For efficient management, the FGSW-1816HPS is equipped with Web, Telnet and SNMP management interfaces. With the built-in Web-based management interface, the FGSW-1816HPS offers an easy-to-use, platform-independent management and configuration facility. By supporting the standard Simple Network Management Protocol (SNMP), the FGSW-1816HPS can be managed via any standard management software. For text-based management, the switch can be accessed via Telnet. Moreover, the FGSW-1816HPS offers secure remote management by supporting SNMPv3 connections which encrypt the packet content at each session.


Flexible and Extendable Uplink Solution

The FGSW-1816HPS provides 2 extra Gigabit TP/SFP combo interfaces supporting 10/100/1000BASE-T RJ45 copper to connect with surveillance network devices such as NVR, Video Streaming Server or NAS to facilitate surveillance management. Or through these fiber SFP slots occupied by the 1000BASE-SX/LX SFP (small form-factor pluggable) fiber transceivers, it can be uplinked to a backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 2km (multi-mode fiber) to 10/20/40/80/120 kilometers (single-mode fiber or WDM fiber). They are well-suited for applications within the industrial data centers and distributions.

• Physical Port
• 16 10/100BASE-TX RJ45 copper ports with IEEE 802.3at/af PoE+ injector function
• 2 10/100/1000BASE-T Gigabit RJ45 copper ports
• 2 1000BASE-X mini-GBIC/SFP slots, shared with port-17 to port-18
• Reset button for system factory default
• Switching
• Hardware-based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation, and auto MDI/MDI-X
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• Automatic address learning and address aging
• Supports CSMA/CD protocol
• Power over Ethernet
• Complies with IEEE 802.3at Power over Ethernet Plus
• Complies with IEEE 802.3af Power over Ethernet
• Up to 16 ports of IEEE 802.3af/802.3at devices powered
• Supports PoE Power up to 30 watts for each PoE port
• 240-watt PoE budget
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• Remote power feeding up to 250m via extend mode
• PoE Management
• Per port PoE function enable/disable
• Per Port PoE operation mode selection
• Per PoE port power budget control
• PD classification detection and PoE consumption usage status
• Intelligent PoE features
• PD alive check
• PoE port sequence
• Layer 2 Features
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Supports VLAN
• Port-based VLAN, up to 18 VLAN groups
• IEEE 802.1Q tagged VLAN
• Protocol VLAN
• Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
• GVRP
• Voice VLAN
• Supports Spanning Tree Protocol
• STP (IEEE 802.1D Spanning Tree Protocol)
• RSTP (IEEE 802.1w Rapid Spanning Tree Protocol)
• MSTP (IEEE 802.1s Multiple Spanning Tree Protocol)
• STP BPDU filtering, BPDU Guard
• Supports Link Aggregation
• IEEE 802.3ad Link Aggregation Control Protocol (LACP)
• 1 LACP group, up to 2 ports per LACP group
• Cisco ether-channel (static trunk)
• 1 trunk group, up to 2 ports per trunk group
• Provides port mirror (many-to-1)
• Loop detection
• Quality of Service
• Ingress/Egress Rate Limit per port bandwidth control
• Storm Control support
• Broadcast/ Multicast /DLF (Destination Lookup Fail)/ARP/ICMP
• Traffic classification
• IEEE 802.1p Qos/CoS
• TCP/UDP/DSCP/IP precedence of IPv4/IPv6 packets
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Multicast
• Supports IPv4 IGMP snooping v1/ v2 and v3
• Supports IPv6 MLD snooping v1, v2
• Security
• Access Control List
• IPv4/IPv6 IP-based ACL
• MAC-based ACL
• Port-MAC-IP Address Binding
• Port-MAC-IP Port Setting
• Port-MAC-IP Entry Setting
• MAC Address Binding
• Static MAC
• MAC Filtering
• DHCP snooping to filter distrusted DHCP messages
• ARP Inspection discards ARP packets with invalid MAC address to IP address binding
