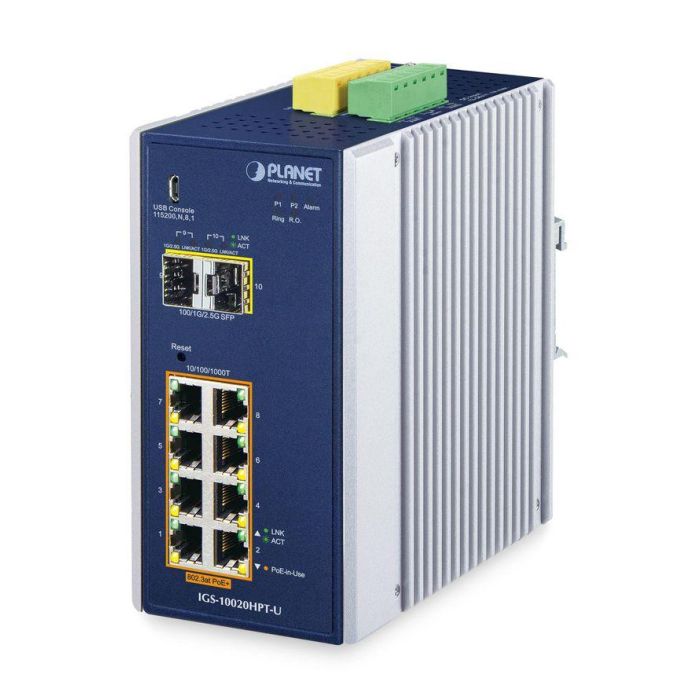

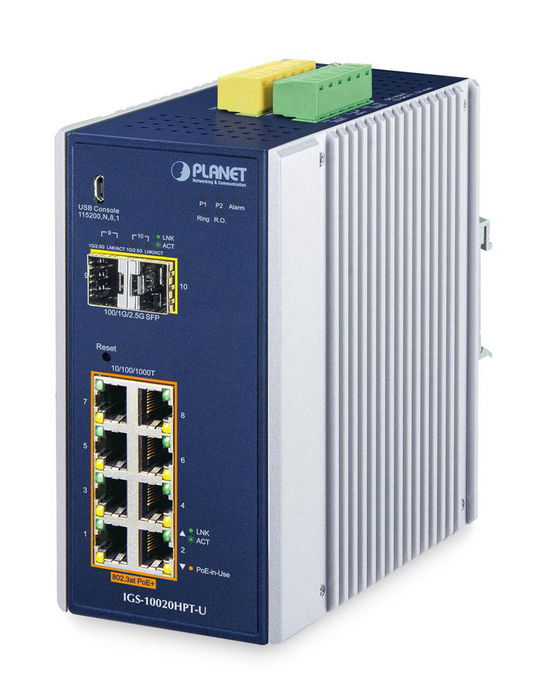

Planet Switch Industrial IP30 Gestionable L2+/L4 8 Puertos PoE Gigabit 802.3at + 2 SFP 1G/2.5G Rango Temp. -40 a 75°C
Planet
Disponible
SKU: B15EFFQ9QA
Envío gratuito
Entrega prevista: 27 de junio - 30 de junio
Precio recomendado: 794,81€
616,95€ Ahorras 177,86 (22.38%)
Productos similares
-
Entrega prevista: 27 de junio - 30 de junio
-
Entrega prevista: 27 de junio - 30 de junio
-
Entrega prevista: 27 de junio - 30 de junio
-
Entrega prevista: 27 de junio - 30 de junio
-
Entrega prevista: 27 de junio - 30 de junio
-
Entrega prevista: 27 de junio - 30 de junio
-
Entrega prevista: 27 de junio - 30 de junio
-
Entrega prevista: 27 de junio - 30 de junio
Descripción
- Physical Port
- ．8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector
- ．2 100/1000/2500BASE-X mini-GBIC/SFP slots for SFP type auto detection
- ．One RJ45 console interface for basic management and setup (IGS-10020HPT)
- ．One USB console interface for basic management and setup (IGS-10020HPT-U)
- Power over Ethernet
- ．Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
- ．Up to 8 IEEE 802.3af/802.3at devices powered
- ．Supports PoE power up to 36 watts for each PoE port
- ．Auto detects powered device (PD)
- ．Circuit protection prevents power interference between ports
- ．Remote power feeding up to 100m in standard mode and 200m in extend mode
- ．PoE management features
- ．Intelligent PoE features
- Industrial Protocol
- ．Modbus TCP for real-time monitoring in a SCADA system
- ．IEEE 1588v2 PTP (Precision Time Protocol)
- Industrial Case and Installation
- ．IP30 aluminum case
- ．DIN rail and wall-mount designs
- ．DC 12-48V, redundant power with reverse polarity protection (IGS-10020HPT)
- ．DC 12-54V, redundant power with reverse polarity protection (IGS-10020HPT-U)
- ．Supports 6000 VDC Ethernet ESD protection
- ．-40 to 75 degrees C operating temperature
- ．E-Mark certification
- Digital Input and Digital Output
- ．2 Digital Input (DI)
- ．2 Digital Output (DO)
- ．Integrate sensors into auto alarm system
- ．Transfer alarm to IP network via email and SNMP trap
- Layer 2 Features
- ．Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- ．High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
- ．Storm Control support
- ．．Broadcast/Multicast/Unicast
- ．Supports VLAN
- ．．IEEE 802.1Q tagged VLAN
- ．．Supports provider Bridging (VLAN Q-in-Q, IEEE 802.1ad)
- ．．Private VLAN Edge (PVE)
- ．．Port Isolation
- ．．MAC-based VLAN
- ．．Protocol-based VLAN
- ．．Voice VLAN
- ．．GVRP
- ．Supports Spanning Tree Protocol
- ．．IEEE 802.1D Spanning Tree Protocol (STP)
- ．．IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
- ．．IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
- ．．BPDU Guard
- ．Supports Link Aggregation
- ．．802.3ad Link Aggregation Control Protocol (LACP)
- ．．Cisco ether-channel (static trunk)
- ．．Maximum 5 trunk groups with 10 ports per trunk group
- ．．Up to 20Gbps bandwidth (duplex mode)
- ．Provides port mirror (many-to-1)
- ．Port mirroring to monitor the incoming or outgoing traffic on a particular port
- ．Loop protection to avoid broadcast loops
- ．Supports ERPS (Ethernet Ring Protection Switching)
- ．Compatible with Cisco Uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
- ．Link Layer Discovery Protocol (LLDP) and LLDP-MED
- ．Provides ONVIF for co-operating with PLANET video IP surveillances
- Layer 3 IP Routing Features
- ．Supports maximum 32 static routes and route summarization
EAN: 4711605287135
