Interfaz

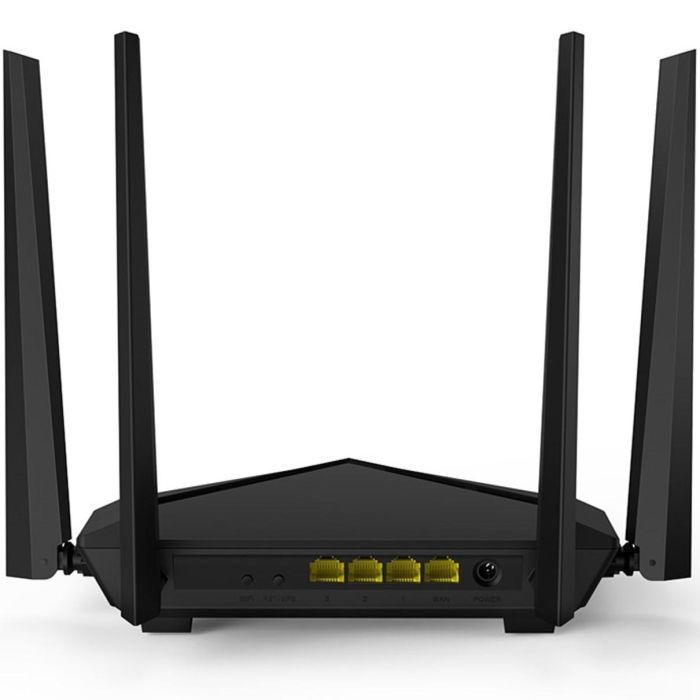

3*GE LAN Ports
1*GE WAN Port
Botones
1*WiFi On/Off button
1*Reset/WPS button
Fuente de alimentación
Power Input: 100-240V50/60Hz
Power Output: DC 12V==2A
Dimensiones
Package Box: 390*198*70mmL*W*H)
Device: 220*141.5*49mmL*W*H)
Peso
Gross Weight: 810g
Net Weight: 350g
Antena
4*5dBi External Dual Band Antennas
LED
1*WAN1*LAN1*Wi-Fi/WPS1*SYS
Estándar y protocolo
Wireless Standards:IEEE 802.11ac/n/a 5GHz
IEEE 802.11n/g/b 2.4GHz
Wired Standards:IEEE 802.3, IEEE 802.3u
Frecuencia
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
Potencia de transmisión
CE:
<,20dBm 2.4G
<,23dBm 5G
FCC:<,30dBm
Seguridad inalámbrica
WPA-PSK, WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS Fast Encryption
Tipo de conexión WAN
Dynamic IP/Static IP/PPPoE
Connection Type Auto Detection
Broadband Account and Password Migration
Modo de funcionamiento
Router/AP/Universal Repeater/WISP
Administración
Local Management
Remote Management
Tenda APP
Funciones básicas
MU-MIMO
SSID Broadcast and Hide
Beamforming
Signal Power Adjustment
Servidor virtual
UPnP
DMZ
Port Forwarding
DHCP
DHCP Server and Client
DHCP Client List
DHCP Address Reservation
DDNS
DynDns, NO-IP, Oray.com, 3322.org, 88ip
VPN
PPTP Client
PPTP Server
L2TP Client
Firewall
Forbid UDP Flood Attack
Forbid TCP Flood Attack
Forbid ICMP Flood Attack
Forbid WAN Ping from Internet
PPTP Pass Through
L2TP Pass Through
IPSec Pass Through
Características
Smart Wi-Fi Schedule
Smart Power Saving
Smart LED On/Off
Otros
Bandwidth Control
MAC Address Filter
IP and MAC Address Binding
IPTV
Black/White List
MAC Clone
Static Routing
System Log
Network Time
Backup/Restore Settings
System Upgrade Online
Certificaciones
CE, FCC, RoHS, BSMI, NCC, EAC, IC
Configuración predeterminada
Default Access Address: tendawifi.com or http://192.168.0.1
Contenido del paquete
AC1200 Smart Dual-Band Gigabit WiFi Router
Power Supply
Ethernet Cable
Quick Installation Guide
Requisitos del sistema
Microsoft Windows XP, Vista or Windows 7, Windows 8/8.1/11
MAC OS, UNIX or Linux
Entorno
Operating Environment:0~40
Storage Environment:-40~70
Operating Environment:10%~90% RH non-condensing
Storage Environment:5%~90% RH non-condensing
