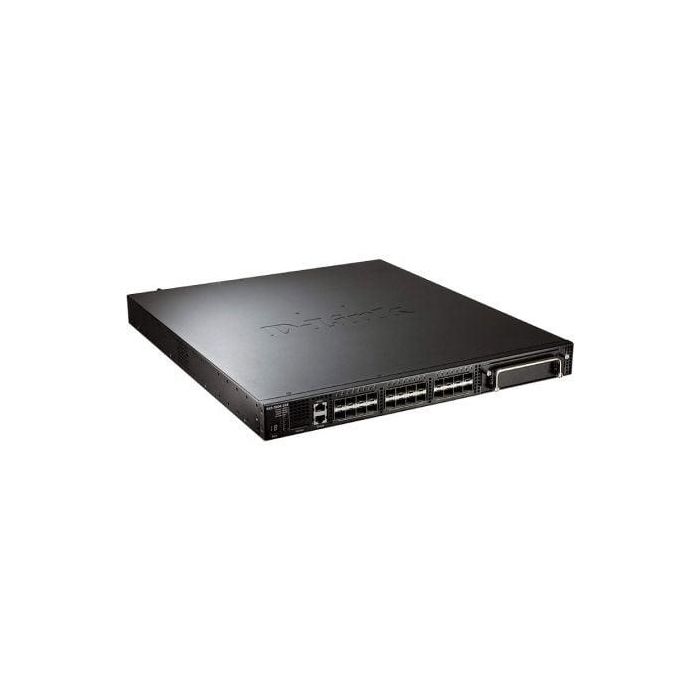

Switch Gestionable D-Link DXS-3600-32S/SI 24 Puertos/ 10GbE/ SFP

Name: Switch Gestionable D-Link DXS-3600-32S/SI 24 Puertos/ 10GbE/ SFP
Brand: Dlink
SKU: B1GK57SB8M
Price: 6866.5 EUR
Availability: InStock

Dlink

Existencias agotadas

SKU: B1GK57SB8M

Envío gratuito

Entrega prevista: 13 de enero - 14 de enero

Precio recomendado: 8173,04€

6866,50€ Ahorras 1306,54 (15.99%)

Existencias agotadas

Lee nuestras 2269 reseñas en

Descripción

Especificaciones
General
Interfaces
24 fixed SFP+ 10G ports with one expansion slot
Console Port
RJ-45 console port for out-of-band management
Management Port
10/100/1000 BASE-T RJ-45 Ethernet for out-of-band remote management
SD Card Slot
1 slot
Performance
Switching Capacity
960 Gbps
Max. Forwarding Rate
714.28 Mpps
Packet Buffer Memory
9 MB
MAC Address Table
128K
Stacking with DXS-3600-EM-Stack and DXS-3600-EM-4QXS module
DXS-3600-32S with stacking module to build a physical stacking
architecture that provides:
• Up to 96 10G SFP+ ports
• Up to 480G stacking bandwidth
• High redundancy and reliability
Data Center Features
Data Center Bridging (DCB) is an essential set of enhancements to Ethernet
for networking in data center environments. The DXS-3600-32S support
several core components of Data Center Bridging (DCB) such as IEEE
802.1Qbb, IEEE 802.1Qaz, and IEEE 802.1Qau. IEEE 802.1Qbb (Priority-based
Flow Control) provides flow control to ensure there is no data loss during
network congestion. IEEE 802.1Qaz (Enhanced Transmission Selection)
manages the allocation of bandwidth based on different traffic classes. IEEE
802.1Qau (Congestion Notification) provides congestion management for
data flows within network domains to avoid congestion. The DXS-3600-32S
switches also support cut-through switching, which reduces latency when
transmitting data in a network.
Energy-Efficient

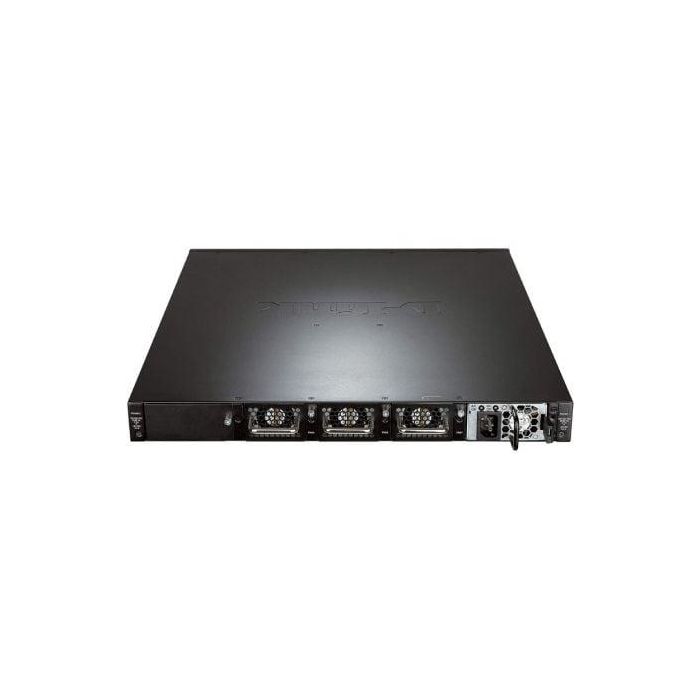

The DXS-3600-32S utilises front-to-back airflow for increased cooling
efficiency, allowing hot and cold isles to be built in the data center and
unifying airflow direction when compared to a mix of back-to-front and sideto-side airflow. Modular power supplies provide the option to use AC or DC
power inputs, allowing the most efficient choice for the environment to be
chosen. The switches also feature built-in smart fans that monitor and detect
temperature changes, adjusting the fan speed for maximum efficiency. At
lower temperatures, the fans run at a lower speed, reducing both the power
consumption and noise output of the switch.
DXS-3600-EM-4QXS, the 40G QSFP+ module
DEM-CB100QXS, the 40G QSFP+ to QSFP+ DAC
Stacking with DXS-3600-EM-Stack module
DEM-CB50CXP 120G CXP Stacking Cable
DXS-3600-32S with 40G QSFP+ expansion module to build a physical stacking
architecture that provides:
Longer distance stacking by connecting 40G transceivers and fiber cables
Up to 160G stacking bandwidth
High redundancy and reliability
DXS-3600-32S
24-Port Top-of-Rack 10 Gigabit Managed Switch
Physical
Power Input 100 to 240 V AC, 50/60 Hz
Maximum Power
Consumption
116.8 W (without expansion module)
160.4 W (with DXS-3600-EM-4QXS)
Standby Power
Consumption
88.2 W
Heat Dissipation (Max.)
398.29 BTU/hr (without expansion module)
546.96 BTU/hr (with DXS-3600-EM-4QXS)
Heat Dissipation (Standby)
300.76 BTU/hr
Dimensions (W x L x H)
440 x 506 x 44 mm
Weight
10.71 kg
Operating Temperature
0 to 45 °C (32 to 113 °F)
Storage Temperature -40 to 70 °C (-40 to 158 °F)
Operating Humidity
0% to 95% RH
Storage Humidity
0% to 95% RH
Certifications
Safety
CB, cUL, LVD
EMI/EMC
FCC, CE, C-Tick, IC, VCCI
Standard Image (SI) Features
Stackability
DXS-3600-32S with:
DXS-3600-EM-Stack expansion module: 480G stacking
bandwidth
DXS-3600-EM-4QXS expansion module: 160G stacking
bandwidth
DXS-3600-16S with:
DXS-3600-EM-4QXS expansion module: 160G stacking
bandwidth
Virtual Stacking/Clustering of up to 32 units
Supports D-Link Single IP Management
Physical Stacking
Up to 480G stacking bandwidth
Up to 4 switches in a stack
Ring/chain topology support
L2 Features
MAC Address Table
128K entries
Flow Control
802.3x Flow Control when using full-duplex
Back Pressure when using half-duplex
HOL Blocking Prevention
Spanning Tree Protocol
802.1D STP
802.1w RSTP
802.1s MSTP
Supports Root Restriction
Jumbo Frame
Up to 12,000 bytes
Multi-Chassis Link Aggregation Group (MLAG)
802.1AX Link Aggregation
Max. 32 groups per device, 12 ports per group
ERPS (Ethernet Ring Protection Switching)
Port Mirroring
Supports One-to-One, Many-to-One
Supports Mirroring for Tx/Rx/Both
Supports 4 mirroring groups
Flow Mirroring
Supports One-to-One, Many-to-One
Supports Mirroring for Rx
Supports 4 mirroring groups
RSPAN mirroring
Loopback Detection
L2 Protocol Tunneling
L2 Multicast Features
L2 Multicast Filtering
Forwards all groups
Forwards all unregistered groups
Filters all unregistered groups
MLD Snooping
MLD v1/v2 Snooping
Supports 4K groups
Host-based MLD Snooping Fast Leave
IGMP Snooping
IGMP v1/v2/v3 Snooping
Supports 4K IGMP groups
Supports 1K static multicast addresses
GMP per VLAN
Host-based IGMP Snooping Fast Leave
PIM Snooping
L3 Features
ARP
512 Static ARP
Supports Gratuitous ARP
IP Interface
Supports 256 interfaces
Loopback Interface
IPv6 Neighbor Discovery (ND)
DXS-3600-32S
24-Port Top-of-Rack 10 Gigabit Managed Switch
L3 Routing
Static Routing
Max. 1K IPv4 entries
Max. 512 IPv6 entries
Supports secondary route
Supports Equal Cost/Weighted Cost multi-path route
Default Routing
VLAN
802.1Q
802.1v Protocol-based VLAN
Double VLAN (Q-in-Q)
Port-based Q-in-Q
Selective Q-in-Q
Port-based VLAN
MAC-based VLAN
Subnet-based VLAN
Private VLAN
VLAN Group
Max. 4K static VLAN groups
Max. 4094 VIDs
GVRP
Up to 4K dynamic VLANs
VLAN Translation
ISM VLAN (Multicast VLAN)
Private VLAN
Super VLAN
VLAN Trunking
AAA
802.1X Authentication
Supports port-based access control
Supports host-based access control
Dynamic VLAN assignment
Identity-driven policy (VLAN/ACL/QoS) assignment
Web-based Access Control (WAC)
Supports port-based access control
Supports host-based access control
Dynamic VLAN Assignment
Identity-driven Policy (VLAN/ACL/QoS) Assignment
MAC-based Access Control (MAC)
Supports port-based access control
Supports host-based access control
Dynamic VLAN Assignment
Identity-driven Policy (VLAN/ACL/QoS) Assignment
Guest VLAN
Compound Authentication
Microsoft NAP
Supports 802.1X NAP
Supports DHCP NAP
RADIUS and TACACS+ authentication
Authentication Database Failover
Trusted Host
QoS (Quality of Service)
802.1p Quality of Service (QoS)
8 queues per port
Queue handling
Strict
Weighted Round Robin (WRR)
Strict + WRR
Round Robin (RR)
Weighted Deficit Round Robin (WDRR)
QoS based on:
802.1p Priority Queues
DSCP
IP address
MAC address
VLAN
IPv6 Traffic Class
IPv6 Flow Label
TCP/UDP port
Bandwidth Control
Port-based (ingress/egress, min. granularity 8 Kb/s)
Flow-based (ingress/egress, min. granularity 8 Kb/s)
Per queue bandwidth control (min. granularity 8 Kb/s)
Three Color Marker
trTCM
srTCM
Congestion Control
WRED
Support for following actions:
Remark 802.1p priority tag
Remark TOS/DSCP tag
Bandwidth Control
Committed Information Rate (CIR)
Access Control List (ACL)
ACL based on:
802.1p priority
VLAN
MAC address
EtherType
IP address
DSCP
Protocol type
TCP/UDP port number
IPv6 Traffic Class
IPv6 Flow Label
Max. ACL entries:
1792 ingress ACL rules
1K egress ACL rules
3K VLAN Access Maps
Time-based ACL
DXS-3600-32S
24-Port Top-of-Rack 10 Gigabit Managed Switch
Security
Port Security
Supports up to 12K MAC addresses per port/system
Broadcast/Multicast/Unicast Storm Control
D-Link Safeguard Engine
DHCP Server Screening
IP-MAC-Port Binding (IMPB)
Dynamic ARP Inspection
IP Source Guard
DHCP Snooping
IPv6 Snooping
DHCPv6 Guard
IPv6 Route Advertisement (RA) Guard
IPv6 ND Inspection
ARP Spoofing Prevention
Max. 64 entries
Traffic Segmentation
SSL
Supports v3
Supports IPv4/v6 access
Supports TLS 1.2
SSH
Supports v2
Supports IPv4/v6 access
BPDU Attack Protection
DOS Attack Prevention
Management
Web-based GUI
CLI
Telnet Server/Client
TFTP Client
FTP Client
Traffic Monitoring
SNMP (Supports v1/v2c/v3)
SNMP Trap
System Log
DHCP Client
DHCP Server
DHCP Relay options 12, 60, 61, 82
Multiple Image
Multiple Configuration
Flash File System
DNS Resolver
CPU Monitoring
MTU Setting
Traceroute & Ping
LLDP/LLDP-MED
DNS Relay
SMTP
DHCP Auto Configuration
SNTP
RCP (Remote Copy Protocol)
RMONv1
RMONv2
Trusted Host
Password encryption
Debug command
IPv6 Stateless Address Auto-configuration (SLAAC)
D-Link Discover Protocol (DDP)
Enhanced Image (EI) Additional Features
L3 Multicasting
Multicast Table Size: 2K
IGMP v1, v2c, v3
PIM-SM IPv4/IPv6
PIM-DM
Multicast Source Discovery Protocol (MSDP)
PIM-Sparse-Dense Mode
PIM-SSM
DVMRP v3
MLD v1/v2
MPLS
Label Distribution Protocol (LDP)
PHP (Penultimate hop popping )
Virtual Private Wire Service (VPWS)
Virtual Private LAN Service (VPLS)
BGP/MPLS VPN
Multiprotocol extensions for BGP4
Virtual Routing Forwarding (VRF)
LSP MPLS Ping/Traceroute
VCCV Ping/Traceroute
L3 Features
IPv6 Tunneling
Static
ISATAP
GRE
6to4
VRRP v2/v3
L3 VPN
MPLS/BGP L3 VPN
MP-BGP
VRF aware application
L3 Routing
Supports 16K hardware routing entries shared by IPv4/IPv6
Max. 16K IPv4 entries
Max. 8K IPv6 entries
Supports 8K hardware L3 forwarding entries shared by IPv4/IPv6
Max. 8K IPv4 entries
Max. 4K IPv6 entries
RIP
RIP v1/v2
RIPng
OSPF
OSPF v2/v3
OSPF Passive Interface
Stub/NSSA Area
OSPF Equal Cost Route
BGP v4/v4+
IS-IS
IS-ISv6
Route Redistribution
Default Route
Static Route
RIP
OSPF v2/v3
BGP
IP Directed Broadcast
Policy Based Route
Bidirectional Forwarding Detection (BFD)
Supports OSPF
Supports VRRP
VRF Lite
IPv4 Static Route
RIPv1/v2
OSPFv2/v3
BGPv4
IPv4 PIM-DM/SM/SSM
DXS-3600-32S
24-Port Top-of-Rack 10 Gigabit Managed Switch
Standards
MIB & RFC Standards
RFC1213 MIB II
RFC1907 SNMP v2 MIB
RFC5519 IGMP v3 MIB
RFC1724 RIP v2 MIB
RFC2021 RMONv2 MIB
RFC1643, RFC2358, RFC2665 Ether-like MIB
RFC4836 802.3 MAU MIB
RFC4363 802.1p MIB
RFC2618 RADIUS Authentication Client MIB
RFC4292 IP Forwarding Table MIB
RFC2932 IPv4 Multicast Routing MIB
RFC2934 PIM MIB for IPv4
RFC2620 RADIUS Accounting Client MIB
RFC2925 Traceroute MIB
RFC2925 Ping MIB
RFC1850 OSPF MIB
Private MIB
RFC1112, RFC2236, RFC3376, RFC4541 IGMP Snooping
RFC4363 802.1v
RFC2338 VRRP
RFC1058, RFC1388, RFC1723, RFC2453, RFC2080 RIP
RFC1370 Applicability Statement for OSPF
RFC1765 OSPF Database Overflow
RFC2328 OSPF v2
RFC2740 OSPF for IPv6
RFC3101 OSPF Not-So-Stubby Area (NSSA) option; makes
RFC1587 obsolete
RFC2328 makes RFC2178 obsolete
RFC2178 makes RFC1583 obsolete
RFC1771, RFC1997, RFC2439, RFC2796, RFC2842, RFC2918 BGP
RFC3973 PIM-DM
RFC5059 PIM-SM
RFC3569, RFC4601, RFC4608, RFC4607, RFC4604 PIM SSM
RFC3376 IGMP
RFC2475 Priority Queue Mapping
RFC2475, RFC2598 Class of Service (CoS)
RFC2597, RFC2598 QoS Flow Actions
RFC2697, RFC2698 Three Color Marker, RFC2093, RFC2904,
RFC2095, RFC2906 AAA
RFC1321, RFC2144, RFC2313, RFC2420, RFC2841, RFC3394
Encryption
RFC2289 One-Time
RFC3580 802.1X
RFC2866 RADIUS Accounting
RFC2138, RFC2139, RFC2865, RFC2618 RADIUS Author. for
Management Access
RFC1492 TACACS+ Auth. for Management Access
RFC2068, RFC2616 Web-based GUI
RFC854 Telnet Server
RFC783, RFC1350 TFTP Client
RFC1157, RFC1901, RFC1908, RFC2570, RFC2574, RFC2575,
RFC3411-17 SNMP
RFC3164 System Log
RFC2819 RMON v1
RFC951, RFC1542, RFC2131, RFC3046 BootP/DHCP Client
RFC1769 Time Setting
RFC2131 DHCP Server
RFC1191 MTU Setting
RFC1065, RFC1066, RFC1155, RFC1156, RFC2578 MIB Structure
RFC1215 MIB Traps Convention
RFC4188 Bridge MIB
RFC1157, RFC2571-2576, RFC3411-3415, RFC3418 SNMP MIB
RFC1901-1908,RFC1442, RFC2578 SNMP v2 MIB
RFC2737 Entity MIB
RFC768 UDP
RFC791 IP
RFC792 ICMP
RFC793 TCP
RFC826 ARP
RFC1338, RFC1519 CIDR
RFC2716, RFC3748 EAP
RFC2571, RFC2572, RFC2573, RFC2574 SNMP

Núm. artículo: DXS-3600-32S/SI

EAN: 0790069369285

En Bixoto compensamos totalmente la huella climática para este producto de la mano de HundredTrees.

El cálculo incluye materia prima, producción y transporte. Cada vez que compres, se genera además un certificado que confirma la compensación llevada a cabo por tu pedido. Encuentra más información sobre las compensaciones de Bixoto aquí.

El envío para pedidos con importes menores a 69 € tiene un coste de 3,99€.
Por compras a partir de 69,00€ el envío es gratuito.

Recuerda que solo ofrecemos el servicio de envío a la península de España y las Islas Baleares. Si vemos que, se ha realizado una compra fuera de la península, esta no podrá ejecutarse y será cancelada.

x3 x6 x12

Financia tu compra con total comodidad

En Bixoto queremos que disfrutes de tus productos sin preocuparte por el pago.

Por eso, junto a nuestros colaboradores PayPal y Sequra, te ofrecemos opciones de financiación flexibles y transparentes, un sistema de pago pensado para ti.

Hasta 3 meses sin intereses, cortesía de Bixoto.
También puedes elegir el pago a 6 o 12 meses con condiciones muy competitivas.

Rápido, sencillo y 100 % seguro. Explora las opciones que mejor se adapten a ti o contáctanos si necesitas ayuda. Estamos aquí para hacerte la compra más fácil.
