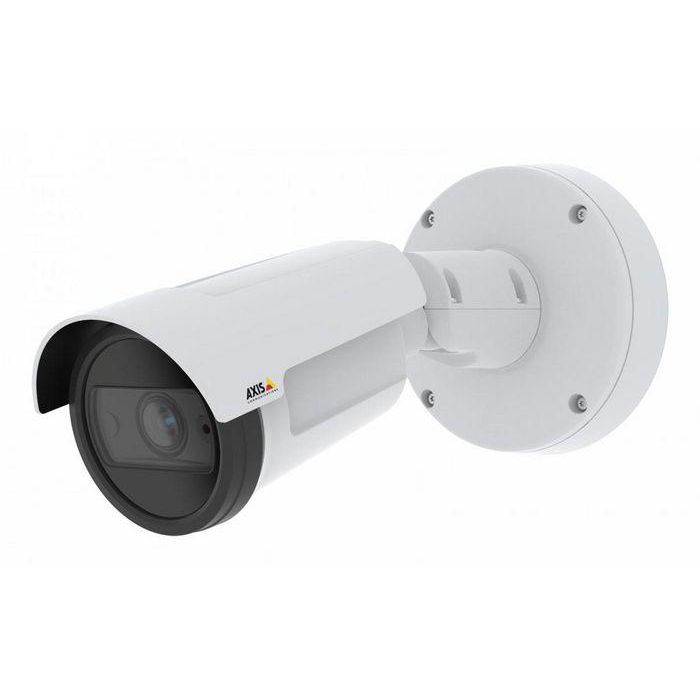

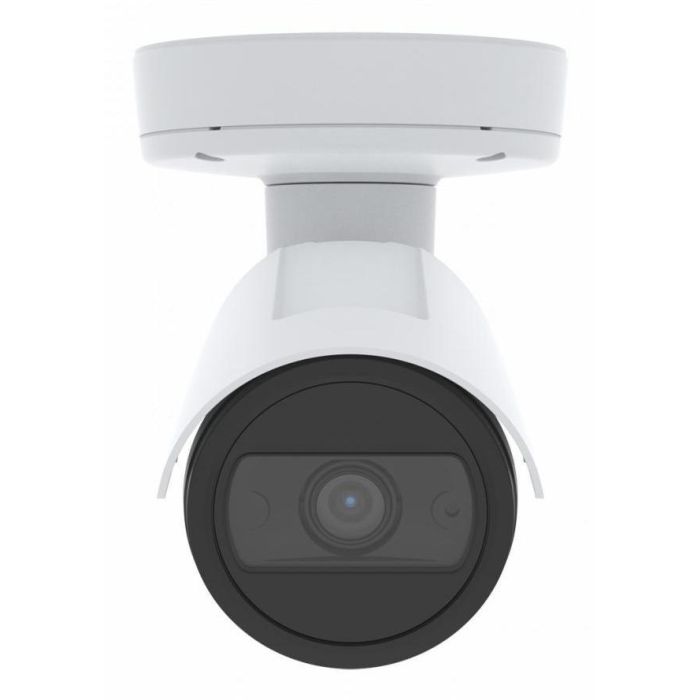

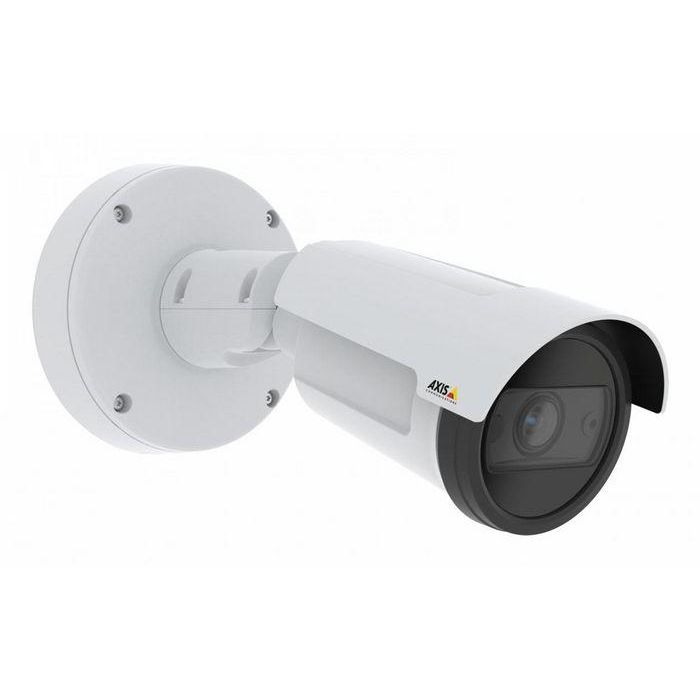

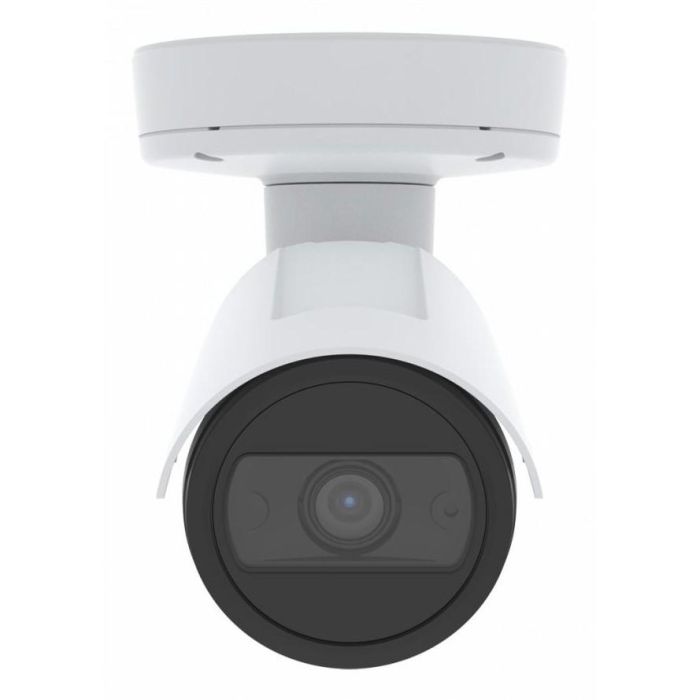

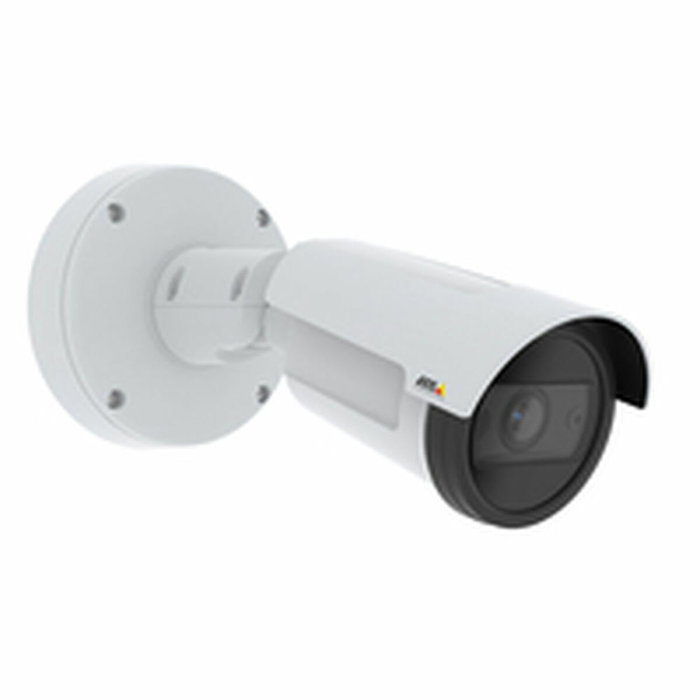

Axis 01997-001, IP security camera, Indoor & outdoor, Wired, Digital PTZ, 120 dB, 55032 Class A, EN 50121-4, IEC 62236-4, EN 55035, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC...

Performance
Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
PTZ control: Yes
PTZ modes: Digital PTZ
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Alarm input/output: Yes
Dynamic range: 120 dB
Certification: 55032 Class A, EN 50121-4, IEC 62236-4, EN 55035, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IS 13252, IEC 62471, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), NIST SP500-267
Design
Form factor: Bullet
Mounting type: Wall
Product colour: Black, White
Housing material: Aluminium
International Protection (IP) code: IP66, IP67
IK code: IK10
Fog proof: Yes
Camera
Camera pan control: Yes
Camera tilt control: Yes
Minimum illumination: 0.01 lx
Lens viewing angle, horizontal: 114 - 37°
Lens viewing angle, vertical: 58 - 21°
Camera shutter speed: 1/66500 - 2 s
Image sensor
Number of sensors: 1
Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
Progressive scan: Yes
Sensor type: CMOS
Lens system
Zoom capability: Yes
Optical zoom: 3x
Number of lenses: 1
Focal length range: 3 - 9 mm
Maximum aperture number: 3.3
Minimum aperture number: 1.6
Night vision
Night vision: Yes
Night vision distance: 40 m
LED type: IR
Infra-red wavelength: 850 nm
Video
Maximum resolution: 1920 x 1080 pixels
Total megapixels: 2 MP
Video compression formats: H.264, H.265, M-JPEG, MPEG4
Supported graphics resolutions: 160 x 90, 1920 x 1080 (HD 1080)
Video recording: Yes
Frame rate: 60 fps
Video streaming: Yes
Image quality adjustment: Brightness, Contrast, Saturation, Sharpness
Privacy masking: Yes
Text caption overlay: Yes
Bit rate control: Variable Bit Rate (VBR)
Audio
Audio system: 2-way
Audio formats supported: AAC-LC, ADPCM, LPCM, PCM
Sample rate: 48 kHz
Audio detection: Yes
Network
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Networking standards: IEEE 802.3af, IEEE 802.3at
Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT
Quality of Service (QoS) support: Yes
Streaming method: Multicast
Storage
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory: 512 MB
RAM capacity: 1024 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Terminal block port: Yes
Security
Alarm input channels: 1
Alarm output channels: 1
Password protection: Yes
Video motion detection: Yes
Active tampering alarm: Yes
IP address filtering: Yes
Security algorithms: 802.1x RADIUS
HTTPS encryption: Yes
Alert notification type: E-mail
Power
Power source type: PoE
Power consumption (typical): 7.7 W
Power consumption (max): 12.95 W
Operational conditions
Operating temperature (T-T): -40 - 60 °C
Storage temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 10 - 100%
Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
Diameter: 13.2 cm
Length: 260 mm
Weight: 1 kg
Packaging content
Number of cameras: 1
Mounting brackets included: Yes
Manual: Yes
Logistics data
Harmonized System (HS) code: 85258900
