Experience seamless connectivity and control with this HDMI 2.0 2x1 Presentation Switcher, designed specifically for modern meeting rooms. Part of our "-MME" series, which stands for "Meetings Made Easy", this device is engineered to simplify your video conferencing and presentation setup.


Key Features

4K Ultra HD Video Support: Delivers stunning video quality with support for resolutions up to 4Kx2K@60Hz (4:4:4 8-bit), as well as 1080p and 3D formats.

Smart EDID Management: Easily optimize device compatibility with a built-in EDID setting, configurable via the 4-pin DIP switch on the front panel.

High-Quality Audio Handling: Supports stereo and multichannel audio through HDMI inputs.

Audio De-embedding: Outputs balanced analog audio simultaneously alongside HDMI, ensuring high-quality sound for all connected devices.


USB Hub Functionality

Type-B USB Port: Connect to a host device for easy integration.

Two Type-A USB Ports: Connect HID devices such as cameras, microphones, keyboards, or other peripherals.


Advanced Control Options

Auto-Switching Mode: Automatically detects and prioritizes active input sources. When the active source is disconnected, the switcher defaults to the next available input.

Manual Control: Control switching with front panel buttons or via RS232 commands.

CEC Control: Simplify device management by controlling display devices through the switcher's front panel or RS232 CEC commands.


Broad Compatibility

Supports multiple formats: Including DisplayLink, DP Alt Mode, and DisplayPort, making it compatible with a wide range of devices and setups.

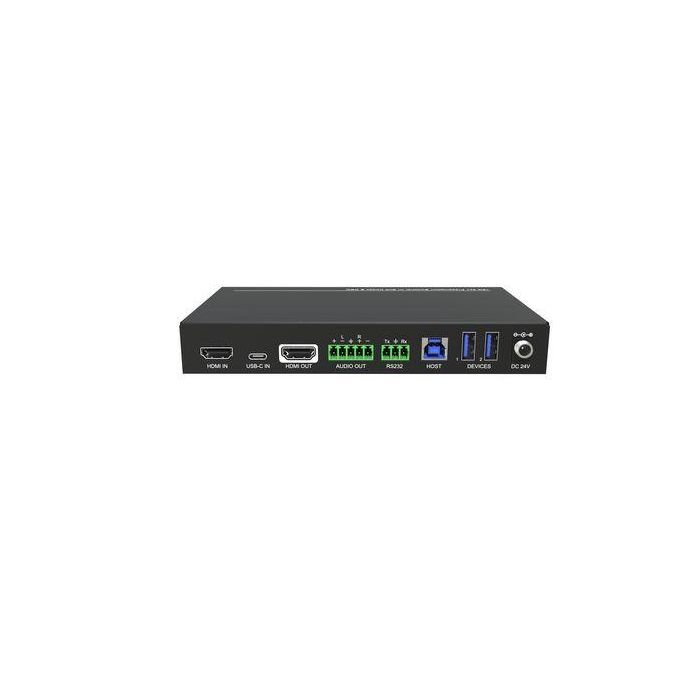

Port Configuration:
2 Input Ports: One HDMI input and one USB-C input for flexible connectivity to laptops, media players, and other devices.

1 HDMI Output Port: Deliver crystal-clear visuals to a connected display or projector.

3 USB Ports: One USB Type-B port for host connection and two USB Type-A ports for connecting peripherals like cameras, microphones, or keyboards.

1 Balanced Analog Audio Output: De-embed audio for high-quality external sound systems.

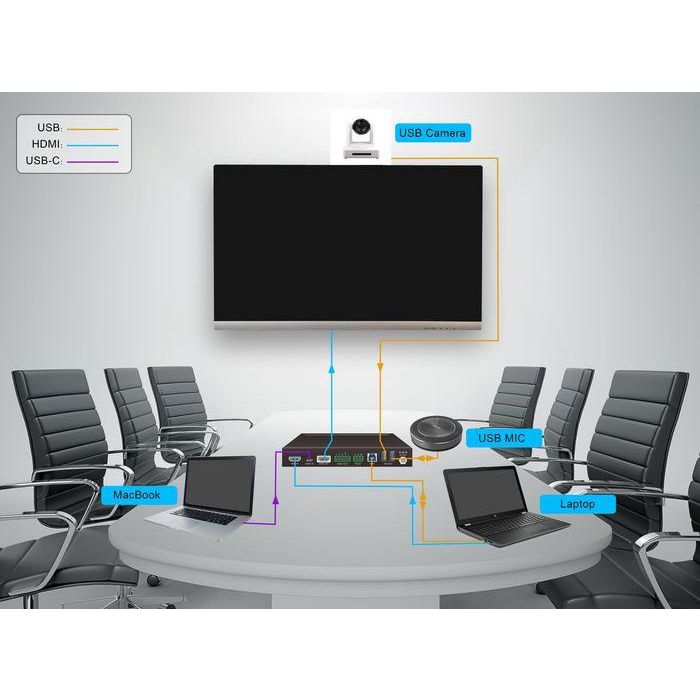

Typical application:
This robust switcher is the ideal solution for meeting rooms, classrooms, and conference setups where simplicity, performance, and versatility are key. Ensure smooth, professional presentations and video conferencing every time!

• 18G 2x1 auto switcher with HDMI and USB-C inputs
• USB3.0 data rate up to 2,8Gbit/s and 1 Amp power
• Input trigger function that can turn on/off 3rd party device via CEC or RS232 command
• Provides charging on USB-C port up to 40W
• Supports HDMI 2.0, 4Kx2K@60Hz 4:4:4, HDR 10, Dolby Vision, HDCP 2.2
• Controllable via front panel buttons and RS232
• w/soft Codec & CEC
