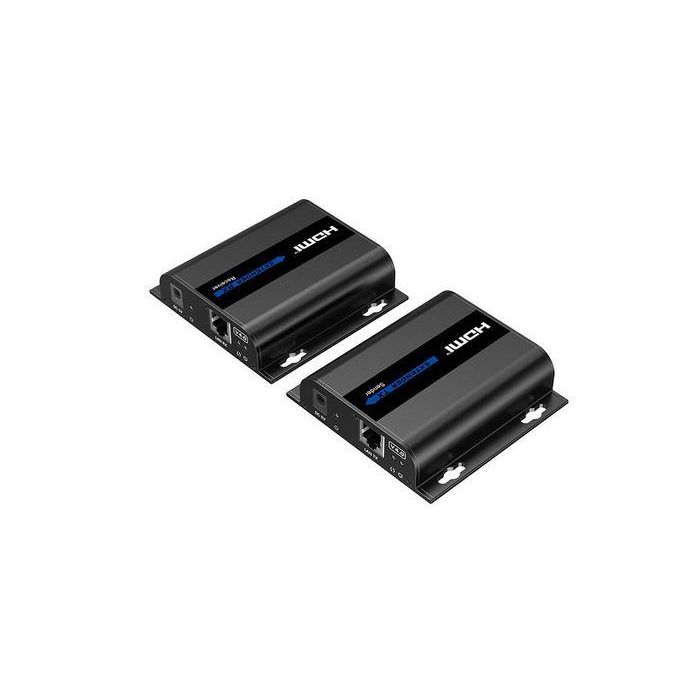

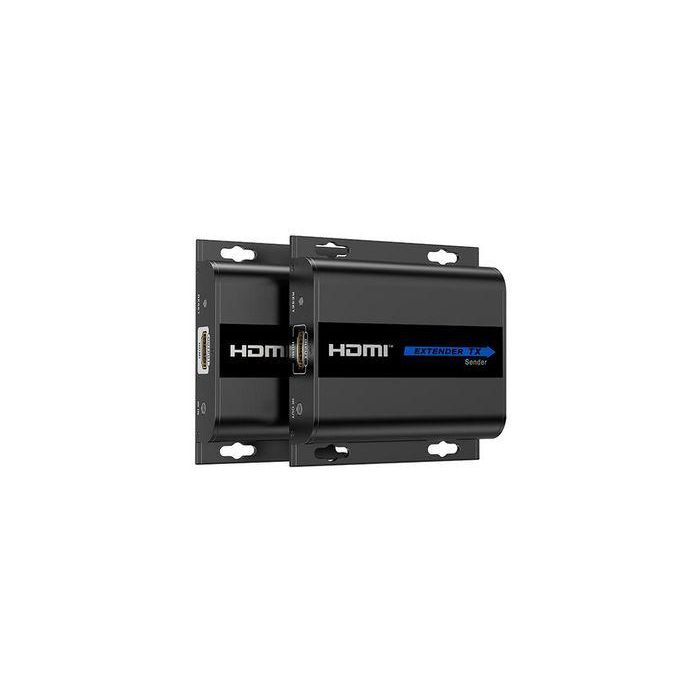

Extender Kit with IR receiver Max resolution 1080P@60hz
It can extend video/audio/IR with a resolution of 1080P@60 Hz up to 120 meters via single network cable (Cat 5e/6)


Up to 253 receivers can be connected to one transmitter using Gbit switch. One receiver will occupy 18Mbit bandwith.


Note that this product is not compatible with HDBaseT receivers


Typical installation:

It can be installed anywhere to extend HDMI signal up to 120m including AV/IR control signals

E.g. Private installation, Info screens in Shops or offices


Function:

HDMI extender

Point to point,Tx to Rx for 120m 1080P@60Hz

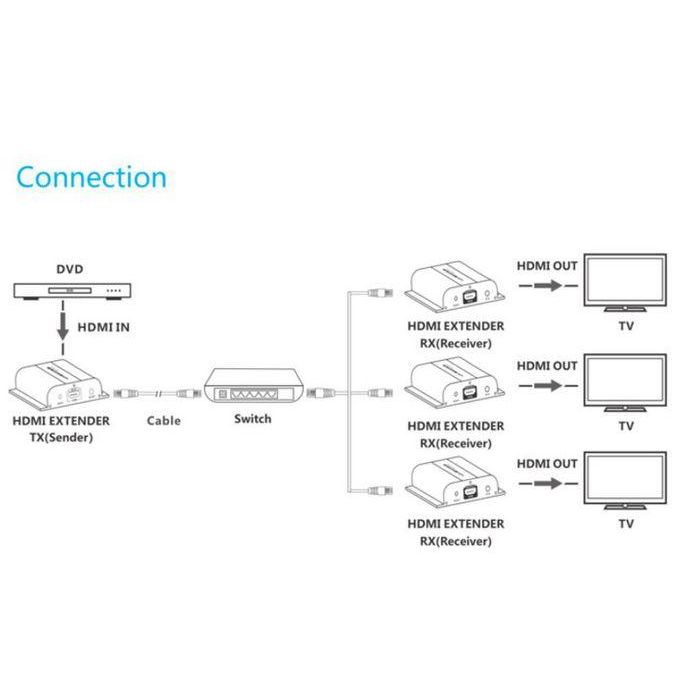

Signal can be spitted with a GBit Switch to several receivers

One receiver device only occupy 18M bandwidth.


Key features:



Super cost-effective HDMI extender over IP network

TX: 192.168.1.210

RX: 192.168.1.220

• Supports Full HD resolution 1080P@60 Hz
• Maximum transmission distance 120m
• Supports IR control (IR receiver and transmitter included)
