The Best Industrial Grade Data Link and Power Sourcing for Non-PoE Solution

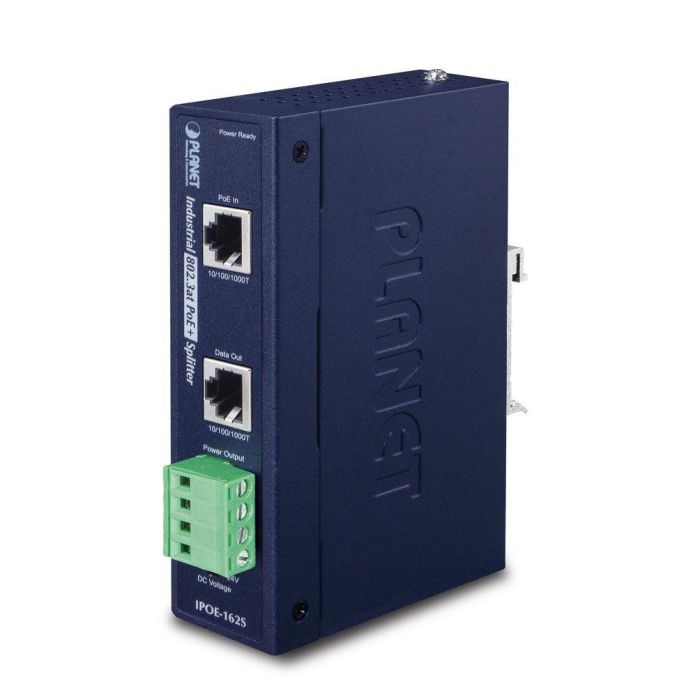

Planet IPOE-162S is an Industrial High Power PoE Splitter that can split the 48~56V DC over the existing Ethernet cable into the selectable 12V or 24V DC power output. It supports passive 10/100/1000Mbps Ethernet connection ability and complies with IEEE 802.3at High Power over Ethernet standard that supports up to 25-watt output power to powered device. To fulfill the growing industrial applications, the IPOE-162S is designed to work under the operating temperature range from -40 to 75 degrees C (-40 to 167 degrees F). The IPOE-162S is an ideal solution to transferring power to traditional network device with high power demand directly without the need to install additional power outlets and electrical cabling in the industrial environment.


Innovative, Selectable DC Power Output Voltage

Via the innovative 12 volt / 24 volt DIP switch on the front panel, the IPOE-162S can supply either 24V DC power to industrial equipment or 12V DC output to the common network devices, such as wireless access point or IP camera. It highly increases the flexibility of the product applications.


Dual Power Output Capability

By supporting up to 25-watt 802.3at Power over Ethernet cable, the IPOE-162S can satisfy not only single power-hungry equipment but also able to share the 25-watt output power to two non-PoE Ethernet devices simultaneously through a 4-pin terminal block. For example, the two power output can be applied as shown below to completely solve the need of electric source:
　　■ IP camera (Power 1) + Outdoor housing with fan and heater (Power 2)
　　■ IP camera (Power 1) + Pan & Tilt motor (Power 2)
　　■ Analog camera (Power 1) + IP video server (Power 2)


Environmentally Hardened Design

With compact, slim type IP30 industrial case protection, the space saving Industrial High Power PoE Splitter IPOE-162S can be placed in almost any difficult environment. It allows either DIN rail or wall mounting for efficient use of cabinet space. Being able to operate under the temperature range from -40 to 75 degrees C, the IPOE-162S is the ideal product for co-working with Industrial High Power Injector which can feed the power to non-PoE devices up to 100 meters (328 feet) away in those harsh environments.


Plug and Play, Easy Cabling Installation

With IEEE 802.3at Gigabit High Power over Ethernet devices installed, the system administrator only has to use one single RJ-45 Ethernet cable to carry both power and data to each device. Besides, connecting through the Industrial High Power PoE Injector with the IPOE-162S, you can also have benefits including cost saving, easy networking planning and high network reliability.


Learn more: https://www.planet.com.tw/en/product/ipoe-162s-v2

• Interface
• －2-port RJ-45 interfaces
• ．1-port PoE Power+ Data input
• ．1-port Data output
• ．2 DC out (4-pin Terminal Block)
• Power over Ethernet Splitter
• －Complies with IEEE 802.3at High Power over Ethernet, PD
• －Splits the 48~56V DC power over RJ-45 Ethernet cable into DC 12V / 24V output
• －Auto-detects of IEEE 802.3at PoE equipment, protecting devices from being damaged by incorrect installation
• －Two different adjustable output voltage options (12V / 2A, 24V / 1A) to fit various devices
• －Distance up to 100 meters
• Industrial Case / Installation
• －IP30 metal case protection
• －DIN rail and wall mount design
• －Supports EFT 6000V DC protection for power line
• －Supports 6000V DC Ethernet ESD protection
• －-40 to 75 degrees C operating temperature
• Standard Compliance
• －IEEE 802.3 10Base-T
• －IEEE 802.3u 100Base-TX
• －IEEE 802.3ab 1000Base-T
• －IEEE 802.3at High Power over Ethernet standard
• －FCC Part 15 Class A, CE
