The Ernitec 12-port 1000Mbps Industrial Managed L2 PoE Switch is designed for high-performance networking in industrial environments. Here are some key features:

Gigabit Ethernet Ports: Twelve 10/100/1000 Mbps PoE ports for fast data transfer.

PoE Support: Provides Power over Ethernet (PoE) to power devices like IP cameras and wireless access points directly through the Ethernet cables.

Advanced Management: Supports Layer 2 management features, including VLAN, QoS, and IGMP snooping for efficient network management.

Rugged Design: Built to withstand harsh conditions with a robust housing and wide operating temperature range.

Flexible Network Expansion: Includes 4 Gigabit SFP uplink ports for easy network expansion.

This switch is ideal for applications requiring reliable and high-performance network connectivity in challenging environments.

The device supports IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z/ab, IEEE802.1Q, IEEE802.1p, and IEEE802.1d/w standards.

It features PoE power management and a PoE Watchdog based on data flow detection. It supports IEEE802.3af (15.4W), IEEE802.3at (30W), and IEEE802.3bt (90W) standards.

Ports 1-2 are capable of supplying 90W of power.

The device supports SNMP v1/v2/v3 for simple network management. It also supports IGMP Snooping, static multicast filtering, and MLD Snooping.

For enhanced network security, it supports 802.1x port authentication and AAA authentication.

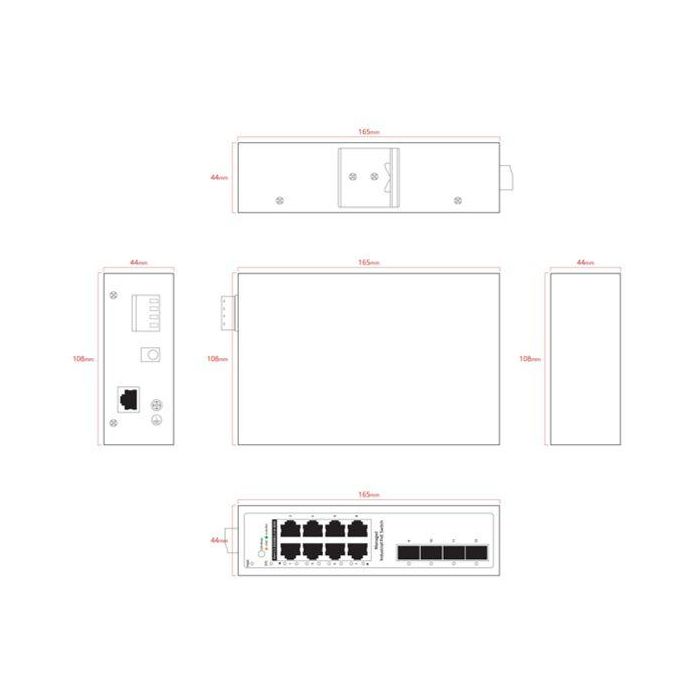

Management is supported via web, Telnet, CLI, and SSH. The device has an IP40 protection level, a high-strength shell, and DIN35 rail installation.

It is designed to industrial grade 4 standards, with an operating temperature range from -40 to 75°C. Additionally, it supports redundant power supply connections and protection against reverse connections.
